Rocker Switches

ROCKERMEC


The Rockermec™ solution consists of two Multimec® 5E switches, a sealing that also provides functionality and a new rocker cap called 10A.
Rockermec is a compact solution for your high design-in requirements: it has small dimensions, aesthetic design and it is sealed to IP67.
Illumination is provided with LEDs on the PCB so you can pick the exact colors you want for your application, even RGB. Furthermore, solution is modular and therefore provides design consistency when multiple rockers are required with different need for cap print, color, and switch actuation force.

Specifications:

  • 10.6 x 28 mm
  • h=12.15
  • Panel sealed to IP67
  • Lifetime (Sealing): 100,000 cycles
  • Standard cap colors: black and frosted white
  • Standard legend options available

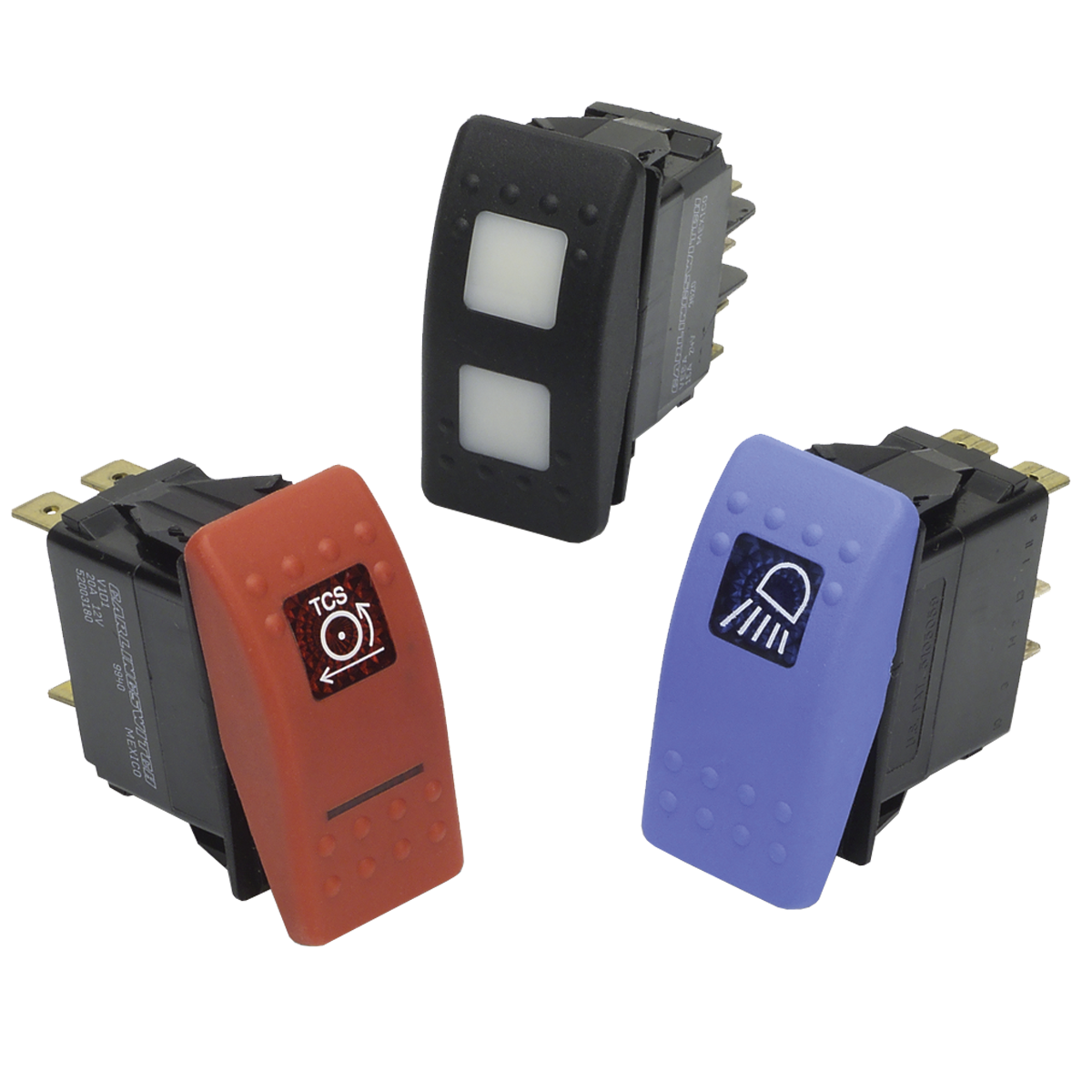

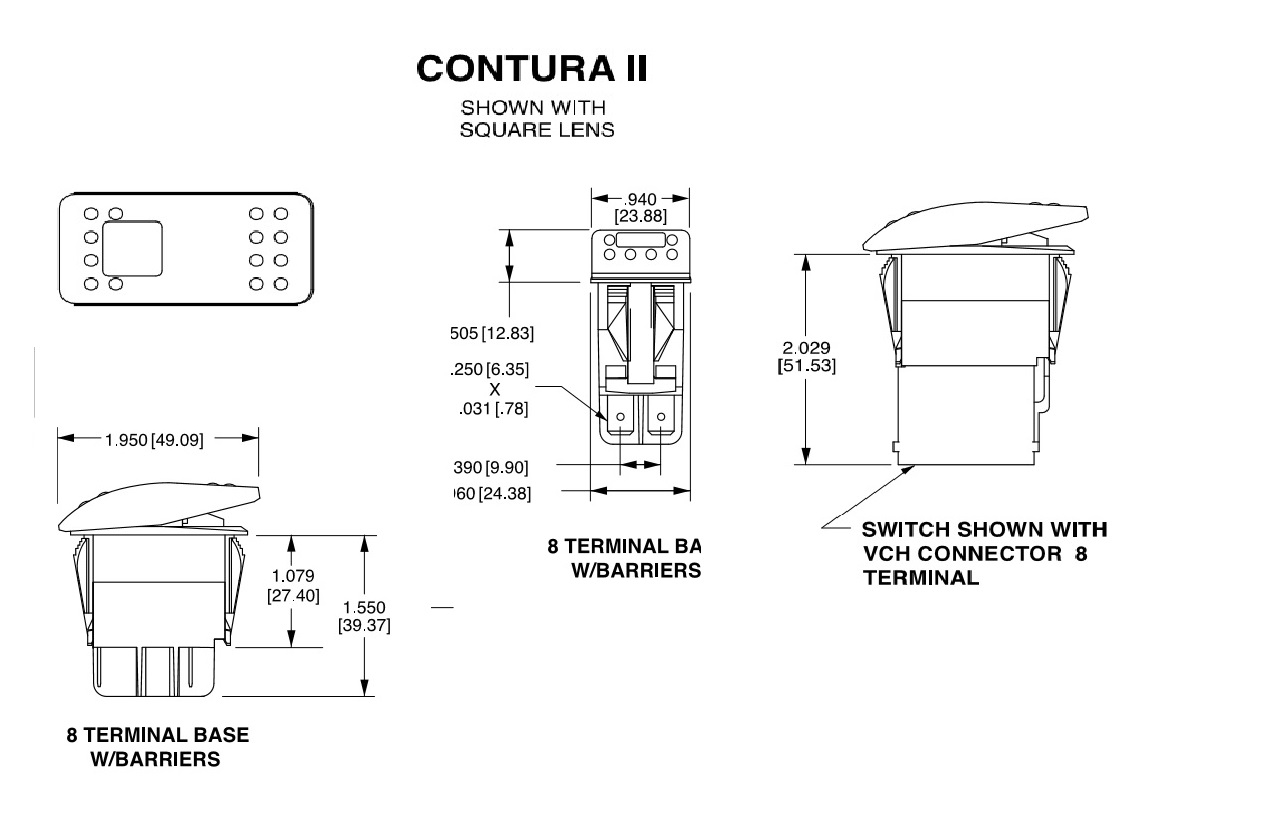

CONTURA II

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

The Contura II styles feature square and bar lens options and are constructed of thermoplastic polycarbonate with hard nylon or “soft touch” elastomer overlay. The Contura II features 2 rows of raised bumps.

FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Convex rocker with bumped finger traction
(ON)-NONE-OFF 15A 24V Convex rocker with ridged finger traction
ON-NONE-(OFF) 20A 18V Illuminated convex rocker with square lens
ON-NONE-ON 20A 12V Illuminated convex rocker with bar lens(es)
ON-NONE-(ON) 20A 6V Illuminated convex rocker with combination square and bar lenses
ON-OFF-ON 20A 3V "Soft Touch" versions of rockers listed above
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Locking Rocker
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85



Variety of Special Circuits available
Custom colors and legends available
Special circuits

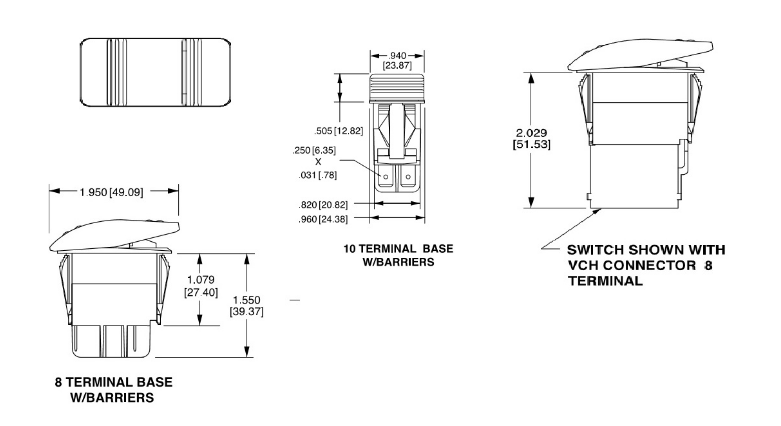

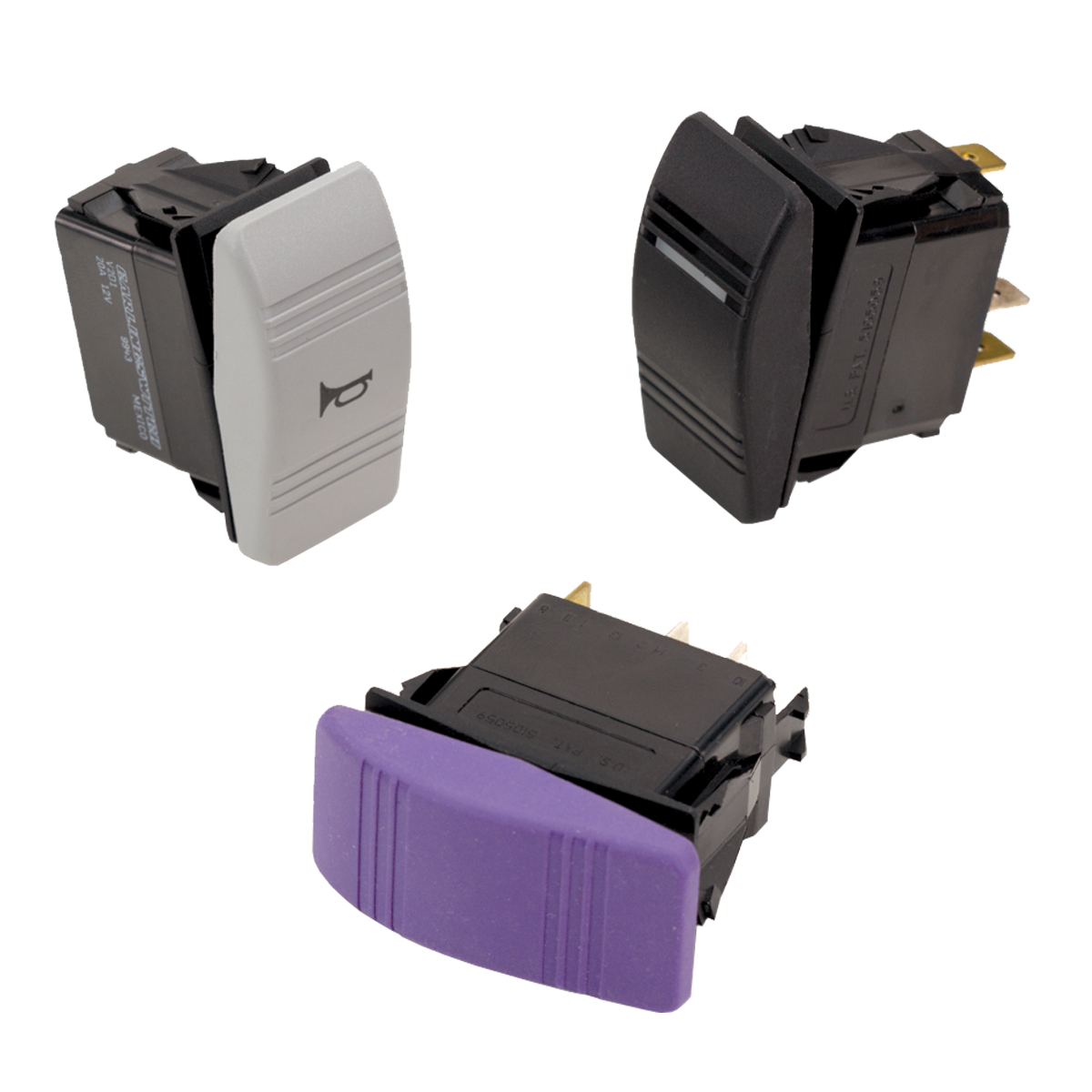

CONTURA III

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

The Contura  III styles feature square and bar lens options and are constructed of thermoplastic polycarbonate with hard nylon or “soft touch” elastomer overlay. The Contura III features 3 rows of ridged finger traction on top and bottom of the rocker.


FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Convex rocker with bumped finger traction
(ON)-NONE-OFF 15A 24V Convex rocker with ridged finger traction
ON-NONE-(OFF) 20A 18V Illuminated convex rocker with square lens
ON-NONE-ON 20A 12V Illuminated convex rocker with bar lens(es)
ON-NONE-(ON) 20A 6V Illuminated convex rocker with combination square and bar lenses
ON-OFF-ON 20A 3V "Soft Touch" versions of rockers listed above
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Locking Rocker
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85

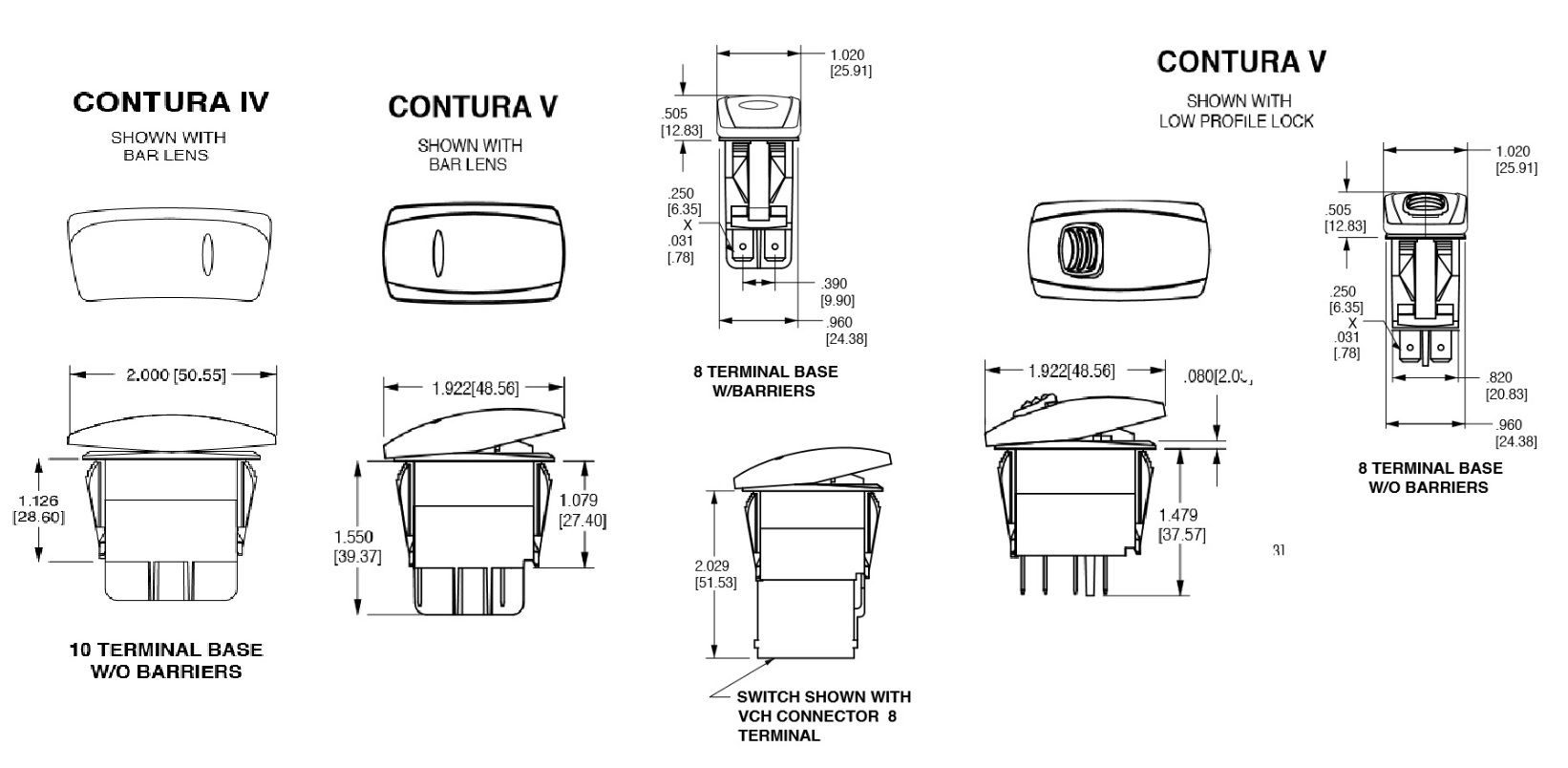

CONTURA IV & V

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C

The Contura V features a symmetrical curve and can be mounted alone, in groups, or between two Contura IVs. Both models are available with oval or elliptical lens and with optional laser etching. The Contura IV features an asymmetrical “orange wedge” shaped actuator that can be mounted as half-moon, triangle, pyramid or stack.



FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Asymmetrical curved rocker with oval lens (es)
(ON)-NONE-OFF 15A 24V Asymmetrical curved rocker with bar lens (es)
ON-NONE-(OFF) 20A 18V Asymmetrical curved rocker with combination oval and bar lenses.
ON-NONE-ON 20A 12V Asymmetrical curved locking rocker with or without lens
Symmetrical curved rocker with oval lens (es)
ON-NONE-(ON) 20A 6V Symmetrical curved rocker with bar lens (es)
ON-OFF-ON 20A 3V Symmetrical curved rocker with combination oval and bar lenses.
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Symmetrical soft rounded rocker with oval lens (es)
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85  Symmetrical soft rounded rocker with combination oval and rounded bar lenses.

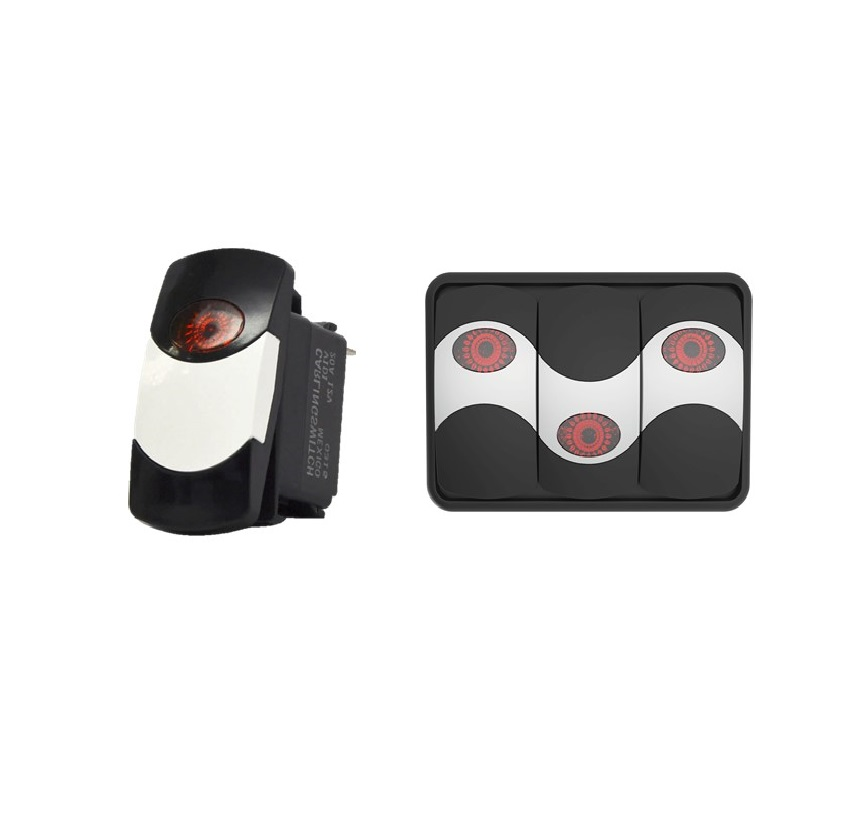

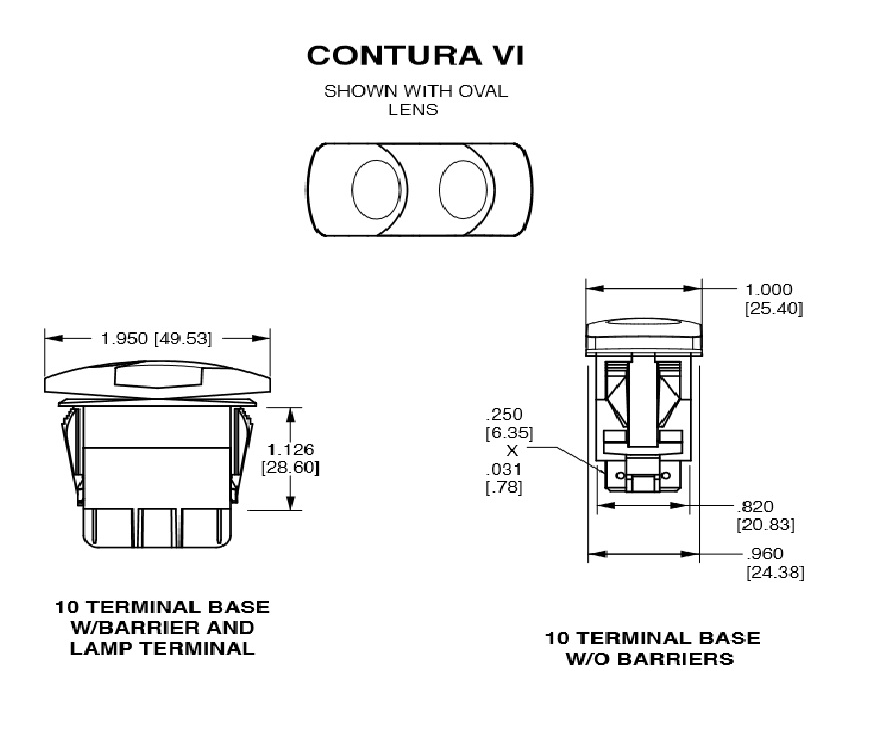

CONTURA VI

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

The Contura VI features a unique design that creates a wave when used in a row of switches making this style ideal for marine panels. Replaceable wave inserts are available in black, white, chrome plated, chrome painted and nickel plated. Available with oval and elliptical lens options.



FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Asymmetrical curved rocker with oval lens (es)
(ON)-NONE-OFF 15A 24V Asymmetrical curved rocker with bar lens (es)
ON-NONE-(OFF) 20A 18V Asymmetrical curved rocker with combination oval and bar lenses.
ON-NONE-ON 20A 12V Symmetrical curved rocker with oval lens(es) and high or low wave insert
ON-NONE-(ON) 20A 6V Symmetrical curved rocker with oval lens(es) and high or low wave insert
ON-OFF-ON 20A 3V Symmetrical curved rocker with bar lens(es) and high or low wave insert
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Symmetrical curved rocker with combination oval and bar lens(es) and high or low wave insert
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85

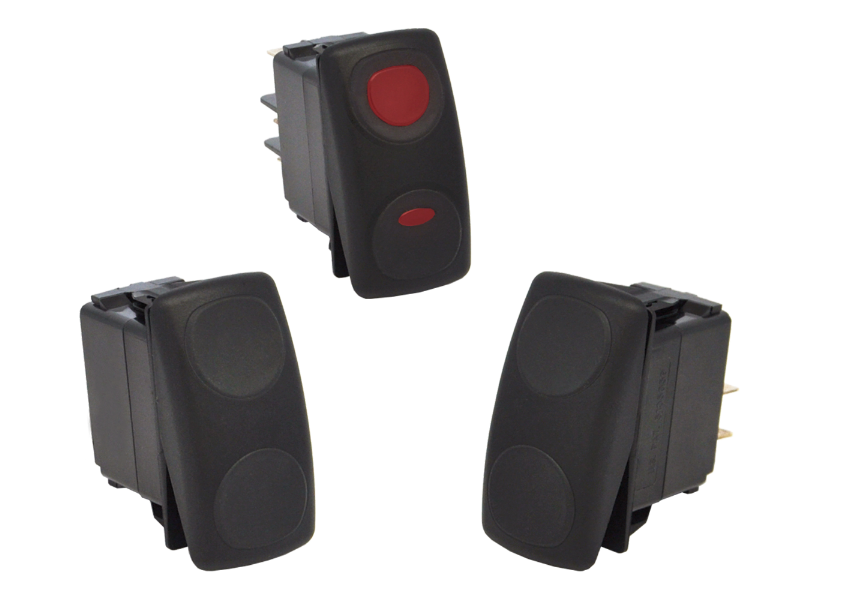

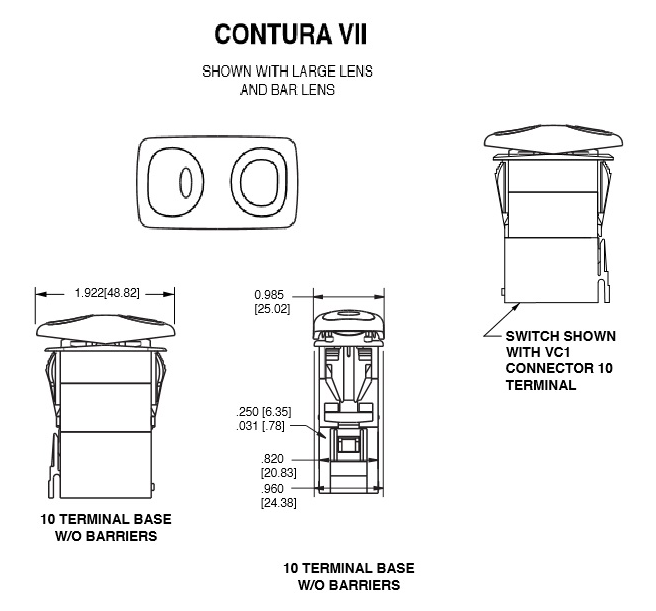

CONTURA VII

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

The Contura VII features gently curved corners and edges with a soft textured embossed circular pads at top and bottom of actuator for intuitive feel.



FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Asymmetrical curved rocker with oval lens (es)
(ON)-NONE-OFF 15A 24V Asymmetrical curved rocker with bar lens (es)
ON-NONE-(OFF) 20A 18V Asymmetrical curved rocker with combination oval and bar lenses.
ON-NONE-ON 20A 12V Asymmetrical curved locking rocker with or without lens
Symmetrical curved rocker with oval lens (es)
ON-NONE-(ON) 20A 6V Symmetrical curved rocker with bar lens (es)
ON-OFF-ON 20A 3V Symmetrical curved rocker with combination oval and bar lenses.
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Symmetrical soft rounded rocker with oval lens (es)
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85 Symmetrical soft rounded rocker with combination oval and rounded bar lenses.

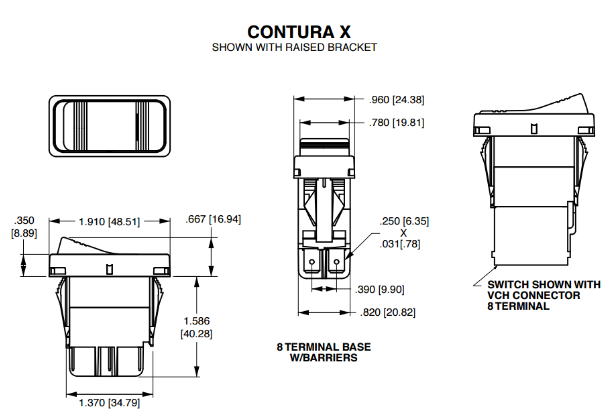

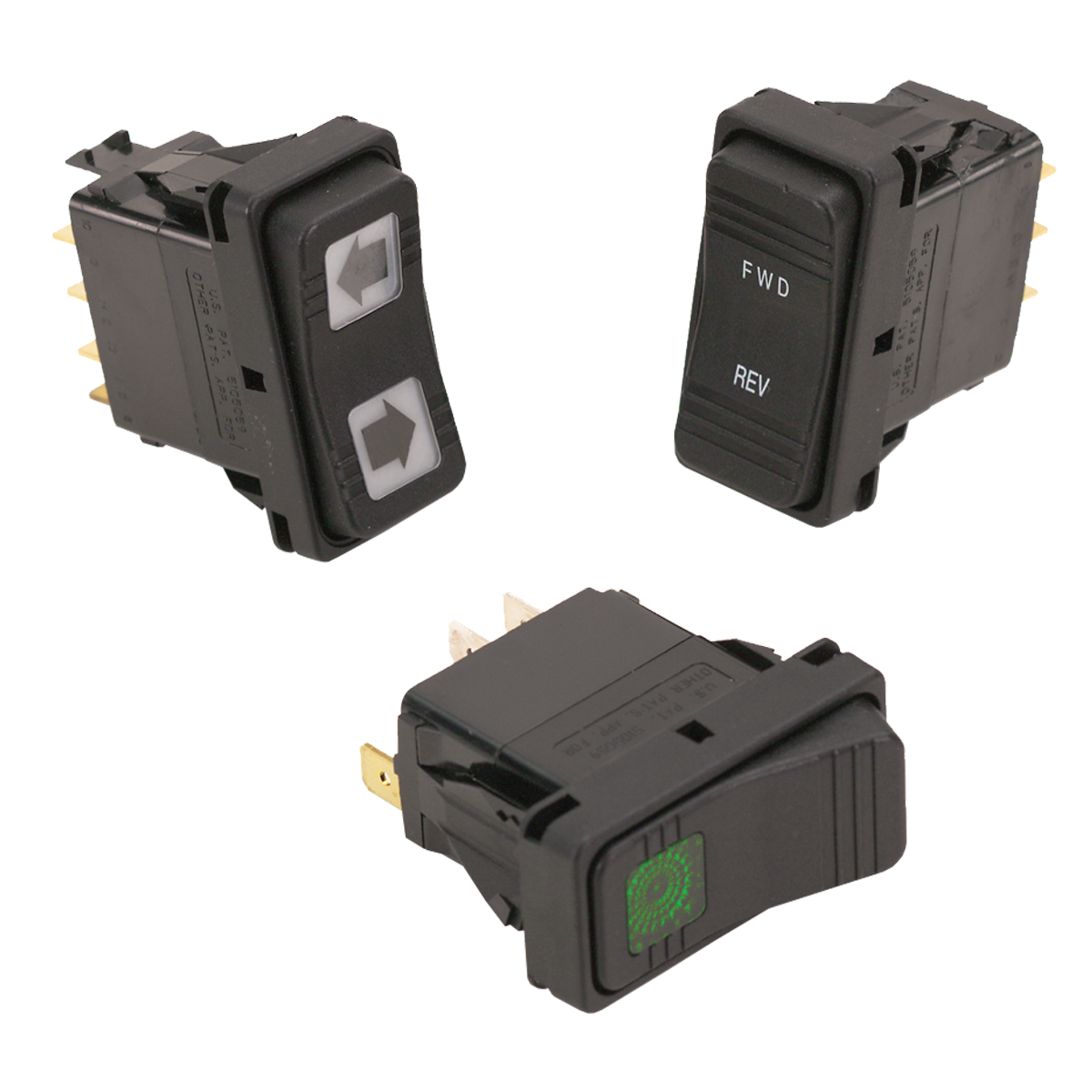

CONTURA X

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

The Contura XThe raised bracket/bezel on the Contura X helps prevent inadvertent actuation of the rocker, as well as preventing debris from being trapped under the actuator. This curved rocker style is available with a variety of lenses and legends.
For increased durability of imprinted lens symbols, quare lenses are offered in 1-piece or 2-piece constructions.



FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Concave or convex rocker with grooved finger traction
(ON)-NONE-OFF 15A 24V Concave or convex with smooth surface
ON-NONE-(OFF) 20A 18V Illuminated concave or convex rocker with square lens(es)
ON-NONE-ON 20A 12V Illuminated concave or convex rocker with bar lens(es)
ON-NONE-(ON) 20A 6V Illuminated concave or convex rocker with combination square and bar lenses
ON-OFF-ON 20A 3V Locking Rocker
Paddle
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Illuminated paddle
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85

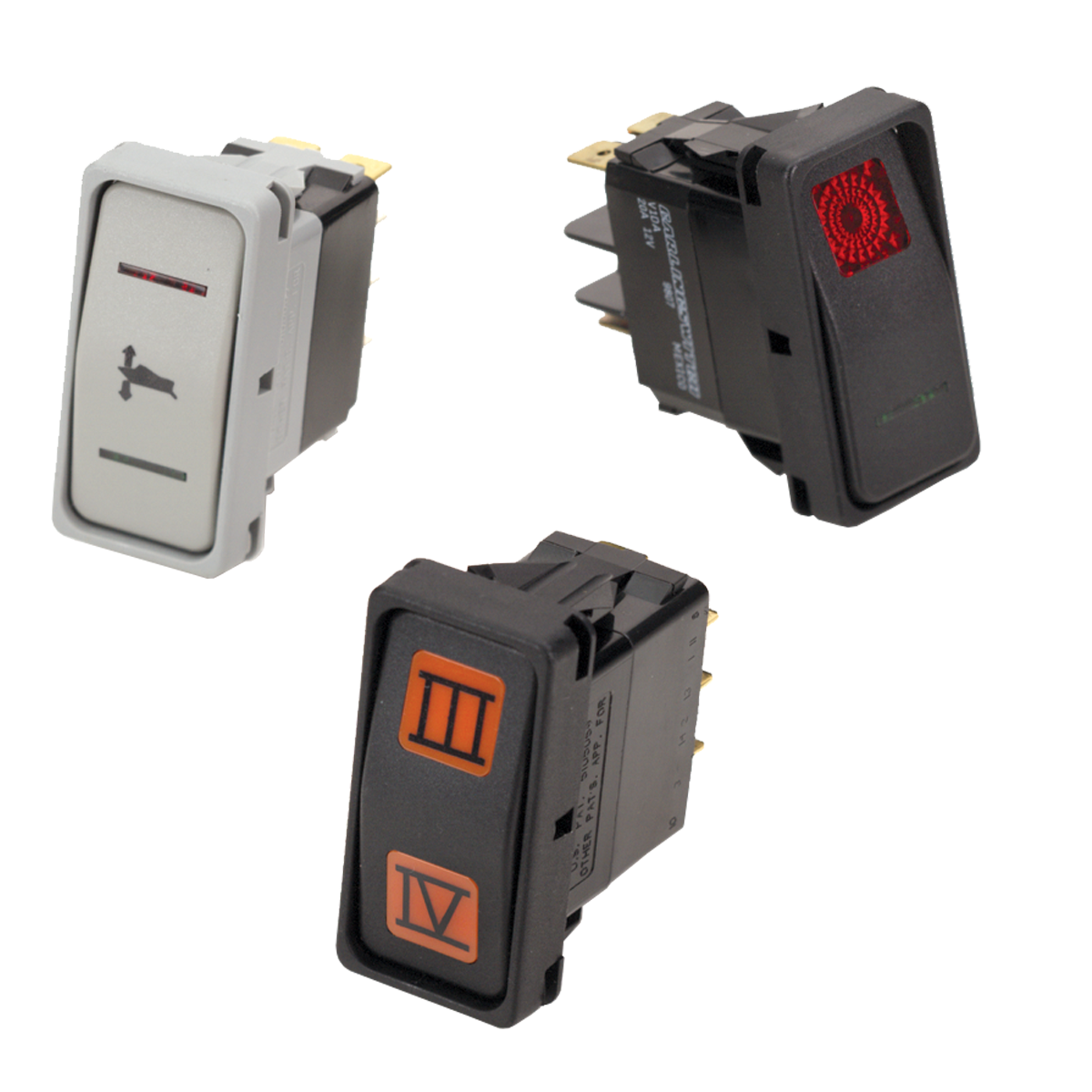

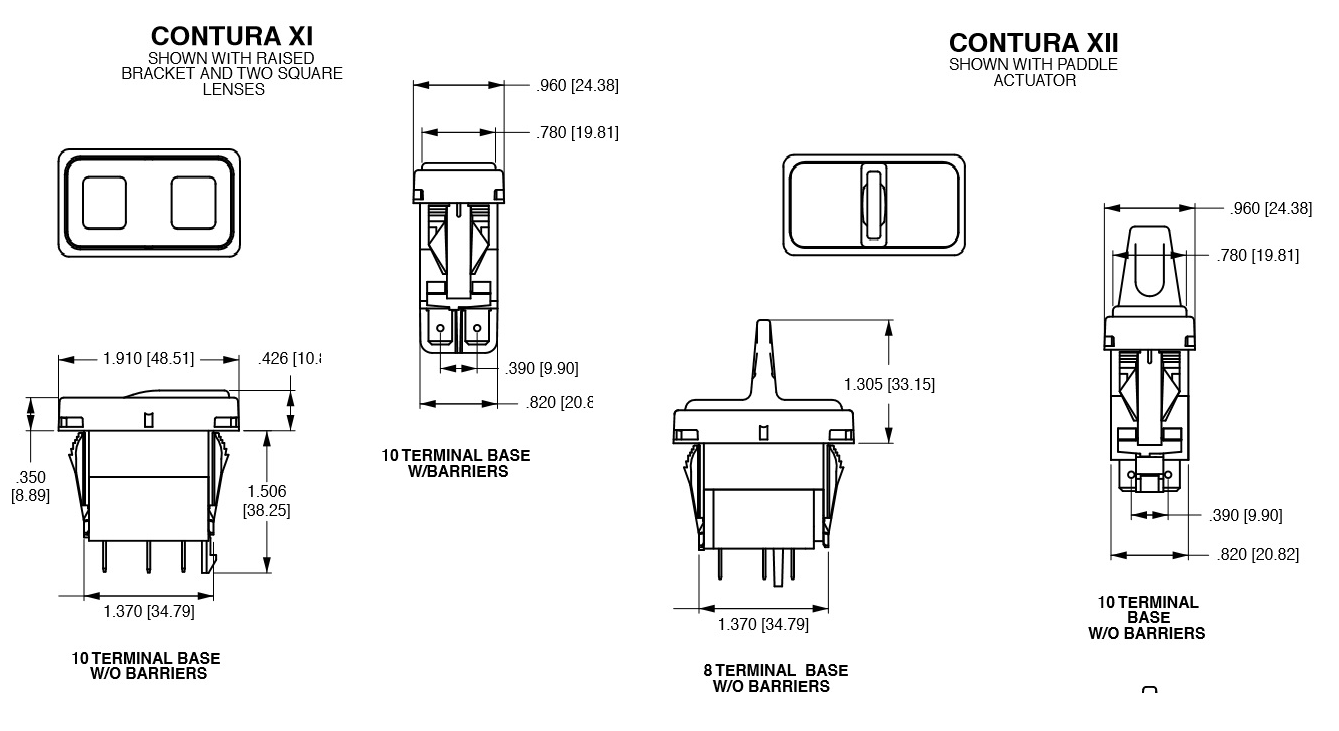

CONTURA XI & XII

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

The Contura XI & XII. The raised bracket/bezel on the Contura X helps prevent inadvertent actuation of the rocker, as well as preventing debris from being trapped under the actuator. This curved rocker style is available with a variety of lenses and legends.
For increased durability of imprinted lens symbols, quare lenses are offered in 1-piece or 2-piece constructions.



FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF 10A 250VAC, 15A 125VAC, 1/2HP 125-250VAC,250VAC, T85 Concave or convex rocker with grooved finger traction
(ON)-NONE-OFF 15A 24V Concave or convex with smooth surface
ON-NONE-(OFF) 20A 18V Illuminated concave or convex rocker with square lens(es)
ON-NONE-ON 20A 12V Illuminated concave or convex rocker with bar lens(es)
ON-NONE-(ON) 20A 6V Illuminated concave or convex rocker with combination square and bar lenses
ON-OFF-ON 20A 3V Locking Rocker
Paddle
ON-OFF-(ON) 10A 250VAC, 15A 125VAC, 1/2HP Illuminated paddle
(ON)-OFF-(ON) 15A 125VAC, 1/2HP, 12(2)A 125VAC uT85

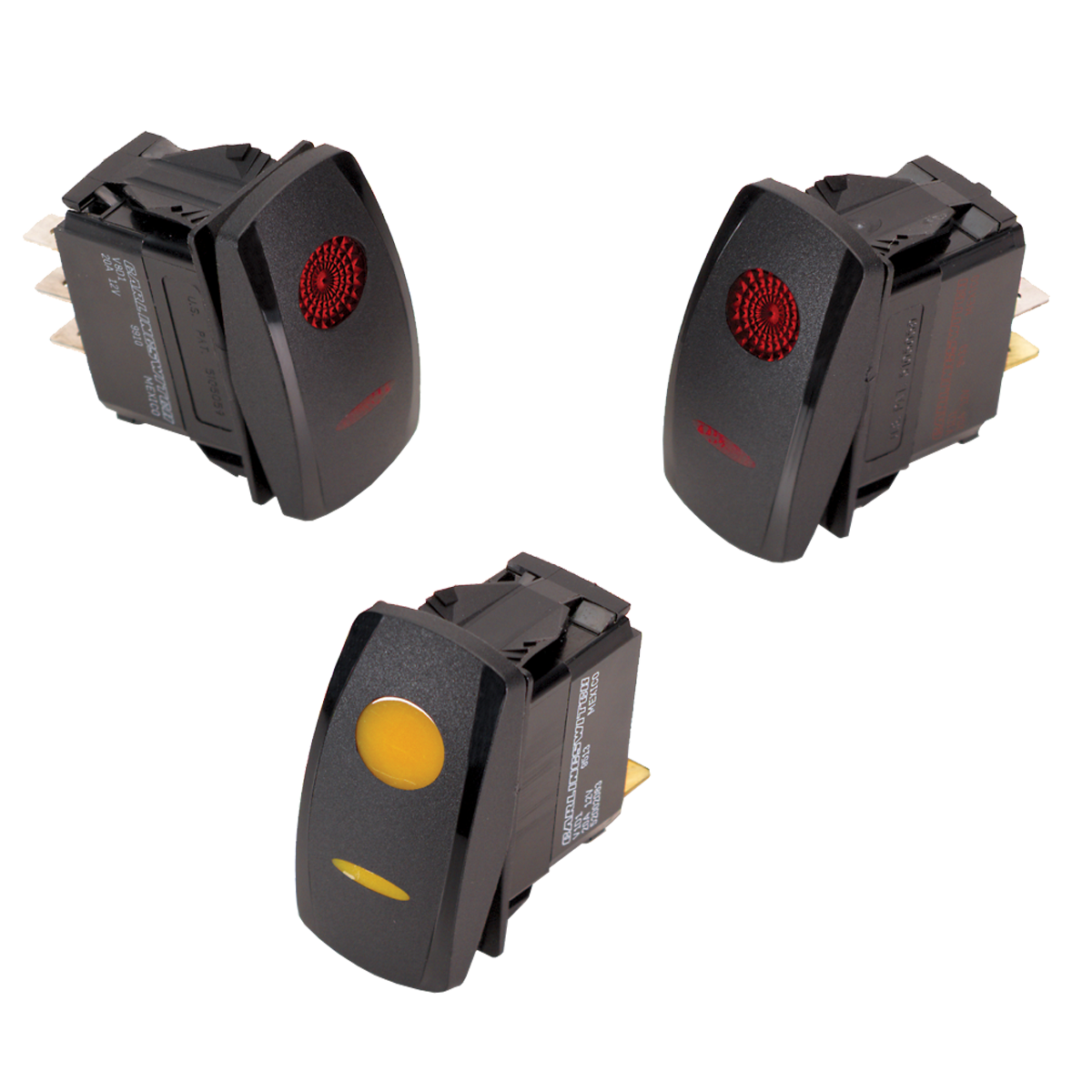

CONTURA XIV

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

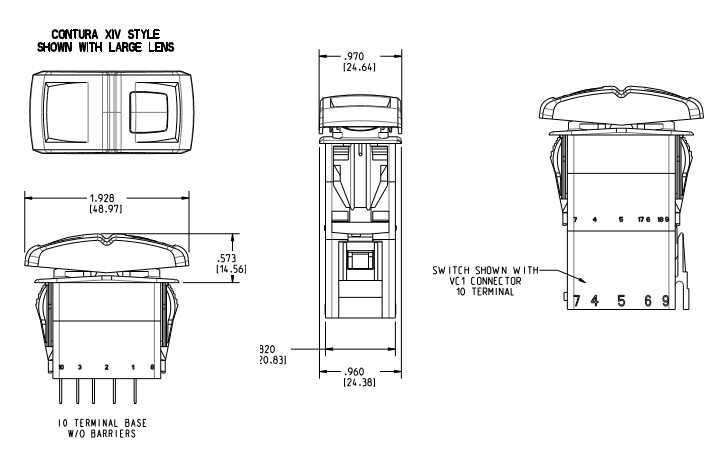

The Contura XIV actuator features recessed ridges and center groove which define the boundary between the top and bottom switch functions. Available with bar and square lenses and optional laser etching



FUNCTION  RATING  ACTUATOR STYLES
           ON-NONE-OFF               10A 250VAC
15A 125VAC
1/2 HP
Convex rectangle with center-located dividing groove
(ON)-NONE-OFF           15A 24V

Illuminated convex rectangle with

center-located dividing groove, with bar

ON-NONE-(OFF) 20A 18V
ON-NONE-ON 20A 12V
ON-NONE-(ON) 20A 6V
ON-OFF-ON 20A 3V
ON-OFF-(ON)
(ON)-OFF-(ON)

Variety of Special Circuits available

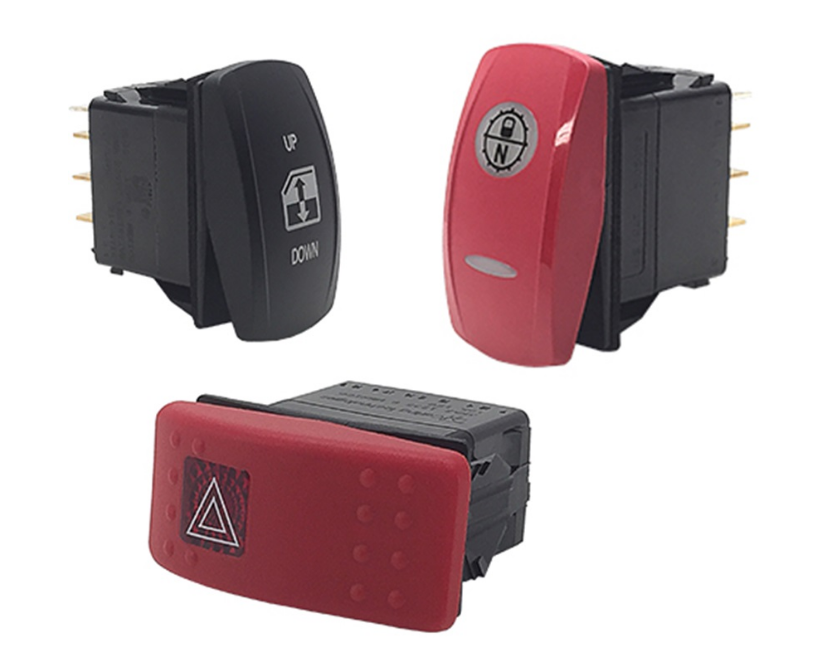

J-SERIES


J-Series Contura multi-circuit switches are designed for marine and heavy vehicle applications that require multiple circuits in one switch. In addition to offering the same great features as the V-Series Contura switches, the J-Series offers more complex circuit options that include hazard warnings, additional lamp configurations, progressive circuits, and double pole progressive circuits. Available in single or double pole configurations, J-Series offers a wide variety of unique options including choices for actuator colors, illuminations and symbols. An optional plug-in terminal connector enables pre-wiring of wire harness.

J-Series multi-circuit switches, with sealed front panel components, are certified to IP66, signifying complete protection against dust and prolonged spray and submersion under pressure. These switches are vibration, shock, thermoshock, moisture and salt spray resistant, with temperature ratings ranging from -40°C to 85°C.

Actuators may be purchased and stocked separately from the base assembly. Available in mostly all V-Series Contura rocker actuator styles.

L-SERIES

The L-Series snap-in rocker switches offer countless unique options including choices for ratings, colors, illuminations and laser etched legends. These single or double pole switches feature a broad choice of actuator styles, colors, and lenses.

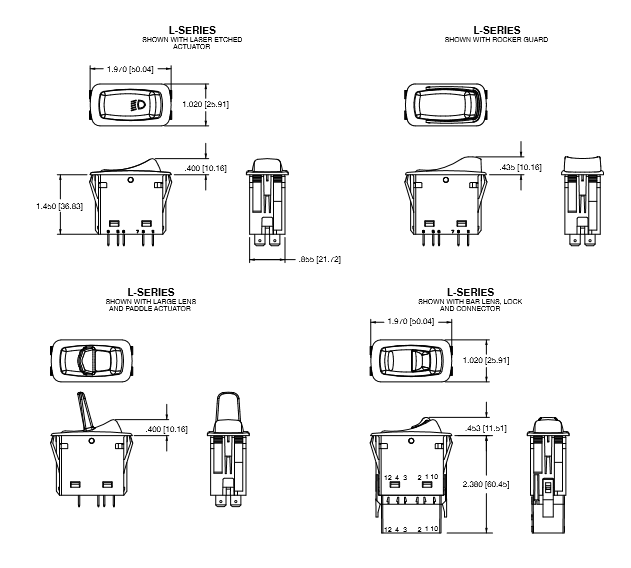

Neatly proportioned, the L-Series rocker switch fits into industry standard mounting holes of 1/734' x .867 & and 44.0mm x 22.0mm. Twelve terminals offer an extensive range of switch and lamp circuit options, including LED or incandescent illumination. An optional plug-in terminal connector enables pre-wiring of wire harness.

The L-Series switches, with sealed front panel components, are IP67 certified, and able to withstand temperatures from -40°C to +85°C. These switches are vibration, shock, thermoshock, moisture and salt spray resistant.



FUNCTION  RATING  ACTUATOR STYLES
ON-NONE-OFF .4VA @ 28VDC Resistive Convex rocker
(ON)-NONE-OFF 10A 250VAC Illuminated convex rocker with large lens
ON-NONE-(OFF) 15A 125VAC Illuminated convex rocker with bar lens(es)
ON-NONE-ON 1/2HP
No Agency Listings
Illuminated convex rocker with combination large and bar lenses
ON-NONE-(ON) 15A 12V Convex locking rocker with or without lens
ON-OFF-ON 15A 24V
20A 18V

ON-OFF-(ON) 20A 12V
20A 6V

(ON)-OFF-(ON) 20A 3V
Circuits with Jumper Terminals:
(On)-Off-(On)
On-On-On

Wide variety of Progressive Circuits available
Hazard Warning Circuits available

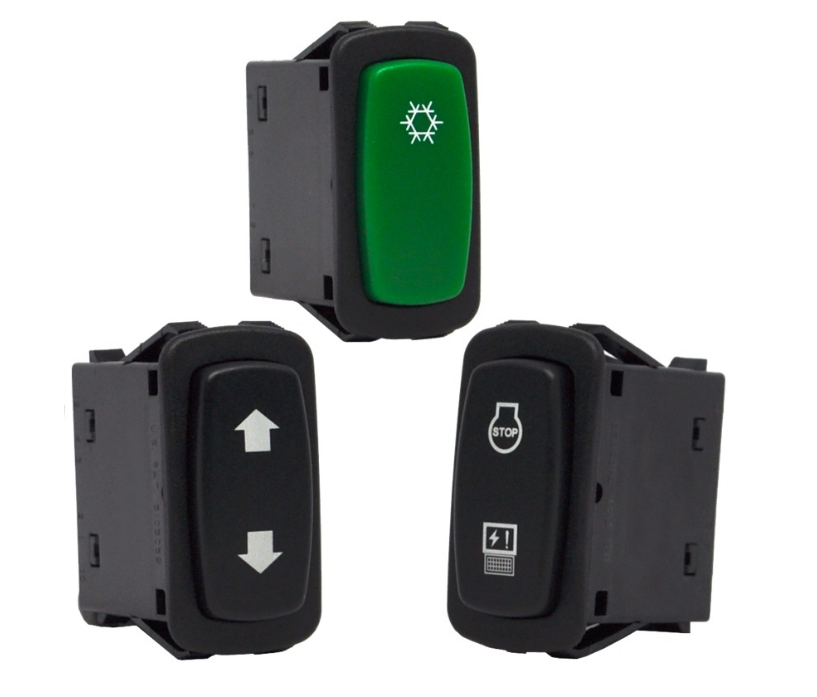

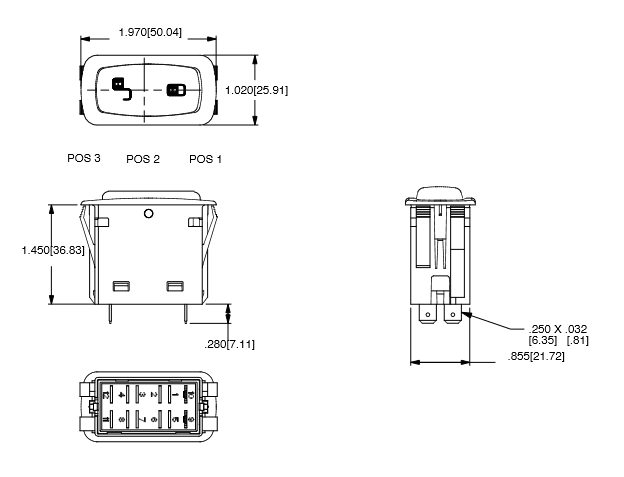

LP-SERIES

The LP-Series Illuminated Indicators are the perfect complement to the aesthetics, reliability, and performance of the L-Series sealed rocker switches. As a critical safety feature, the illumination alerts the operator of essential system functions or malfunctions, such as: oil pressure, high temperature, transmission or other fluid levels, parking brake, or general system confirmations.

Options include translucent or laser-etched inserts and a one-piece polarized connector designed to simplify the assembly process. The LP-Series Illuminated Indicator is vibration, shock, and thermoshock resistant. Temperature ratings range from -40°C to 85°C.

The L-Series styling assures seamless integration into most any dashboard panel to meet the needs of today’s Off-Highway, Heavy Vehicle, Marine, Appliance, and Industrial Controls markets.

N-SERIES

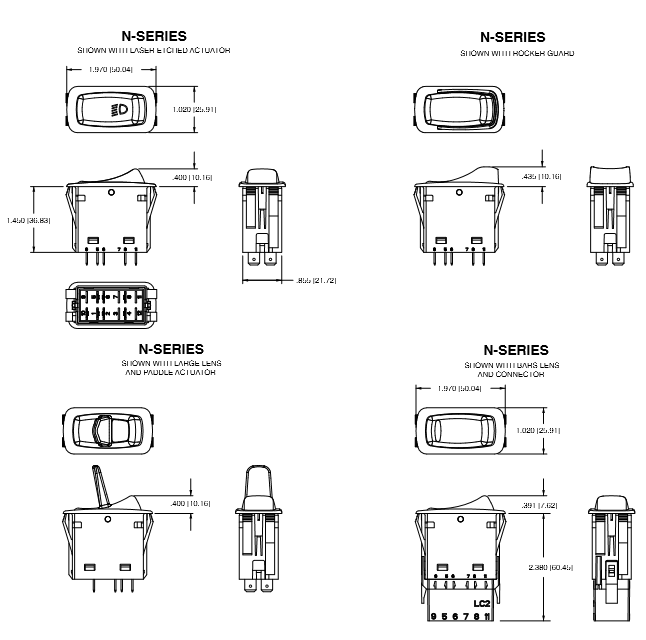

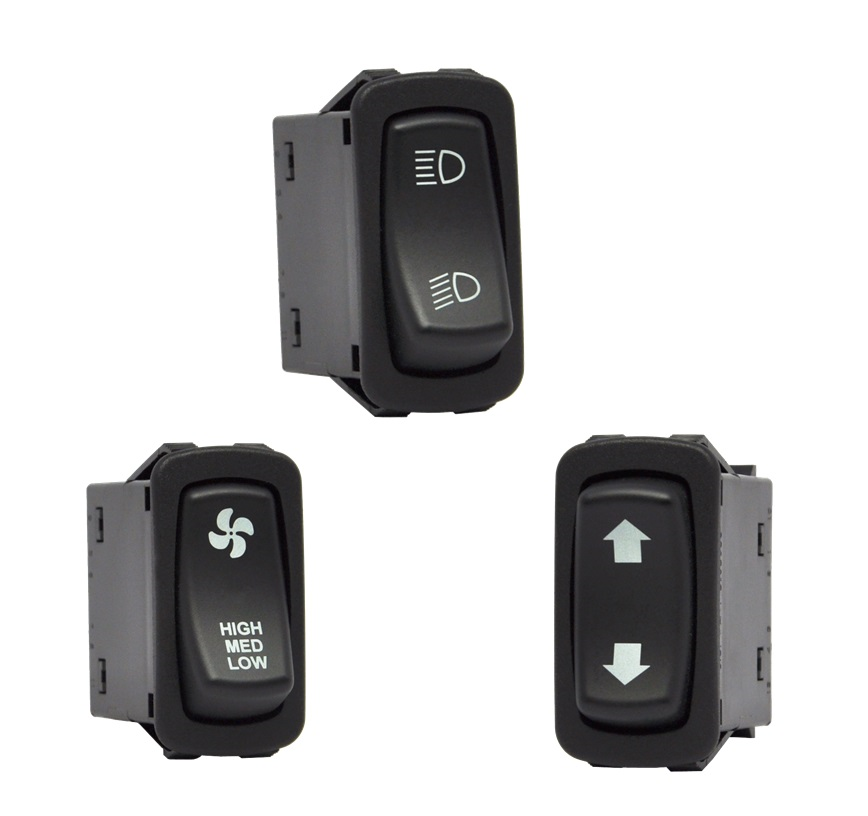

The N-Series Addressable Switch offers the look and feel of a traditional electro-mechanical control coupled with a built in PCB to provide customers with a flexible, cost effective alternative to a CAN/LIN based switch.

The N-Series produces up to 144 individual switch IDs by using a resistive ladder circuit. Different switch IDs are achieved by changing the resistor values tied to individual loads. The individual loads can then be assigned to the specific functions that the switch is controlling. Each switch is connected to an ECU and the application software is written to recognize the switch IDs to determine which load is being controlled as well as the selected actuator position. The end result means that wiring harnesses are more simplified and specific loads can now be rearranged without the need for a costly and time consuming harness redesign, giving designers the ultimate in design flexibility.

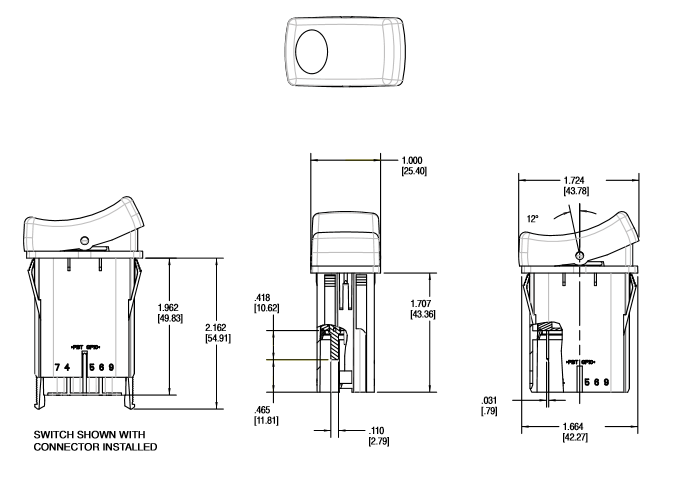

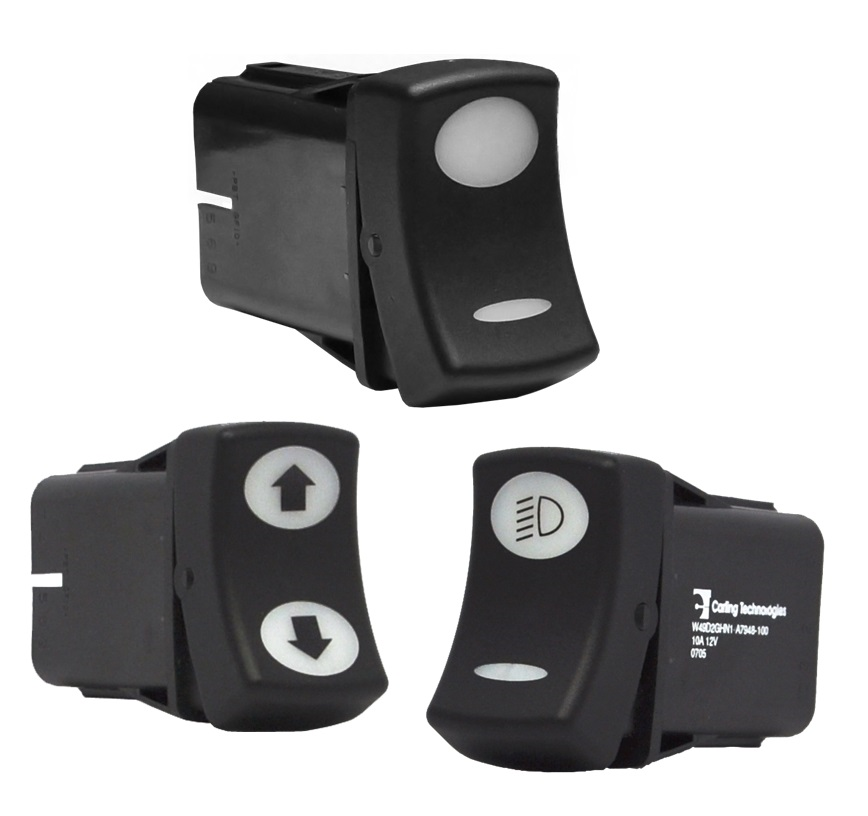

W-SERIES

The W-Series features complete IP68 protection, even below the panel, where the critical connection is made from your wiring harness. When used in conjunction with the integrated connector, the totally submersible W-Series provides a seal for up to ten individual wires, assuring compatibility with even the most complex circuitry.

The W-Series also offers a wide variety of illumination options featuring dual level and multicolor LEDs, progressive and hazard warning circuits, ratings up to 10A 24V, choice of paddle, rocker, locking or laser etched actuators, hundreds of standard legend choices and the electrical performance and reliability that is the hallmark of Carling Technologies products.



FUNCTION  RATING  ACTUATOR STYLES
       ON-NONE-OFF                                     10A 24V

Smooth curved rocker, with oval or

bar lens styles for illuminated versions

(ON)-NONE-OFF 10A 12V
ON-NONE-(OFF) 10A 6V
ON-NONE-ON 10A 3V
ON-NONE-(ON)
ON-OFF-ON
ON-OFF-(ON)
(ON)-OFF-(ON)

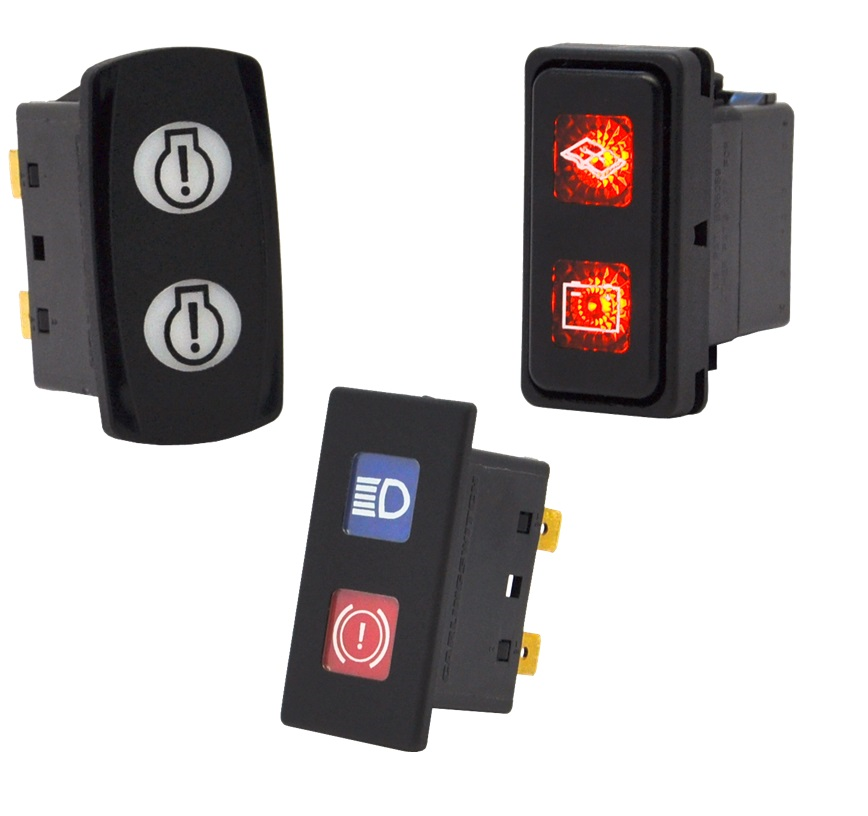

VP-SERIES

The VP-Series illuminated plug offers an additional design option for the modular and flexible V-Series Contura system. It is offered with removable/replaceable lamps, Contura styling, and LED illumination with your choice of one or two lenses.

Using the same cutout as the Contura line of rocker switches, the VP-Series Illuminated Plug also has a unique panel retention system which accommodates panel thicknesses up to 1/2". Three different style housings (flush, raised panel, oval) assure seamless integration into most any dashboard panel. A one-piece polarized connector, which assures simple, economical installation, is also available.

The VP-Series illuminated plug is vibration, shock, thermoshock resistant and operate in temperatures ranging from -40°C to 85°C.

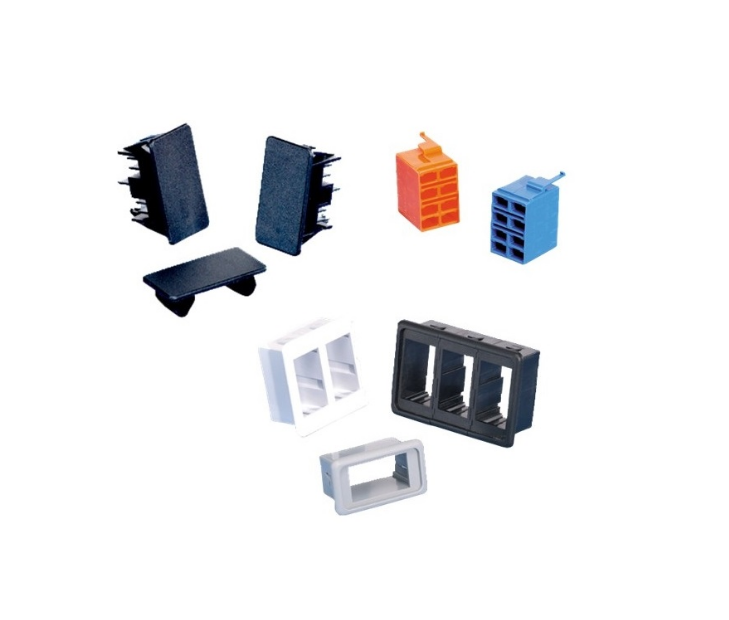

ACCESSORIES

Carlingswitch also offers many accessories to meet the needs of the transportation market including:

- hole plugs,
- connectors
- mounting panel
to switch V-series and L series
