Cable/Connectors

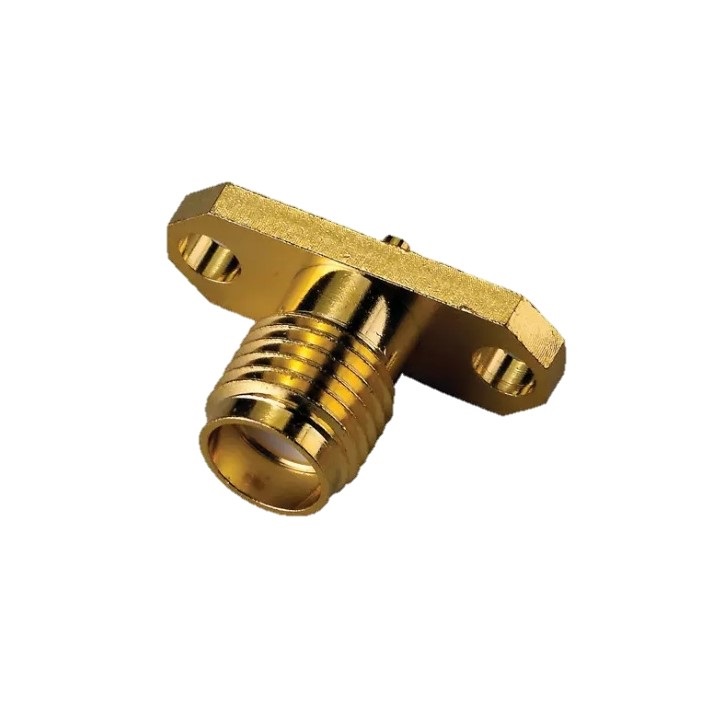

PCB.SMAFST.2H.A.HT


The PCB.SMAFST.2H.A.HT connector was designed to be mounted on a PCB, it has a Solder Post for connection and 2 Mounting holes. The connector pin is directly soldered onto pads on the PCB. The connector is a standard SMA (F) Jack. The SMA connector is the most popular type connector for RF applications. Taoglas connectors are all RoHS compliant.

Features:
- SMA(F) Jack
- 2 Hole Panel Mount with Solder Post Termination
- Frequency Range: 0~12.4GHz
- Finish: Gold
- Post Length: 2mm
- Total Length: 11.52mm
- RoHS Compliant

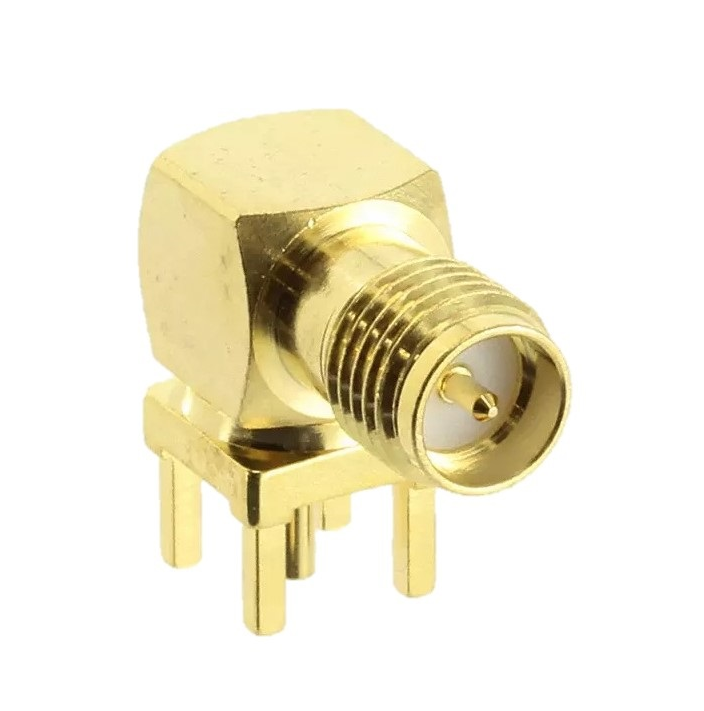

PCB.RPSMAFRA.HT


The PCB.RPSMAFRA.HT connector was designed to be mounted on a PCB. The maximum thickness of PCB that the connector can be used with is 0.4mm. The connector pin is directly soldered onto pads on the PCB. The connector is a standard RP-SMA(F)RA Jack. Taoglas connectors are all RoHS compliant.

Features:
- RP-SMA(F)RA Jack
- Through Hole
- Frequency Range: DC up to 6GHz
- Finish: Gold
- Dimensions: 13.75mm*15.1mm
- RoHS Compliant

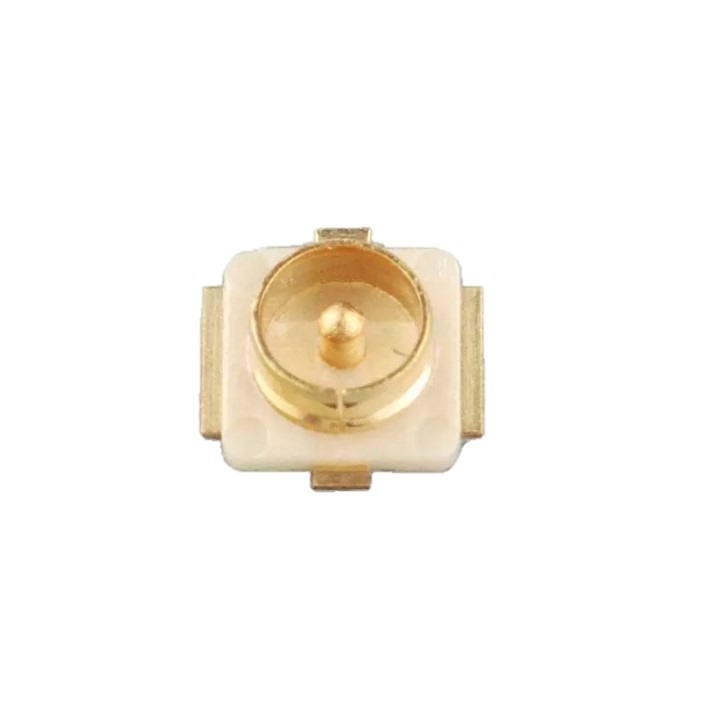

MFG.RECE.20279.001E.01


Product Name: IPEX MHF Receptacle
Compatible with IPEX MHFII, Hirose U.FL
Mating Height: 2.5mm MAX 2,500 pieces per reel

The Taoglas RECE.20279.001E.01 is a 3 pad type wire-to-board MHF SMT Receptacle solution that is ultra small, lightweight and low profile (2.5mm MAX.) with an operational frequency range of DC to 6 GHz. Taoglas RECE.20279.001E.01 is gold plated to have superior performance and allow easy mounting of the male RF connector. Packaged on tape and reel, this receptacle is designed to be placed with automatic “pick and place” equipment.

The RECE.20279.001E.01 acts as a 50 Ohm transmission line to connect the micro-miniature RF connector to the printed circuit board. It is fully compatible with MHFII and Hirose U.FL connector.

Applicable Technology RECE.20279.001E.01 receptacles commonly integrated into GSM module, GPS module, Wireless LAN modules.

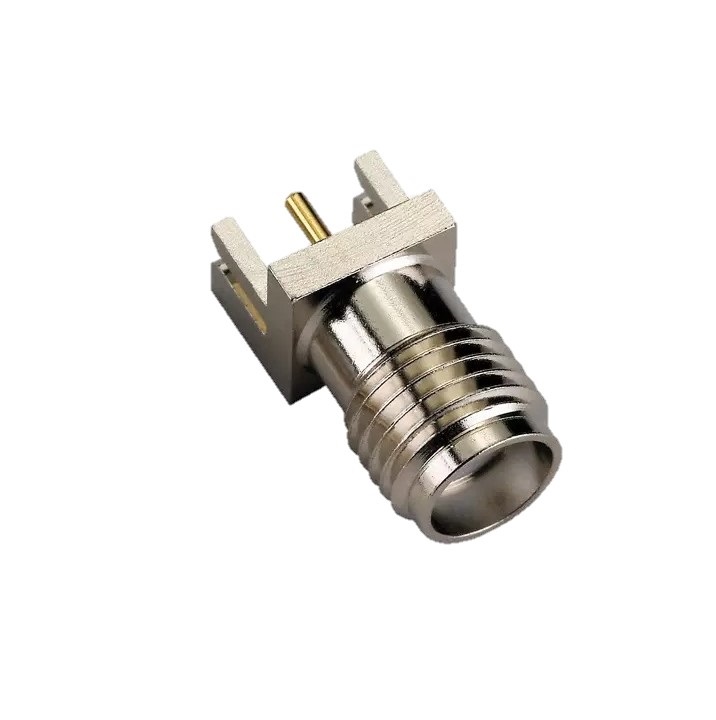

EMPCB.SMAFSTJ.C.HT


The EMPCB.SMAFSTJ.C.HT connector was designed to be mounted on a PCB edge. The edge mount configuration allows the connector to be easily slotted onto a PCB board; the maximum thickness of PCB that the connector can be used with is 0.8mm. The connector pin is directly soldered onto pads on the PCB. The connector is a standard SMA (F) Jack. The SMA connector is the most popular type connector for RF applications. Taoglas connectors are all RoHS compliant.

Features:
- SMA(F) Jack
- Straight Edge Mount PCB Jack
- Frequency Range: 12.4GHz
- Finish: Nickel
- Leg Length: 3.8mm
- Total Length: 13.3mm
- RoHS Compliant

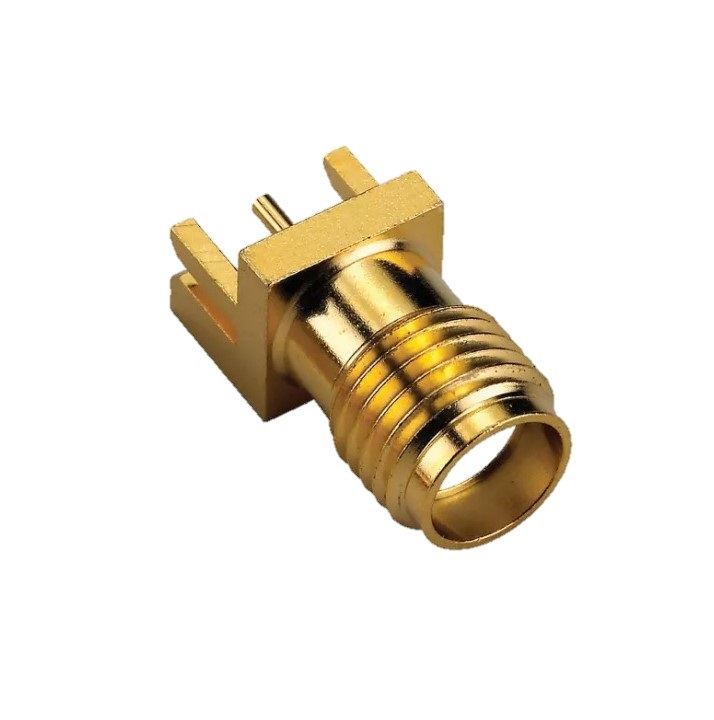

EMPCB.SMAFSTJ.B.HT


The EMPCB.SMAFSTJ.B.HT connector was designed to be mounted on a PCB edge. The edge mount configuration allows the connector to be easily slotted onto a PCB board; the maximum thickness of PCB that the connector can be used with is 0.8mm. The connector pin is directly soldered onto pads on the PCB. The connector is a standard SMA (F) Jack. The SMA connector is the most popular type connector for RF applications. Taoglas connectors are all RoHS compliant.

Features:
- SMA(F) Jack
- Straight Edge Mount PCB Jack
- Frequency Range: 12.4GHz
- Finish: Gold
- Leg Length: 3.8mm
- Total Length: 13.3mm
- RoHS Compliant

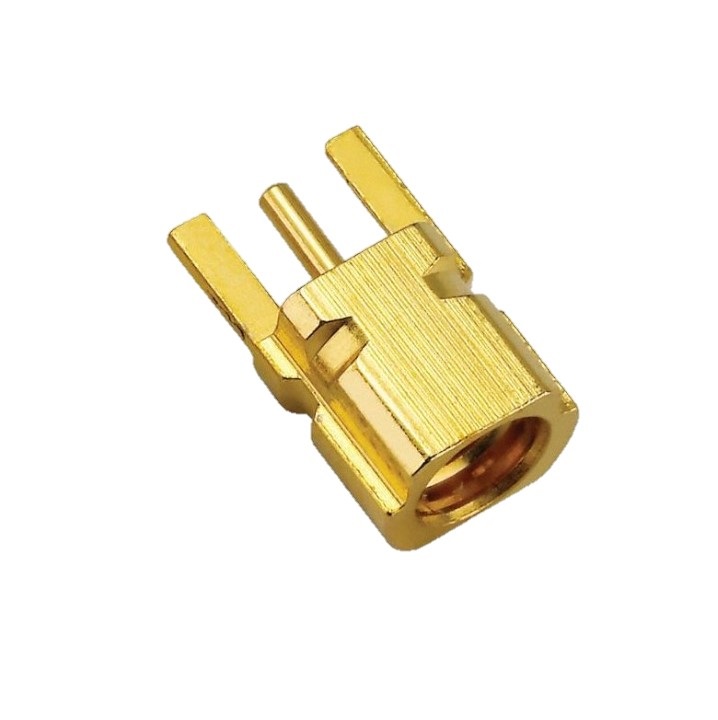

EMPCB.MMCXFSTJ.A.HT


The EMPCB.MMCXFSTJ.A.HT connector was designed to be mounted on a PCB edge. The edge mount configuration allows the connector to be easily slotted onto a PCB board; the maximum thickness of PCB that the connector can be used with is 0.8mm. The connector pin is directly soldered onto pads on the PCB. Taoglas connectors are all RoHS compliant.

Features:
- MMCX(F) Jack
- Straight Edge Mount PCB Jack
- Frequency Range: DC up to 6GHz
- Finish: Gold
- Leg Length: 2.9mm
- Total Length: 7.4mm
- RoHS Compliant

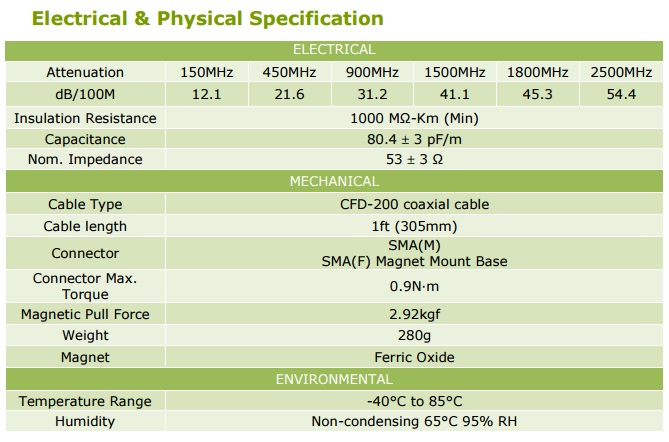

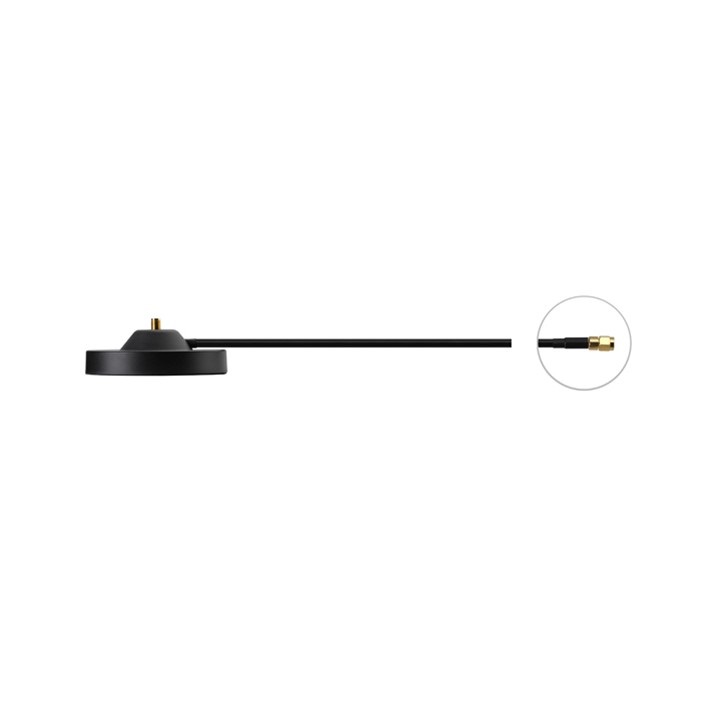

CAB.X04

Part No.: CAB.X04
Product Name : Taoglas Magnet Mount Antenna Base Cable Assembly
SMA(F) on base to SMA(M) Straight Plug on cable with 305mm(1ft) CFD-200 low loss cable

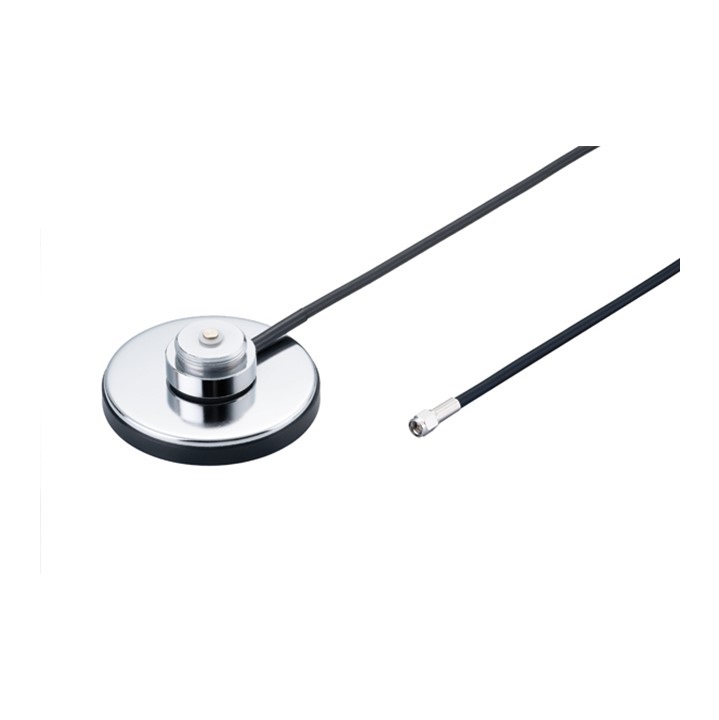

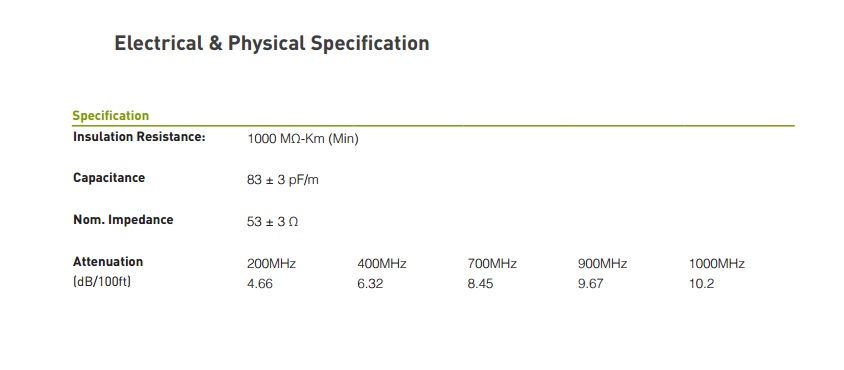

CAB.W08

Product Name: CAB.W08
Taoglas Cable Assembly
NMO Magnet Mount - 3/4 inch Style Brass Mount type to SMA(M) Straight Plug with 3ft (915mm) RG-58 cable

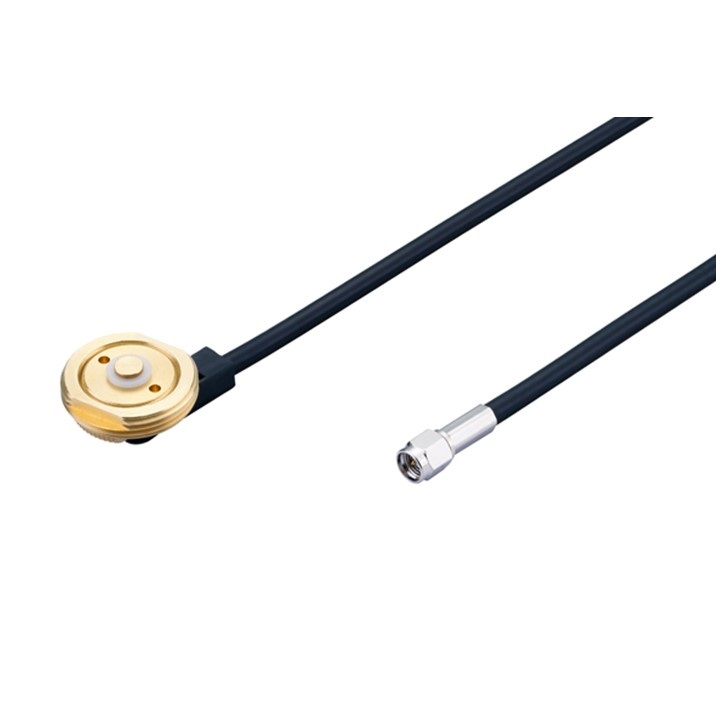

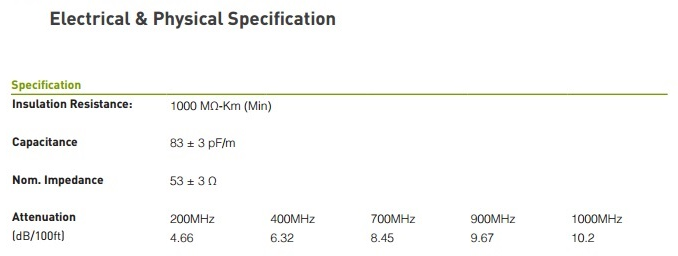

CAB.V08

Product Name: CAB.V08
Taoglas Cable Assembly
NMO Direct Mount - 3/4 inch Hole Brass Mount type to SMA(M) Straight Plug with 3ft (915mm) RG-58U cable

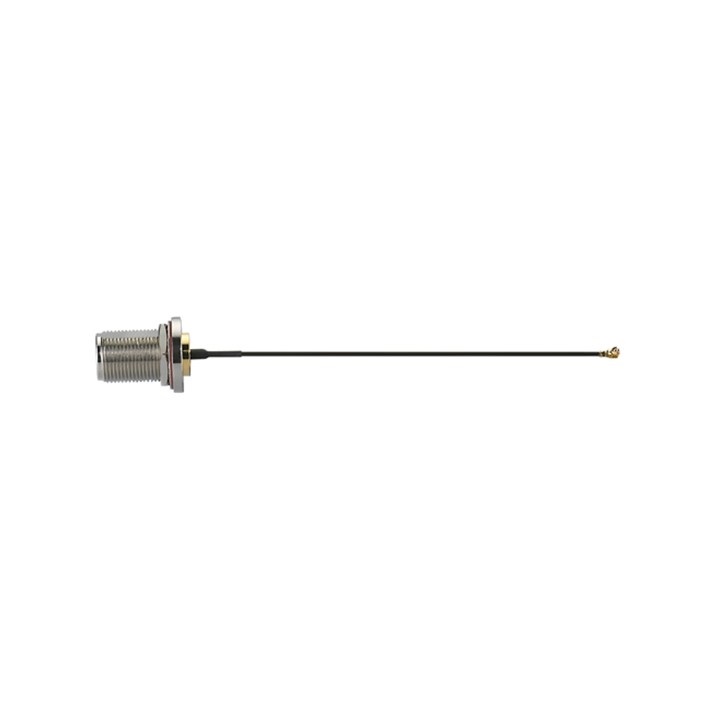

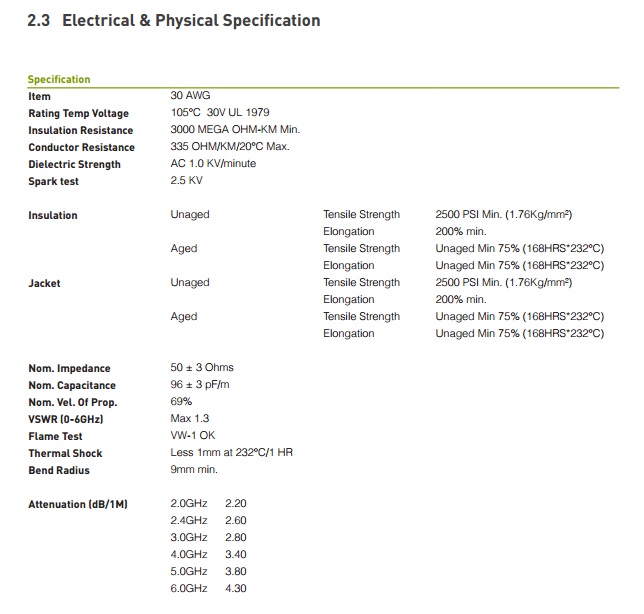

CAB.954

Product Name: CAB.954
Taoglas Cable Assembly
N Type Jack with O-Ring to 300mm(11.81”) 1.37 to IPEX MHFI(U.FL comp)

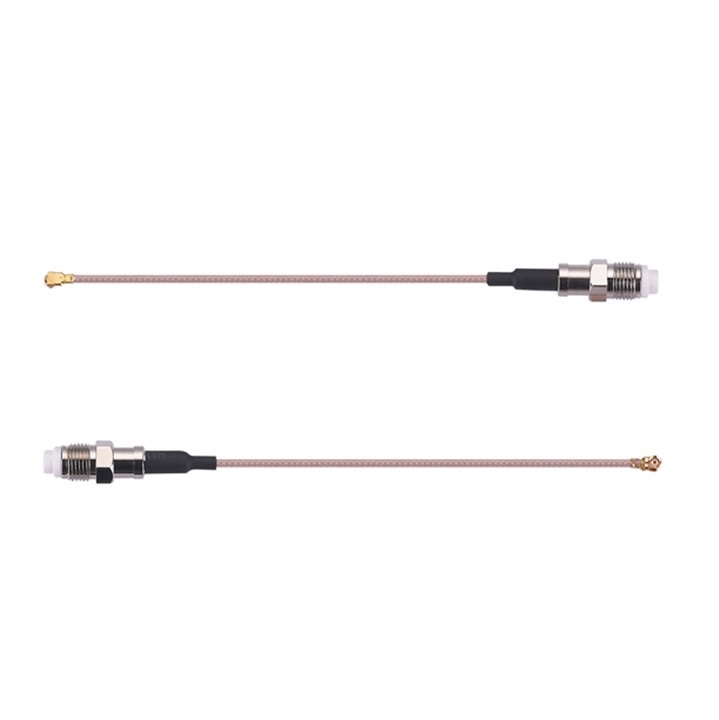

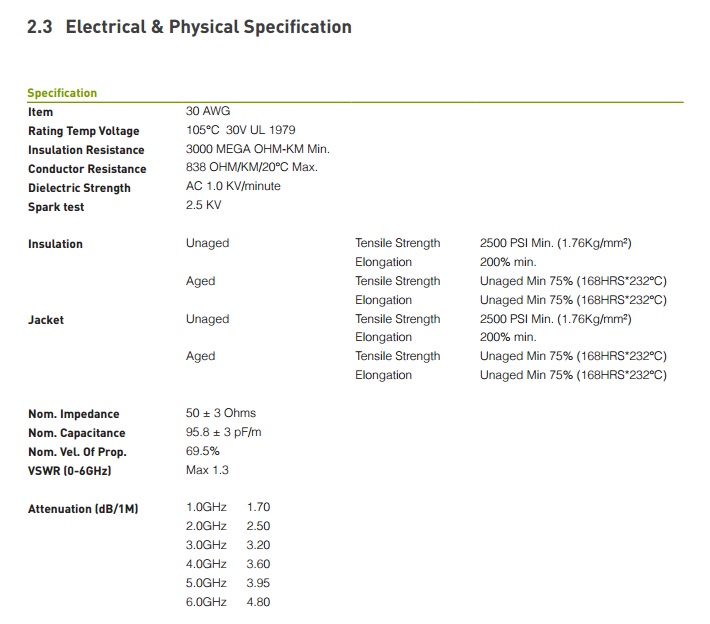

CAB.695

Product Name: CAB.695
Taoglas Cable Assembly
IPEX MHFI to FME Bulkhead Straight Jack RG-178 100mm DC-200MHz

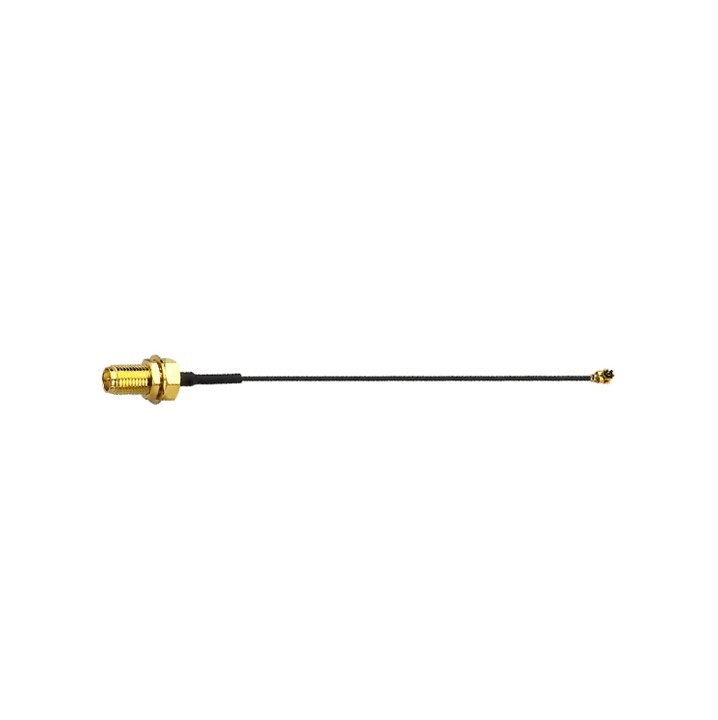

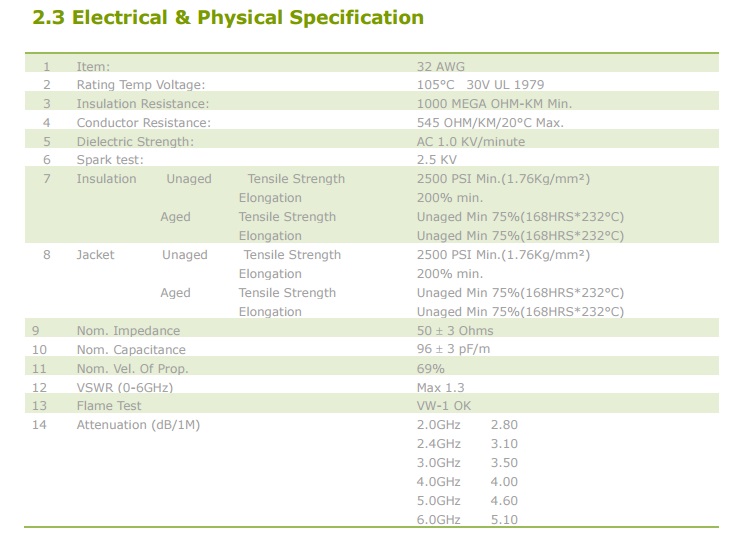

Cab.622

Product Name: Taoglas Cable Assembly
IPEX MHFI to RP-SMA(F)Bulkhead Straight Connector with 200mm 1.13 cable

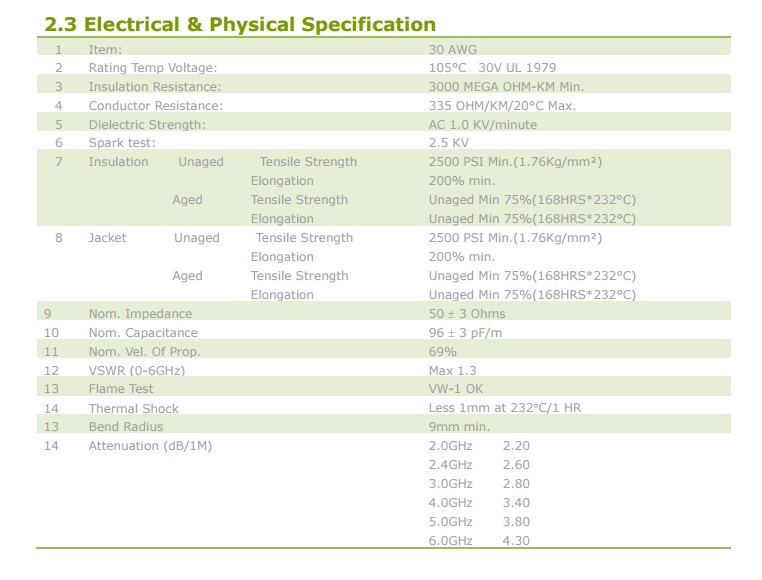

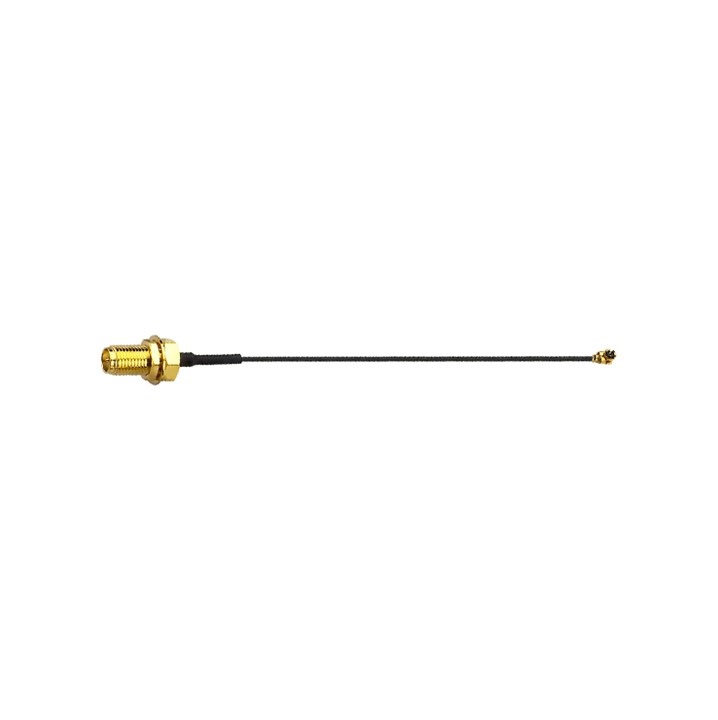

Cab.616

Part No.: CAB.616
Product Name : Taoglas Cable Assembly
IPEX MHFI to SMA(F)Bulkhead Straight with O-Ring Connector with 100mm  1.37 cable
