Mobile IoT

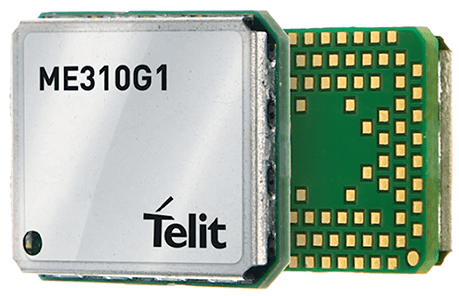

ME310G1


The ME310G1 is an LTE-M1/NB2 dual mode series module that offers optimized power consumption and enhanced coverage for IoT deployments. At just 14.3 x 13.1 mm, it is ideal for size-sensitive IoT applications. Quad-band 2G fallback option ensures that assets remain connected and trackable, even as they move out of LTE-M/NB range (where 2G coverage is available).

ME310G1 module provides:
- Mobile IoT 3GPP Rel 14 - LTE Cat M1, NB1, NB2
- Cost-effective, miniature footprint with long battery life
- Enhanced coverage, with up to +15dB/+20dB in MCL
- Optional embedded GNSS functionality to help reduce cost and complexity
- Available quad-band 2G fallback for EMEA, APAC and LATAM markets
- Voice-capable variants – VoLTE over LTE-M
- Multiple I/Os

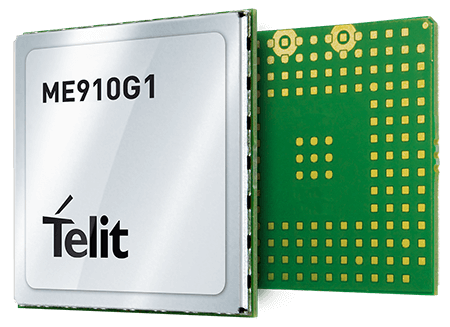

ME910G1


The ME910G1 is engineered to enable connectivity in products of any complexity with ease. This high- performance module delivers the most comprehensive set of connectivity features in a compact 28.2 x 28.2mm LGA form factor. An excellent solution for fixed and mobile applications such as utility metering, home and commercial security, and situations with limited in-region mobility such as POS and logistics terminals.

ME910G1 modules feature:
- 28.2 x 28.2 mm LGA footprint
- Mobile IoT 3GPP Rel 14 - LTE Cat M1, NB1, NB2
- Drop-in upgrade path for 3G and 2G series
- Voice-capable variants – VoLTE over LTE-M
- Certified with regulatory bodies and mobile operators worldwide
- Multiple I/Os
- Optional GNSS

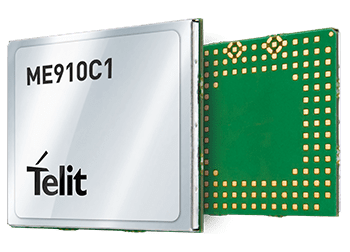

ME910C1


The ME910C1 is an LTE Cat M1/NB1 module that’s tailored for IoT applications, offering compact size, low-power consumption and enhanced coverage. It is the Mobile IoT series of the popular Telit LE910 LTE modules.

ME910C1 modules feature:
- Maximum uplink/downlink data rates of about 300 kbps
- Support for features specified by 3GPP Release 13 to boost IoT applications
- Cost-effective, compact design with long battery life
- Enhanced coverage, with up to +15dB/+20dB in MCL advantage compared to other LTE technologies

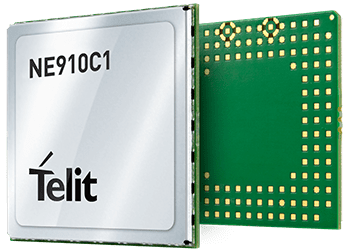

NE910C1


The NE910C1 is an LTE Cat NB1 module, another series in the Telit xE910 family of modules. It offers a band configuration for deployment in European NB-IoT networks, either in in-band, guard-band or standalone mode. The long-life cycle makes it a great choice for new IoT designs and as a migration path for existing GPRS devices.

NE910C1 modules feature:
- Maximum uplink/downlink data rates of 250 kbps
- Support for features specified by 3GPP Release 13 to boost IoT applications
- Cost-effective design with long battery life

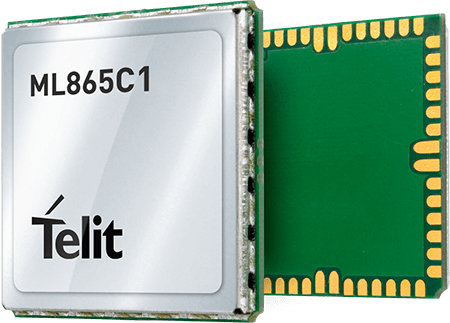

ML865C1


The ML865C1 is an LTE-M1/NB1 dual mode series module that offers optimized power consumption and enhanced coverage for IoT deployments. At just 24.4 x 24.4 mm, it is ideal for size-sensitive IoT applications. Quad-band 2G fallback option ensures that assets remain connected and trackable, even as they move out of LTE-M/NB range (where 2G coverage is available).

ML865C1 module provides:
- Support for features specified by 3GPP Release 13 to boost IoT applications
- Cost-effective, compact design with long battery life
- Enhanced coverage, with up to +15dB/+20dB in MCL advantage when compared to other cellular technologies
- Optional embedded GNSS functionality to help reduce cost and complexity
- Available quad-band 2G fallback for EMEA, APAC and LATAM markets

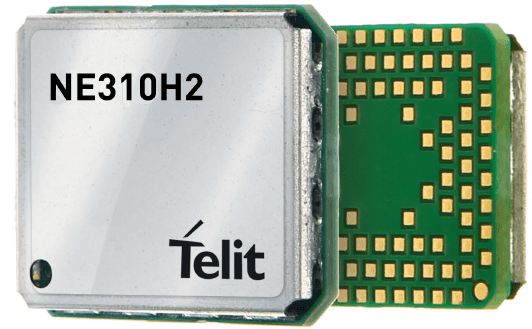

NE310H2


The NE310H2 creates brand-new IoT-enabled business models by addressing connectivity and battery life concerns for the growing number of OEMs, integrators and device designers looking to dramatically increase the number of data points they can collect from their operations and customers via IoT devices.

The NE310H2-W1 LTE UE Cat NB2 devices are optimized in cost, size and power consumption compared to higher UE categories. 3GPP Release 14 further improves these features by adding techniques to increase the data rate for NB-IoT

NE310H2-W1 module provides:
- Compliant to 3GPP Release 14 Cat NB2
- Miniature size 15x18mm, pin-to-pin compatible with Telit xE310 Family Form Factor
- Optimized in power and cost
- Long range and deep indoor coverage

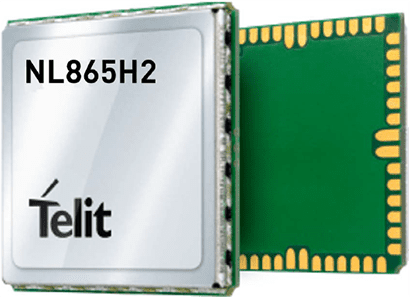

NL865H2


The NL865H2 is designed for size sensitive applications. NB-IoT devices are specifically tailored for low data throughput IoT applications. The NL865H2 creates brand-new IoT enabled business models by addressing connectivity and battery life concerns for the growing number of OEMs, integrators and device designers looking to dramatically increase the number of data points they can collect from their operations and customers via IoT devices.
Compliant with 3GPP Release 14, the NL865H2 LTE UE Cat NB2 module is optimized in cost, size and power consumption compared to higher UE categories. 3GPP Release 14 further improves these features and also adds techniques to increase the data rate for NB-IoT.

NL865H2-W1 module provides:
- Compliant to 3GPP Release 14 Cat NB2
- Pin-to-pin compatible with Telit xL865 Family Form Factor
- Optimized in power and cost
- Optional built-in eSIM
