ISM

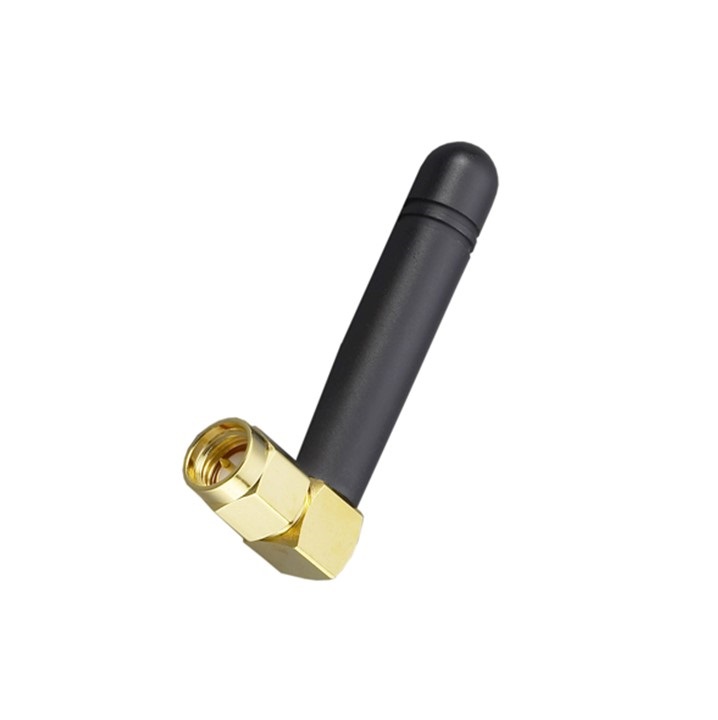

Ti.10


The TI.10 series are high performance 433MHz omni-directional antennas. The TI.10 helical SMB plug mount antenna is ideal for mobile small form factor applications. The SMB connector is the preferred connector for automotive applications as it has a push lock feature, quick and easy to install, eliminates cost of cable and issues related to cable such as loss, twisting and noise, and resistant to disconnection from vibration.At only 45mm in length Omni-directional 0dBi peak gain ensures constant reception and transmission.

The antenna structure is designed for robust handling and the housing is made with TPE giving reliable performance in tough environments.

Suggested Applications:
- Automotive
- Remote control
- Remote monitoring
- Smart Meter

Features:
- SMB Plug(F)RA Connector
- Low profile and Robust Handling
- 45*14.7mm Antenna Dimensions
- ROHS Compliant

pc81


This miniaturized low profile PCB antenna is based on smart TheStripe™ antenna technology. It consists of a PCB antenna and 1.13mm mini coaxial cable with Ipex MHF (Hirose U.FL comp) connector. The PC81 comes with a foam attachement which has £M adhesive on the underside which assists in palcing the antenna with sufficient clearance for optimal performanace. Cable lengths and connectors are fully customizable.

Features:
- 34mm*7mm*0.8mm(PCB)
- 16mm*6mm*7mm(foam)
- Compatible with Hirose U.FL
- With 3M Adhesive, easy stick on client enclosure

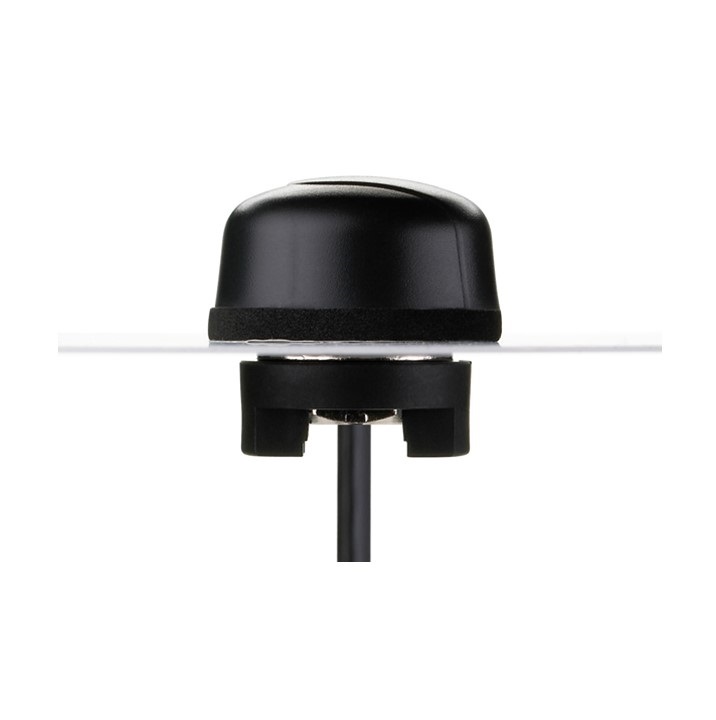

IS.04


The 868MHz Hercules ISM antenna is a high performance steel thread-mount ISM antenna for external use on vehicles and outdoor assets worldwide. Omni-directional high gain across all bands ensures constant reception and transmission. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 52 mm. Designed to not catch on tree-branches. The antenna can be mounted on metal structures.

Features:
- Low profile-Height 29mm and diameter 49mm
- Heavy duty screw mount
- UV and Vandal resistant PC housing
- IP67 & IP69K
- Standard cable is 3m RG174 with SMA(M)-connector fully customizable
- ROHS Compliant

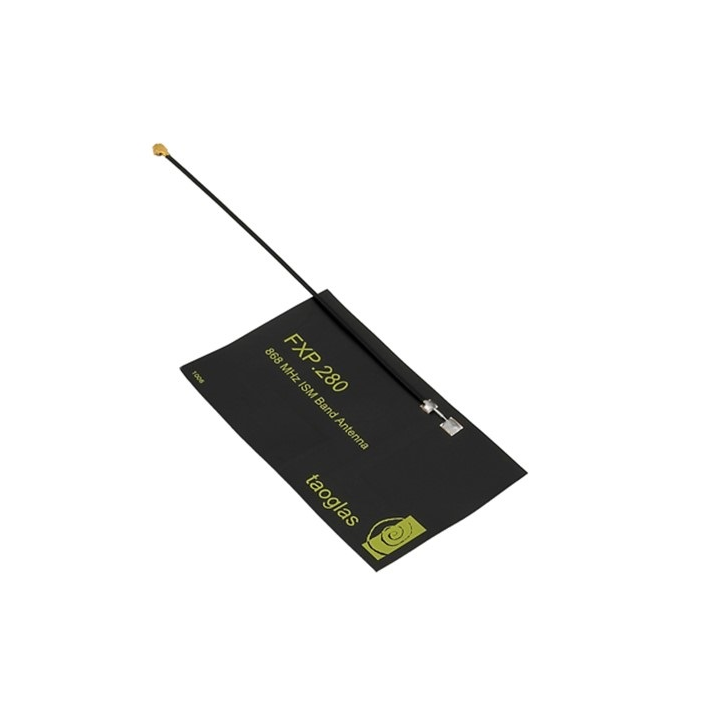

fxp280


The Taoglas FXP280 868 MHz ISM Antenna covers from 863-870 MHz used in the 868MHz ISM (Industrial Scientific Medical) European Band. The antenna has been designed in a flexible material with a square form-factor and cable connection for an easy installation. The antenna works on different plastic materials and thickness. We have selected a piece of ABS with 2 mm of thickness as a baseline for testing.

Features:
- 75*45*0.1mm
- 100mm Ø1.13 Cable

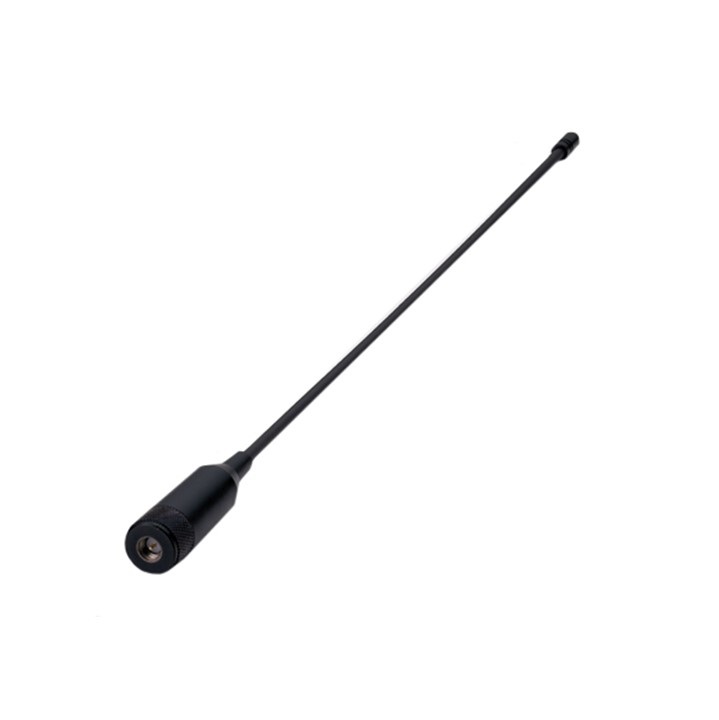

FW80


The Meteor FW.80 is a 0dBi 169MHz ISM band 1/4 wavelength monopole flexible whip antenna with omni- directional pattern optimized in the azimuth for wide coverage range in typical 169 MHz applications such as Wireless M-Bus metering. It also finds its usage in remote asset monitoring applications, alarms, paging systems and private mobile radio services.

The Meteor has a IP67 housing. The antenna, like all low frequency monopole antennas needs to be mounted to a metal plate to radiate. For a waterproof integration to a metal box a waterproof panel mount SMA connector or cable assembly can be provided. TNC and N-type antenna versions are also available. This whip is made up of a flexible inner steel core covered by TPU so extremely resistant to collisions and maintaining its original shape and RF performance. Customized frequency and gain versions can be supplied.

Features:
- IP67 Housing
- 1/4 Wavelength
- Robust but Flexible Inner Steel Whip
- High Efficiency Outdoor Antenna
- Advanced RF Design and Materials
