Mini & Submini Switches

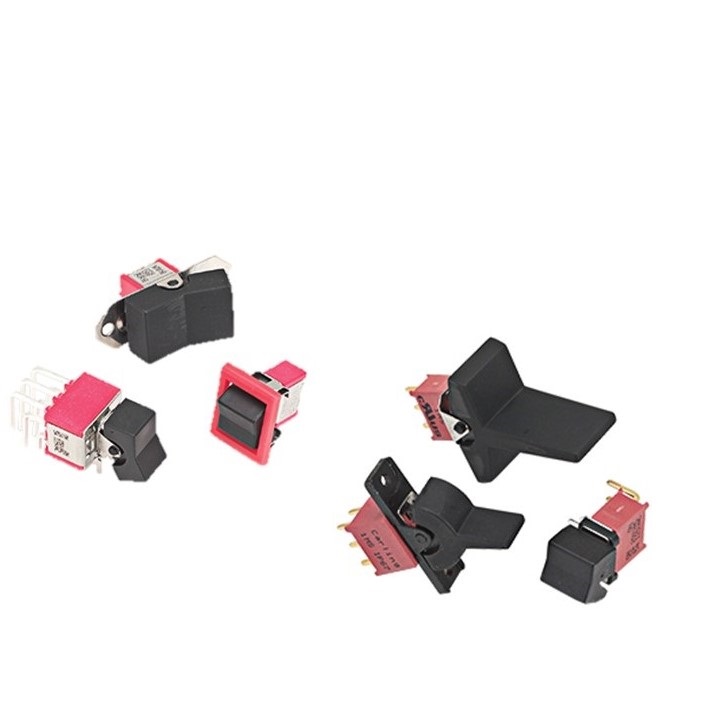

1M & 1S SERIES ROCKER SWITCHES


Carling Technologies offers a variety of sealed and unsealed, non-illuminated UL and CSA approved, IP67 rocker and paddle switches with a variety of mounting options including PC-mount.

The 1M family of miniature rocker & paddle switches is comprised of two switch series: the 1M1-Series miniature rocker and paddle switch, and the 1MS-Series sealed miniature rocker and paddle switch. Both products feature PC mounting and offer a variety of ratings, circuits, contact materials, terminal platings, rocker and paddle actuator styles and colors.

The 1S family of sub-miniature rocker switches is comprised of three switch series: the 1S1-Series sub-miniature rocker switch, the 1SS-Series sealed sub-miniature rocker switch, and the 1SM-Series surface mount sealed subminiature rocker switch. All of these series offer a variety of ratings, circuits, contact materials, terminal platings,and actuator colors.

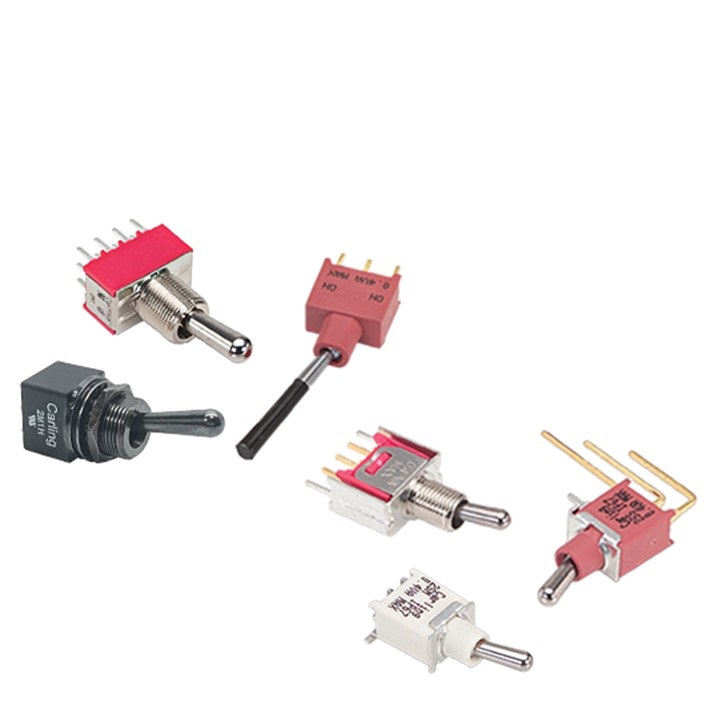

2M & 2S SERIES TOGGLE SWITCHES


Carling Technologies offers a variety of sealed and unsealed, non-illuminated single through 4 pole UL and CSA approved, IP67 toggle switches with a variety of mounting options including PC-mount.

The 2M family of miniature toggle switches is comprised of three switch series: the 2M1-Series miniature toggle switch, the 2MS-Series sealed miniature toggle switch, and the 2M1H-Series premium sealed miniature toggle switch. These series all feature PC mounting and offer a variety of ratings, circuits, contact materials, terminal platings, toggle styles and lengths, and optional color caps.

The 2S family of sub-miniature toggle switches is comprised of three switch series: the 2S1-Series toggle switch, the 2SS-Series sealed toggle switch, and the 2SM-Series surface mount sealed sub-miniature toggle switch. All of these series offer a variety of ratings, circuits, contact materials, terminal platings,and actuator types.

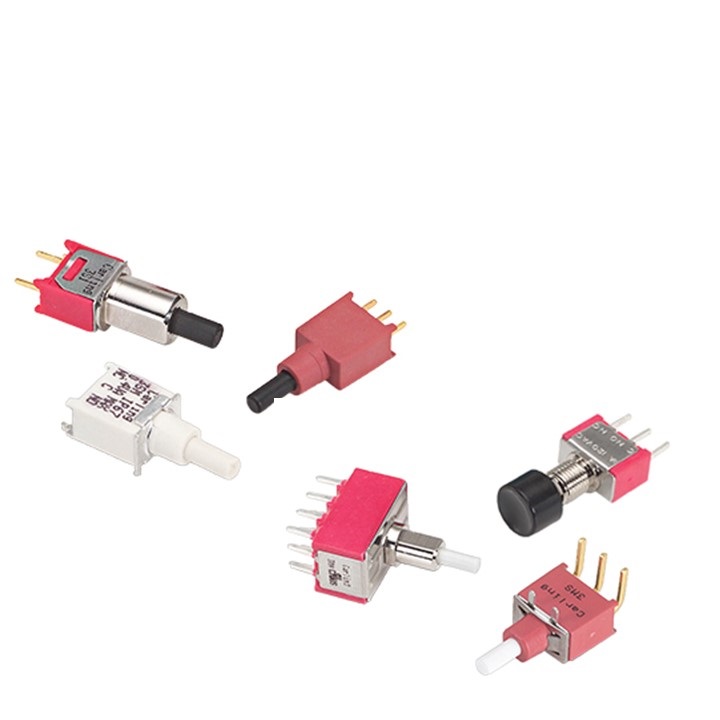

3M & 3S SERIES PUSH BUTTON SWITCHES


Carling Technologies offers a variety of sealed and unsealed, non-illuminated single through 4 pole UL and cUL approved, IP67, IP68 push button switches with a variety of mounting options including PC-mount.

The 3M family of miniature pushbutton switches is composed of four switch series: the 3MNH-Series premium sealed snap-action pushbutton, the 3MN-Series snap-action pushbutton, the 3MS-Series sealed snap-action pushbutton, and the 3MA-Series alternate-action pushbutton. These PC mount pushbutton switches offer a variety of ratings, circuits, contact materials, terminal platings, pushbutton styles, and optional color caps.

The 3S family of sub-miniature pushbutton switches is composed of three switch series: the 3S1-Series subminiature pushbutton switch, the 3SS-Series sealed sub-miniature pushbutton switch, and the 3SM-Series surface mount sealed sub-miniature pushbutton switch. All switches are available with a variety of rating, termination and actuator choices, and will withstand temperatures from -30°C to +85°C.

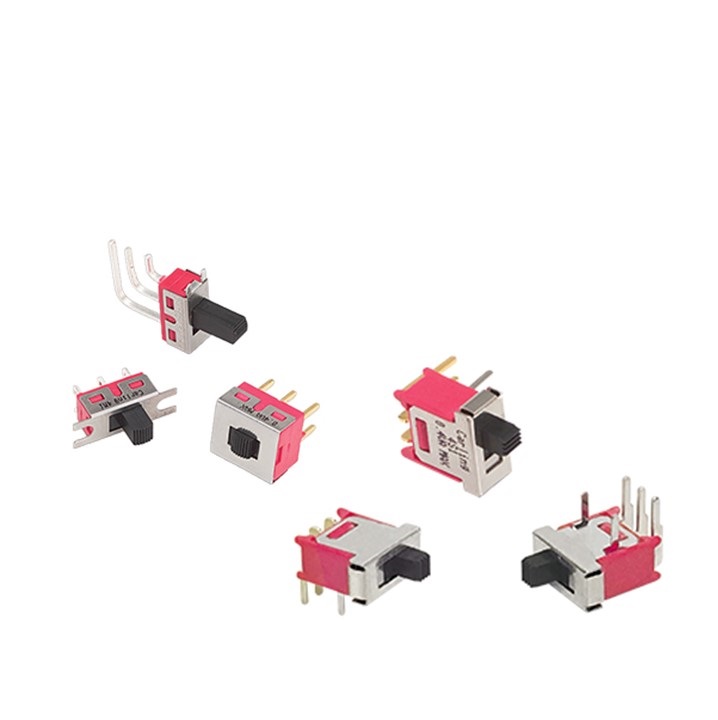

4M & 4S SERIES SLIDE SWITCHES


Carling Technologies offers a variety of sealed and unsealed, non-illuminated 1 & 2 pole UL and CSA approved, slide switches with a variety of mounting options including PC-mount.

The 4M-Series miniature slide switches offer a variety of ratings, circuits, contact materials, and terminal platings. With 14 termination choices and 8 actuator styles, this versatile switch adapts to a variety of applications, and is able to withstand temperatures from -30°C to +85°C.

The 4S-Series sub-miniature slide switches feature maintained and momentary 2 or 3 position circuits, and offer a variety of ratings, contact materials, terminal platings, and mounting styles. These switches are able to withstand temperatures from -30°C to +85°C.
