Standard Board To Board

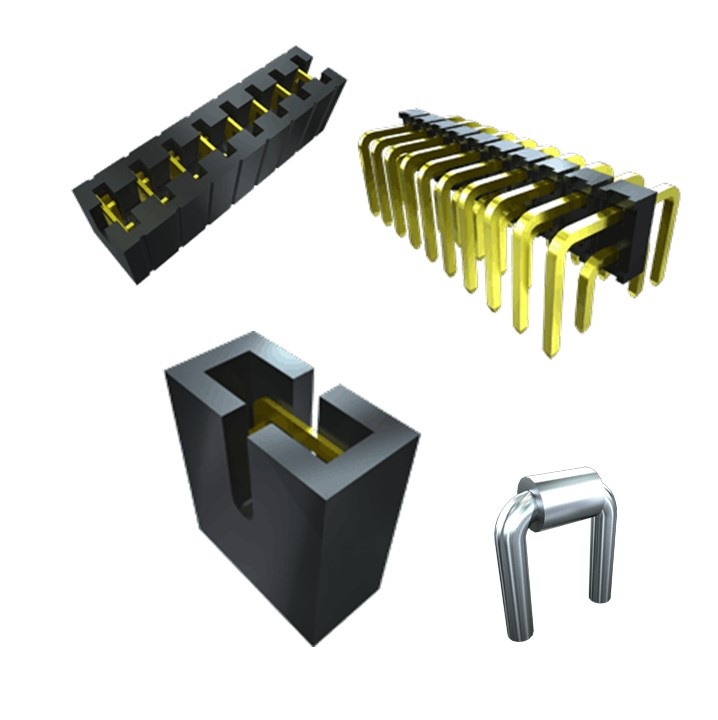

SHUNTS AND JUMPERS


SHUNTS AND JUMPERS
.100" and 2.00 mm pitch shunts and jumpers in single or ganged designs with body color options.

__________________________________________________________________________________________________

SHUNTS AND JUMPERS
Shunts and jumpers for terminal strips.

Features:
- .100" and 2.00 mm pitch shunts and jumpers
- Single and ganged systems
- Micro shunt available
- Choice of colors

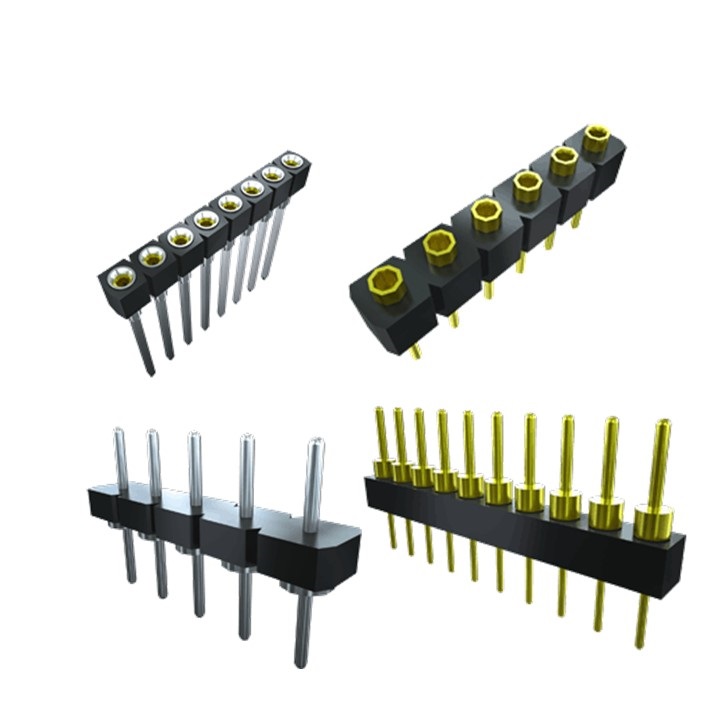

SCREW MACHINE STRIPS


SCREW MACHINE STRIPS
.100” (2.54 mm) pitch socket and terminal strips in low profile and elevated designs, with multi-finger BeCu contacts and precision machined shell for ultimate highreliability.

__________________________________________________________________________________________________

PRECISION SCREW MACHINED STRIPS
High-reliability socket and terminal strips, and board stackers on .100" (2.54 mm) pitch.

Features:
- Multi-finger BeCu contacts
- Precision machined shells
- Ultimate in high reliability
- Low profile to elevated board spacings
- Single and double row
- Wide variety of socket tail and terminal designs

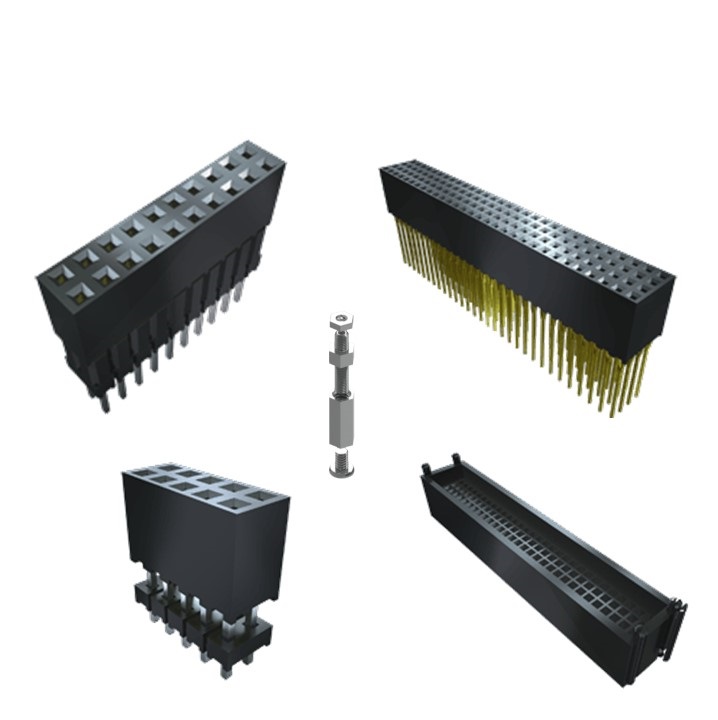

PC/104-PLUS™ SQUARE POST SYSTEMS

PC/104-PLUS™ SQUARE POST SYSTEMS
PC/104™ and PC/104-Plus™ elevated connectors with stack through, non stack through and self-nesting tails, in a choice of through-hole or press-fit terminations.

__________________________________________________________________________________________________

PC/104™ SYSTEMS
Elevated .100" (2.54 mm) pitch square post system.

Features:
- Stack-through and non-stack-through connectors
- Self-nesting .025" (0.635 mm) SQ post tails
- Rugged Tiger Buy™ contacts
- Standard and low insertion force
- Single, double and triple row up to 108 pins

__________________________________________________________________________________________________

PC/104-PLUS™ SYSTEMS
Self-nesting 2.00 mm (.0787") pitch square post system.

Features:
- Stack-through and non-stack-through connectors
- Choice of solder tails or press-fit tails
- Self-nesting 0.50 mm (.0197") SQ post tails
- Rugged Tiger Buy™ contacts

2.00 MM PITCH SOCKETS AND TERMINALS


2.00 MM PITCH SOCKETS AND TERMINALS
2.00 mm pitch sockets, headers, terminals and board stackers in low profile, elevated and high-density designs to connect multiple boards together. Options include vertical and right-angle orientations; through-hole, surface mount, mixed technology, press-fit and pass-through terminations.

__________________________________________________________________________________________________

2.00 MM (.0787") PITCH SOCKET STRIPS
Rugged socket strips with flexibility on three axes.

Features:
- Choice of four contact systems
- Vertical and right-angle/horizontal
- Through-hole, surface mount and press fit
- Standard, low profile and elevated
- One through six rows
- Self-nesting PC/104-Plus™ Sockets
- Pass-through and bottom entry contacts

__________________________________________________________________________________________________

2.00 MM (.0787") PITCH TERMINAL STRIPS
Terminal strips with 0.50 mm (.020") square posts and flexibility on three axes.

Features:
- Flexible terminal strips and board stackers
- Low profile, skyscraper, vertical, right-angle
- Through-hole, surface mount, press fit
- Modify post or stacker height as standard
- One through six rows
- FleXYZ™ design flexibility in three axes
- Self-mating socket/terminal strips

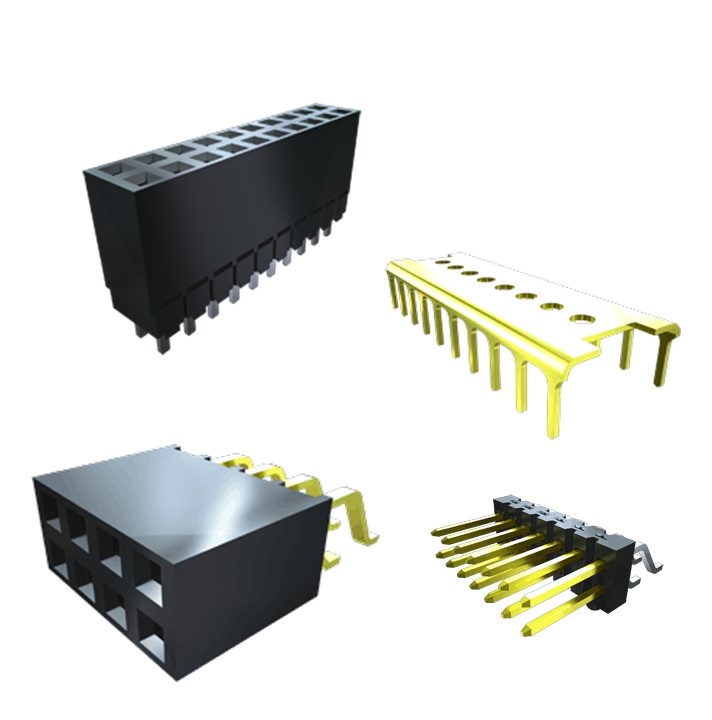

.100


.100" PITCH SQUARE POST SOCKETS AND TERMINALS
.100" (2.54 mm) pitch sockets, headers, terminals and board stackers in low profile, elevated, and high-density designs to connect multiple boards together. Options include vertical and right-angle orientations; through-hole, surface mount, mixed technology, press-fit and pass-through terminations.

__________________________________________________________________________________________________

.100" (2.54 MM) PITCH SQUARE POST SOCKET STRIPS
Flexible stacking .025" (0.635 mm) square post sockets with contact and design flexibility.

Features:
- Choice of three contact systems
- Vertical and right-angle/horizontal
- Through-hole, surface mount and press fit terminations
- Standard, low profile and elevated designs
- Single, double and triple row designs on specific series
- Bottom mount or pass-through styles
- E.L.P.™ certified systems available

__________________________________________________________________________________________________

.100" (2.54 MM) PITCH SQUARE POST TERMINAL STRIPS
Flexible stacking .025" (0.635 mm) square post terminals with contact and design flexibility.

Features:
- Flexible terminal strips and board stackers
- Shrouded, skyscraper and low profile
- Through-hole, surface mount, mixed technology and press fit
- Modify post or stacker height as standard
- Vertical, perpendicular and coplanar mating
- Wide variety of standard options and features including polarization, locking clips, alignment pins, etc.
