Modular Jacks

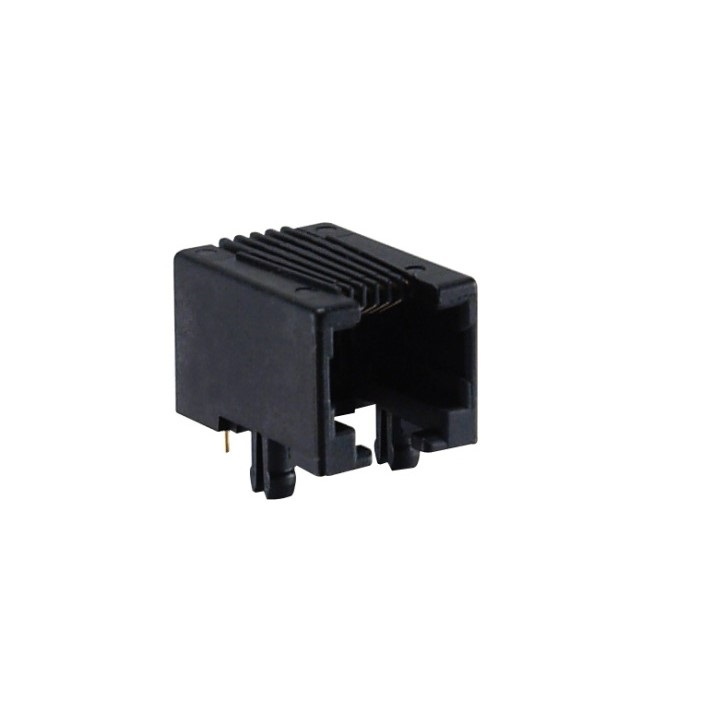

GMXHT


MODULAR JACKS AND PLUGS: GMXHT Series
High Temperature Low Profile Modular Jack
__________________________________________________________________________________________________

Product Features

0.45” Height
Low Profile Design Suitable for PC Add-on Board Applications
Snap in Board Retention Tabs
Available in 4, 6, 8, and 10 Position Housings
Available Fully Shielded for EMI/RFI Protection
CSA/NRTL Certified File No. LR78160

__________________________________________________________________________________________________


Performance Specifications
Materials and Finish Housing Material: High Temperature Thermoplastic, UL 94V-0 Rated, Black Color Shield Material Copper Alloy, Nickel Plated
Contact Material :Phosphor Bronze

__________________________________________________________________________________________________


Electrical Characteristics
Insulation Resistance: 500 Megohms Min.
Dielectric Withstanding Voltage: 1000V RMS, 60Hz
Contact Resistance: 20 milliohms Max.
Current Rating: 1.5A
Voltage Rating: 125V DC
Operating Temperature: -40°C to +80°C
Durability: 500 Mating Cycles Min

GMX


MODULAR JACKS AND PLUGS:GMX Series
Right Angle Modular Jack, Low Profile

__________________________________________________________________________________________________


Product Features
0.45” Height
Low Profile Design Suitable for PC Add-On Board Applications
Snap in Board Retention Tabs
Available in 4, 6, 8, and 10 Position Housings
Available Fully Shielded for EMI/RFI Protection
CSA/NRTL Certified File No. LR78160
__________________________________________________________________________________________________


Performance Specifications
Materials and Finish Housing Material: PBT Thermoplastic, UL 94V-0 Rated, Black Color Shield Material Copper Alloy, Nickel Plated
Contact Material: Phosphor Bronze
__________________________________________________________________________________________________



Electrical Characteristics
Insulation Resistance: 500 Megohms Min.
Dielectric Withstanding Voltage: 1000V RMS, 60Hz
Contact Resistance :20 milliohms Max.
Current Rating: 1.5A
Voltage Rating :125V DC
Operating Temperature: -40°C to +85°C
Durability: 500 Mating Cycles Min.

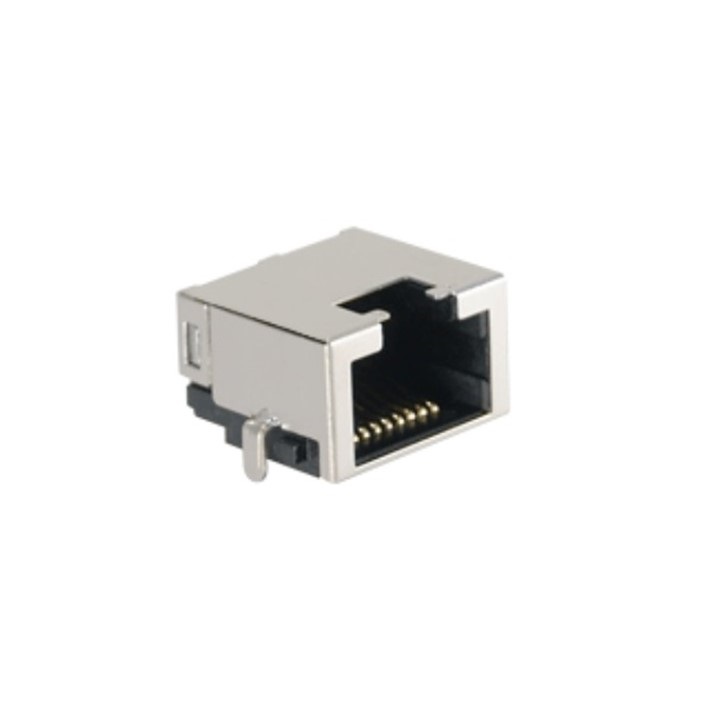

GMJXHT-MM-S-88


MODULAR JACKS AND PLUGS: GMJXHT Series
Low Profile Mid Mount Modular Jack

__________________________________________________________________________________________________
Product Features
Low Profile Design
Available in 8 Position Housing
Available Fully Shielded for EMI/RFI Protection
Mid Mount
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Material : High Temperature Thermoplastic, UL 94V-0 Rated, Black Color Shield Brass, Nickel Plated
Contact Material : Phosphor Bronze
Plating: Standard- Nickel Underplating, Gold Flash Plating on Contact Area Gold Flash Plated on Solder Area 50 Option: Nickel Underplating, 50µ" Gold Flash Plating on Contact Area Gold Flash Plated on Solder Area
__________________________________________________________________________________________________

Electrical Characteristics

Rated Current 1.5A
Rated Voltage 125V DC
Insulation Resistance 500 Megohms Min.
Contact Resistance 20 milliohms Max.
Dielectric Withstanding Voltage 1000V AC for 1 Minute


__________________________________________________________________________________________________
Mechanical Characteristics

Durability Rating :500 Mating Cycles Min.
Operating Temperature -40°C to +85°C

*Recommended PCB Thickness: 1.2mm

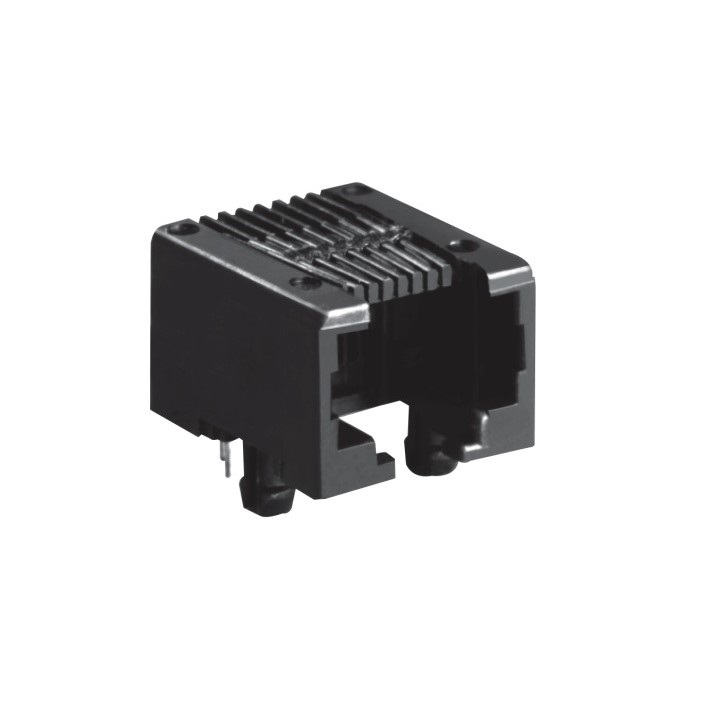

GLX


MODULAR JACKS AND PLUGS: GLX Series
Right Angle Modular Jack
__________________________________________________________________________________________________

Product Features
0.570" Height Snap-In Board Retention Tabs Available in 4, 6, 8 and 10 Position Housings CSA/NRTL Certified File No. LR78160 UL File No. E134345
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Material: PBT Thermoplastic, UL 94V-0 Rated
Contact Material: Phosphor Bronze
__________________________________________________________________________________________________

Electrical Characteristics

Insulation Resistance: 500 Megohms Min.
Dielectric Withstanding Voltage: 1000V RMS, 60Hz
Contact Resistance: 20 milliohms Max.
Current Rating: 1.5A
Voltage Rating: 125V DC

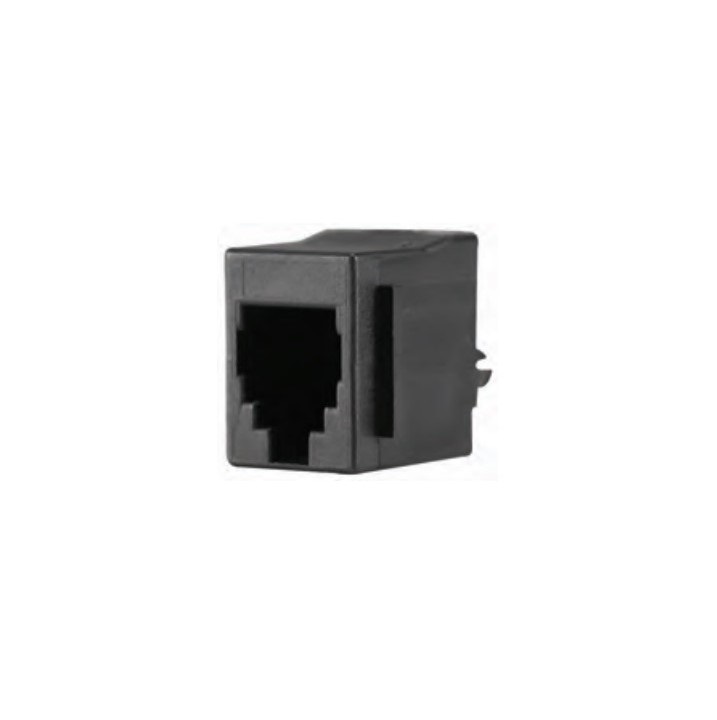

GDX


MODULAR JACKS AND PLUGS: GDX Series
Right Angle Modular Jack
__________________________________________________________________________________________________

Product Features
0.595" Height
Snap-In Board Retention Tabs
Panel Stops Available
Available in 4, 6 and 8 Position Housings
CSA/NRTL Certified File No. LR78160
UL File No. E134345
__________________________________________________________________________________________________

Performance Specifications
Materials and Finish Housing Material :PBT Thermoplastic, UL 94V-0 Rated, Black Color
Contact Material :Phosphor Bronze
__________________________________________________________________________________________________

Electrical Characteristics
Insulation Resistance: 500 Megohms Min.
Dielectric Withstanding Voltage : 1000V AC for 1 Minute
Contact Resistance : 20 milliohms Max.
Current Rating : 1.5A
Voltage Rating : 125V DC
Operating Temperature: -40°C to +85°C

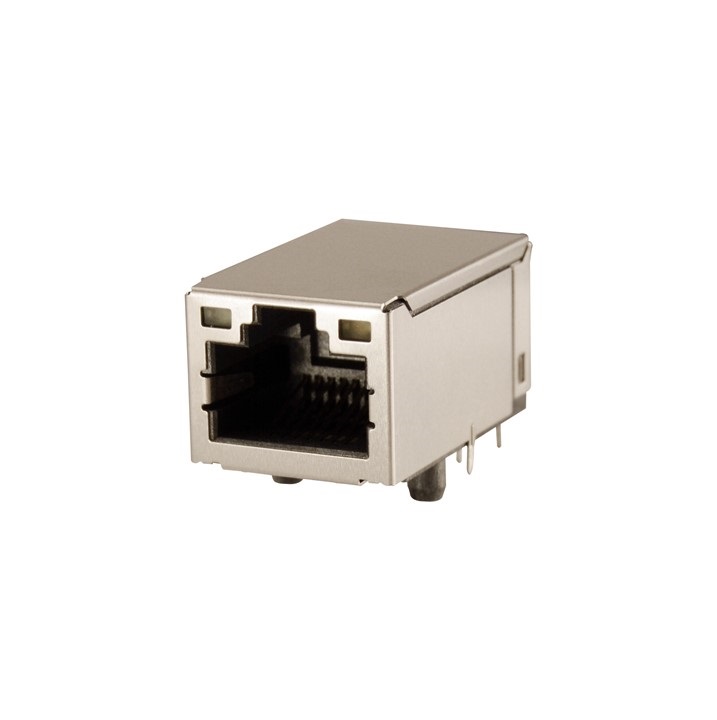

GDWLX


MODULAR JACKS AND PLUGS: GDWLX Series
Vertical PCB Mount
__________________________________________________________________________________________________

Product Features
Easy Viewing LEDs to Act as Power/Transmit Indicators
Available Fully Shielded for EMI/RFI Protection
Available Through Hole
CSA/NRTL Certified File No. LR78160
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Housing Material: PBT Thermoplastic, Glass Filled, UL 94V-0 Rated, Black Color
Contact Material: Phosphor Bronze
Shield Material :Copper Alloy, Nickel Plated
__________________________________________________________________________________________________

Electrical Characteristics
Insulation Resistance :500 Megohms Min.
Dielectric Withstanding Voltage :1000V rms, 60Hz
Contact Resistance : 20 milliohms Max.
Current Rating :1.5A

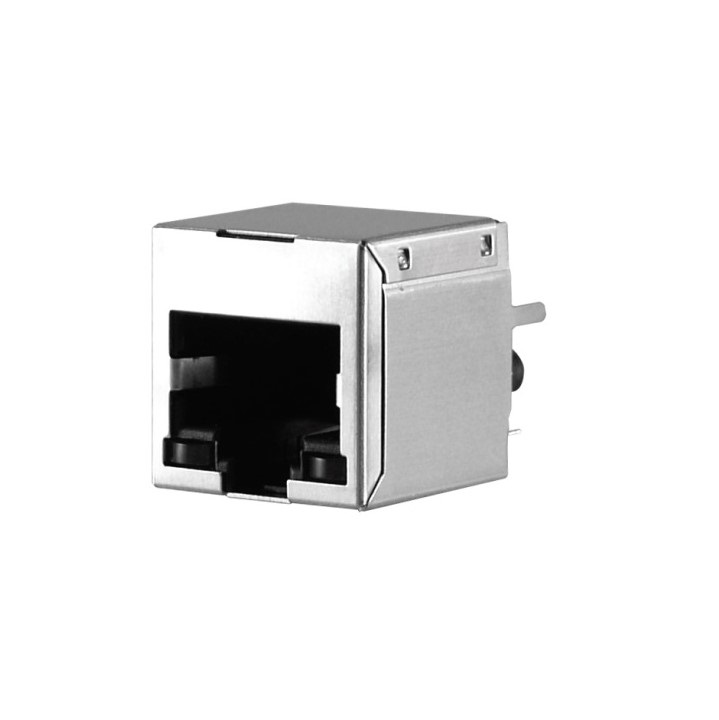

GDTX


MODULAR JACKS AND PLUGS: GDTX Series
Vertical CAT5 Modular Jack
__________________________________________________________________________________________________

Product Features

Fully Shielded to Reduce EMI/RFI
Snap in Board Retention Tabs
CSA/NRTL Certified File No. LR78160
Fully Shielded for Category 5 Application
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Material: PBT Thermoplastic, UL 94V-0 Rated, Gray Color
Shield Material: Copper Alloy, Nickel Plated
Contact Material : Phosphor Bronze
__________________________________________________________________________________________________

Electrical Characteristics

Insulation Resistance :500 Megohms Min.
Dielectric Withstanding Voltage: 1000V RMS for 1 Minute
Contact Resistance: 20 milliohms Max.
Current Rating :1.5A
Voltage Rating :125V DC
Operating Temperature: -40°C to +85°C
Durability : 500 Mating Cycles Min

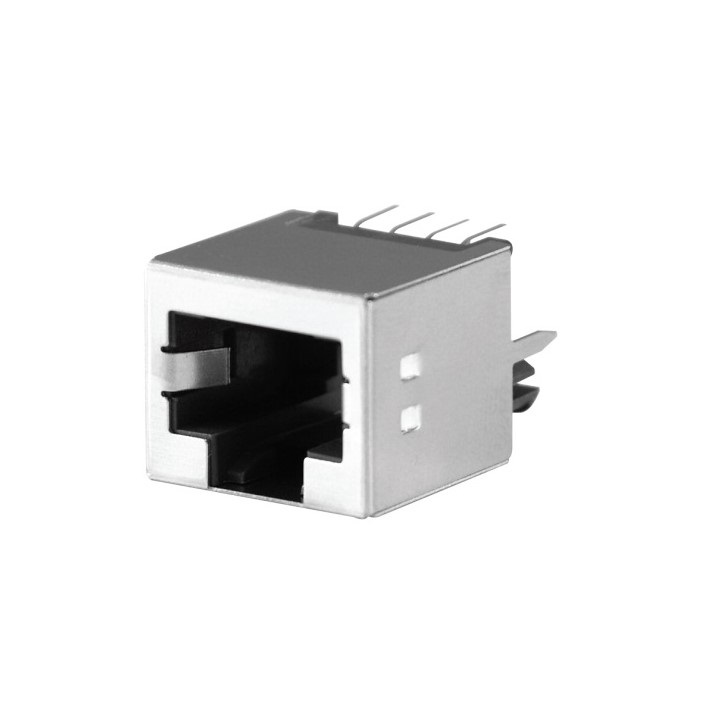

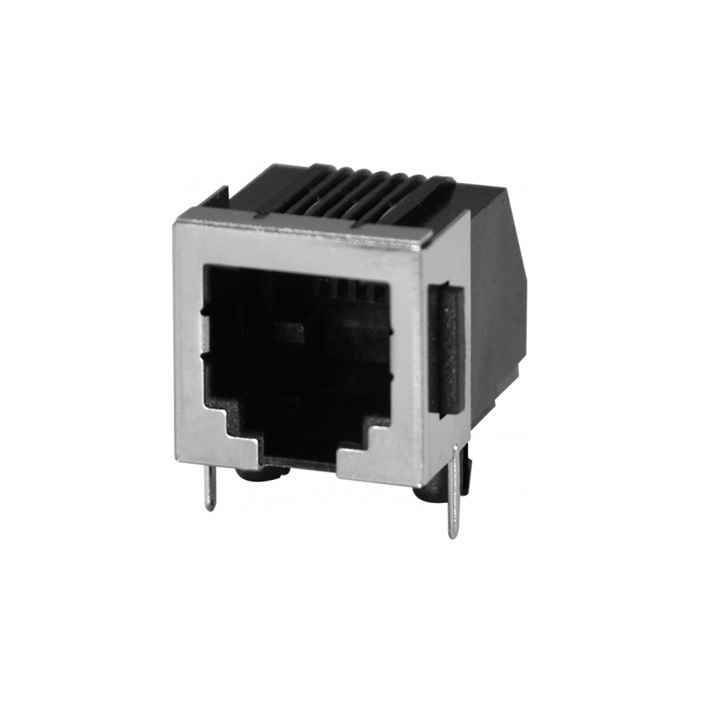

GDLX


MODULAR JACKS AND PLUGS: GDLX Series
Right Angle Modular Jack
__________________________________________________________________________________________________

Product Features

Available in SMT and Reflow Compatible
Through Hole Designs
Panel Stops, Shielding and Keying Options Available
Snap-In Board Retention Tabs
CSA/NRTL Certified File No. LR78160
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Material: GDLX - PBT Thermoplastic, Glass Filled, UL 94V-0 Rated, Black Color GDLX-SMT - High Temperature Thermoplastic, Reflow Compatible, UL 94V-0 Rated, Black Color
Shield Material : Copper Alloy, Nickel Plated
Contact Material : Phosphor Bronze
__________________________________________________________________________________________________

Electrical Characteristics
Insulation Resistance: 500 Megohms Min.
Dielectric Withstanding Voltage: 1000V AC for 1 Minute
Contact Resistance: 20 milliohms Max.
Current Rating: 1.5A
1.0A (GDLX-SMT)
Voltage Rating: 125V DC

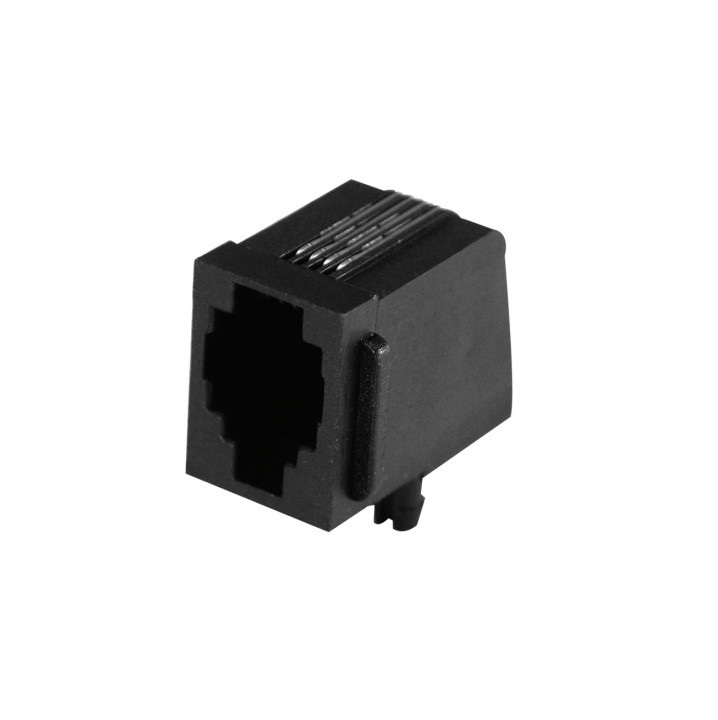

GDCX-P


MODULAR JACKS AND PLUGS: GDCX-P Series
Vertical Through Hole
__________________________________________________________________________________________________

Product Features

Available in 4, 6, and 8 Position Housings
Vertical Mount
Through Hole Contacts
CSA/NRTL Certified File No. LR78160
UL File No. E134345
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Material :PBT Thermoplastic, UL 94V-0 Rated, Black Color
Contact Material :Phosphor Bronze
__________________________________________________________________________________________________

Electrical Characteristics

Insulation Resistance :500 Megohms Min.
Dielectric Withstanding Voltage :1000V RMS, 60Hz
Contact Resistance :20 milliohms Max.
Voltage Rating :125V DC
Current Rating: 1.5A
Operating Temperature :-40°C to +85°C
Durability Rating :500 Mating Cycles Min.

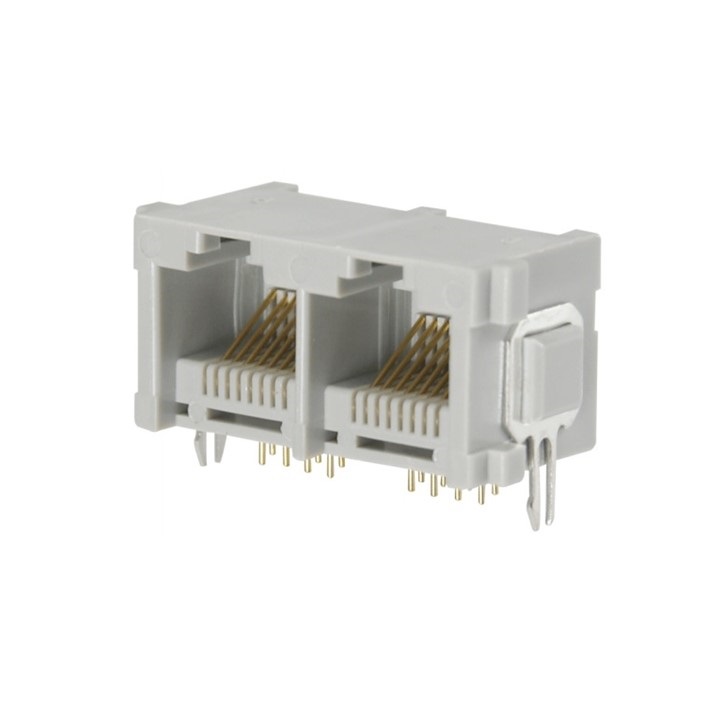

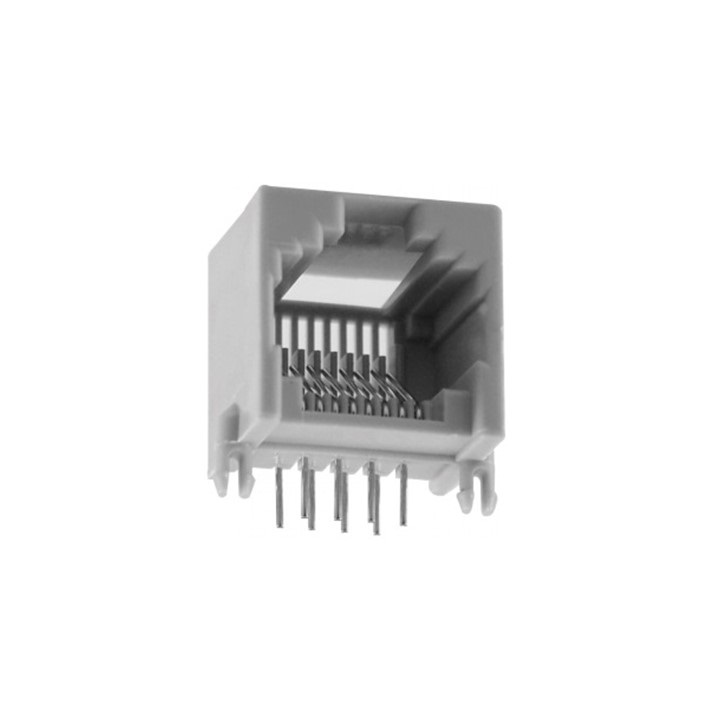

GAX


MODULAR JACKS AND PLUGS: GAX Series
Right Angle Ganged Jack
__________________________________________________________________________________________________

Product Features
:
- Available in 6 and 8 Position Housings
- Right Angle Version
- Ribbed Pin Guides
- Metal Locking Brackets
- CSA/NRTL Certified File No. LR78160
__________________________________________________________________________________________________

Performance Specifications

Materials and Finish Housing Material :Thermoplastic, UL 94V-0 Rated, Gray Color
Contact Material :Phosphor Bronze
__________________________________________________________________________________________________

Electrical Characteristics
Insulation Resistance : 500 Megohms Min.
Dielectric Withstanding Voltage :1000V AC RMS for 1 Minute
Contact Resistance :20 milliohms Max.
Current Rating : 1.5A
Voltage Rating : 125V DC

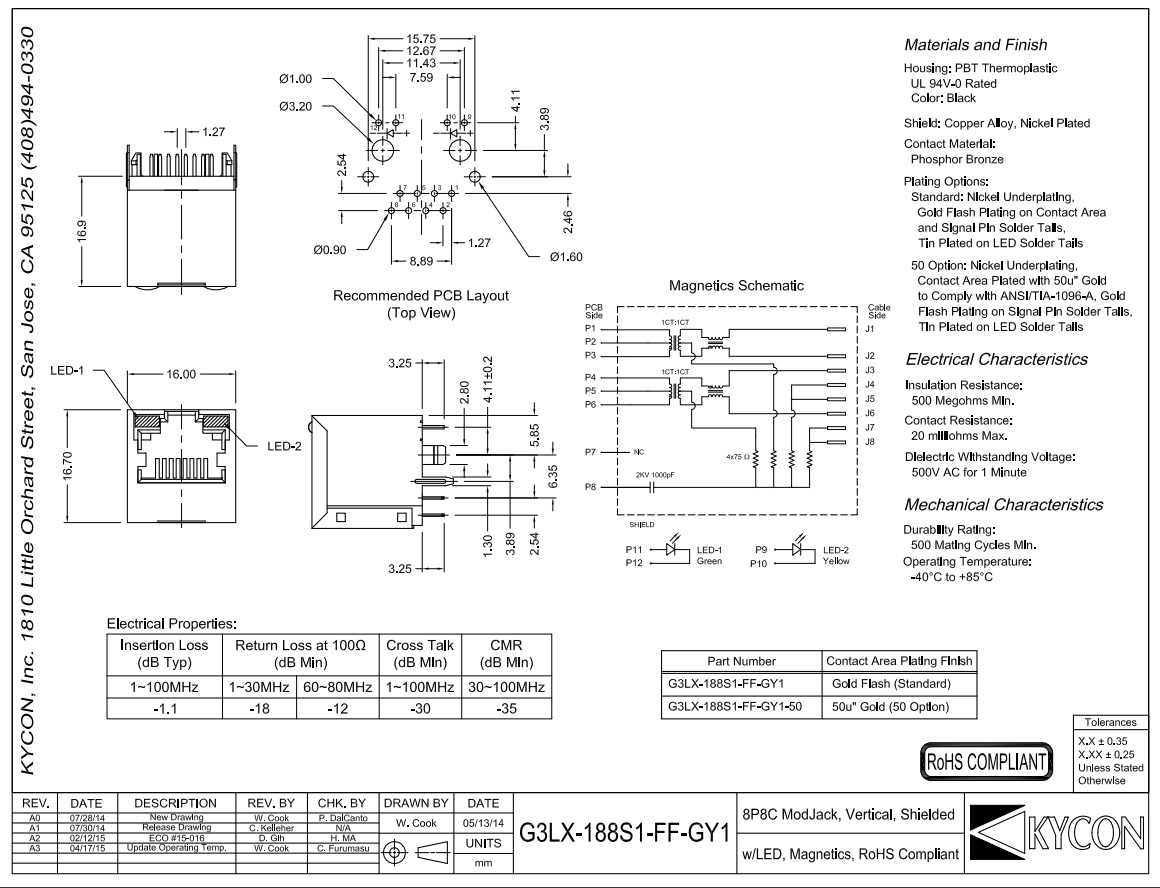

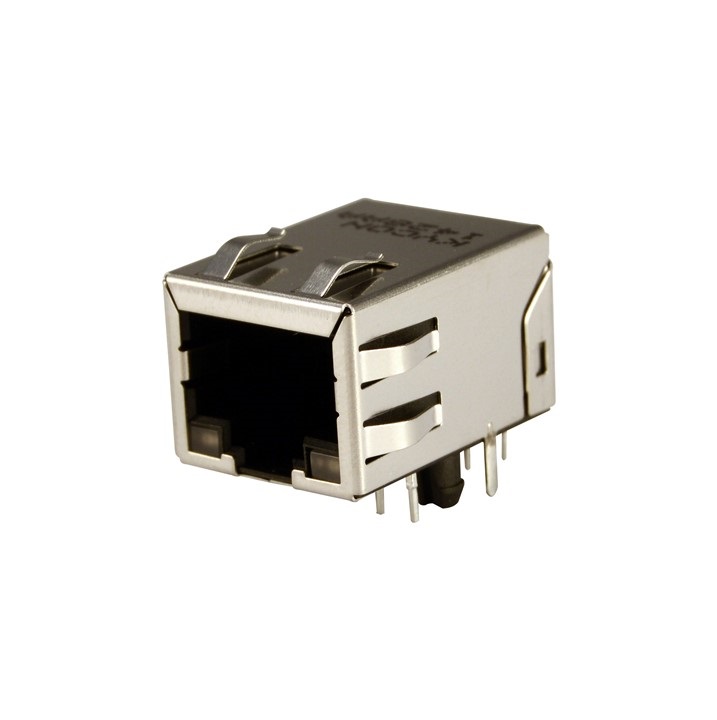

G3LX

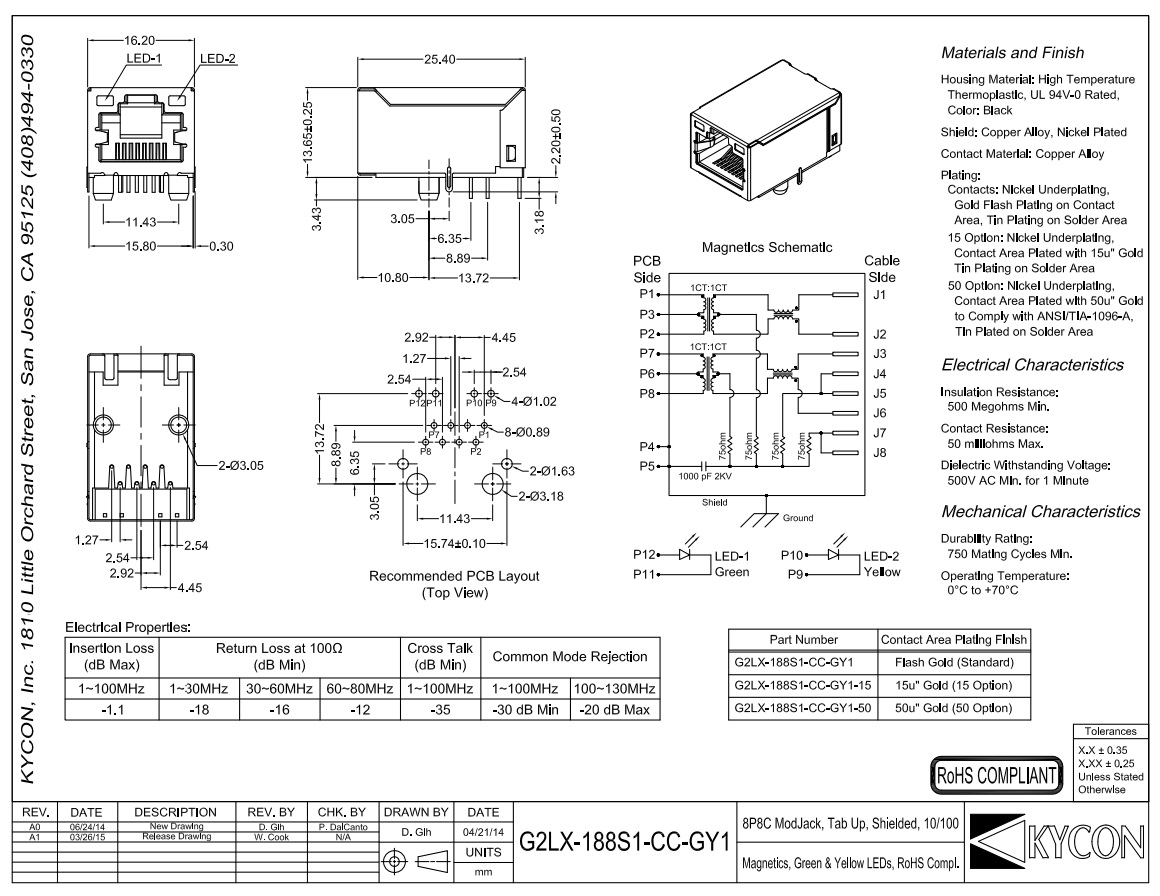

G2LX

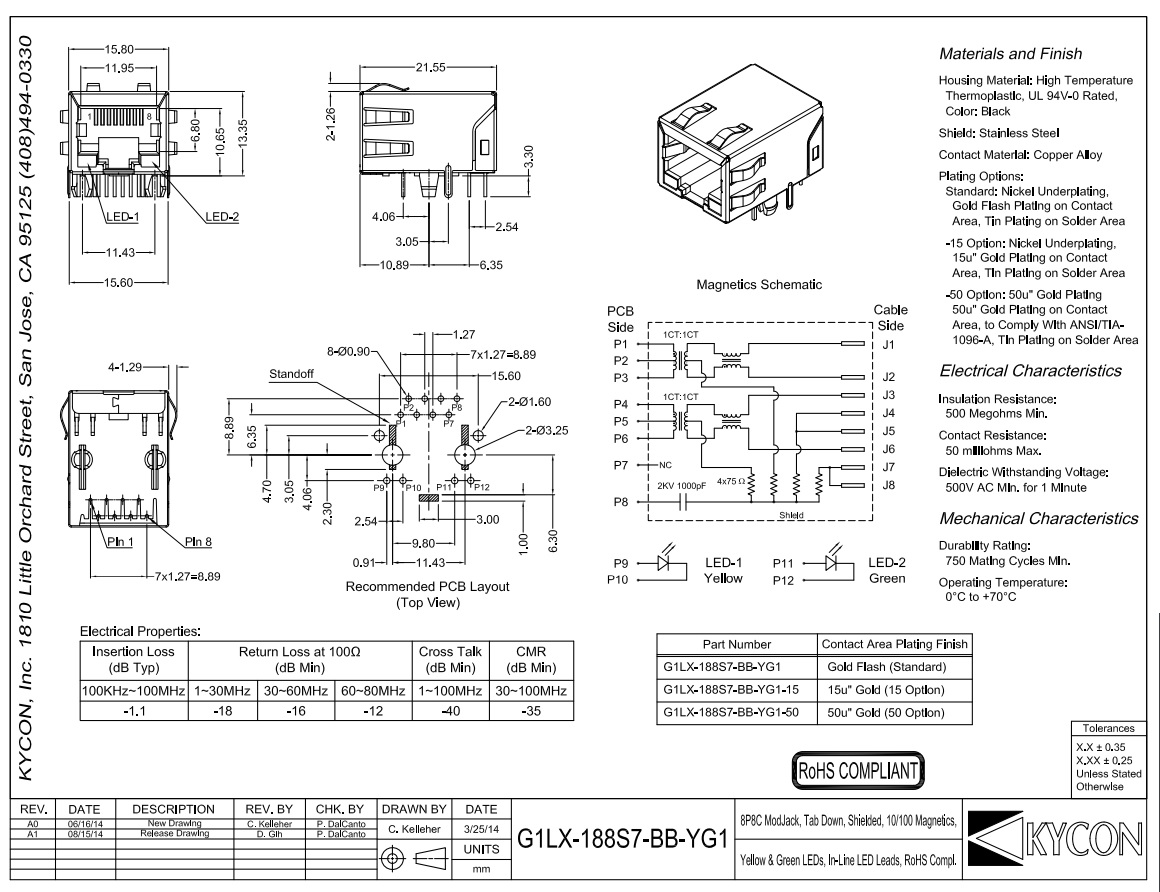

G1LX
