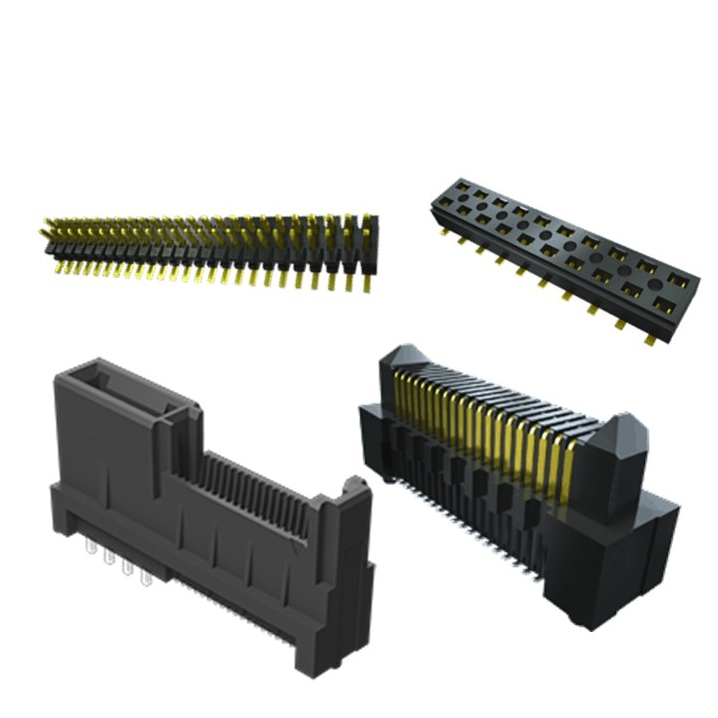

E.L.P.™ products are tested to rigorous standards which evaluate contact resistance in simulated storage and field conditions. These connectors pass 10 year Mixed Flowing Gas (MFG) and achieve high mating cycles (250 to 2,500).

E.L.P.™ PRODUCTS
Products tested to rigorous standards which evaluate contact resistance in simulated storage and field conditions.

Features:
- Passed 10 year Mixed Flowing Gas (MFG)
- High-mating cycles (250 to 2,500)
- Variety of high-reliability, rugged contact systems
- Various connector types and pitches available

ONE-PIECE RUGGED & POWER


ONE-PIECE RUGGED & POWER

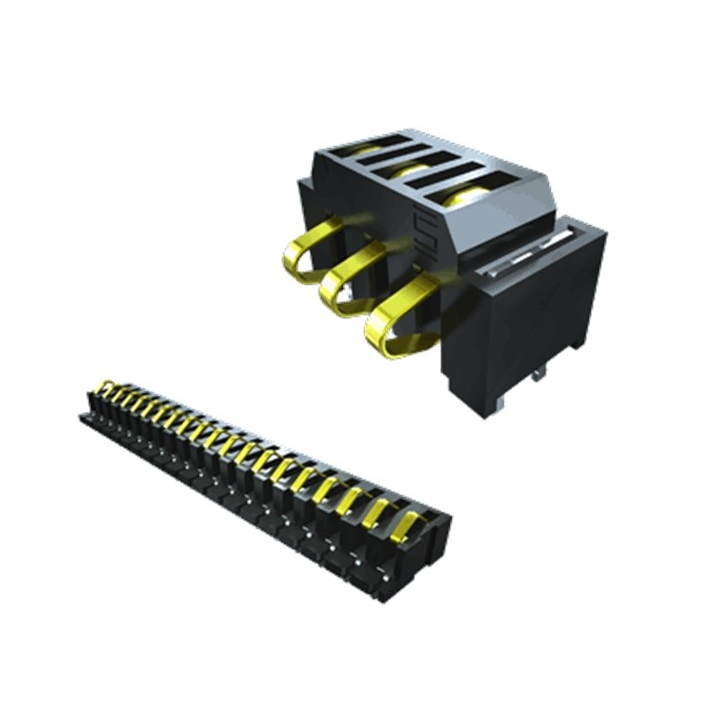

One-piece connectors with robust design and mechanical hold-downs for high-shock and vibration applications, available in a variety of pitch designs with profiles from 1.65 mm to 10 mm.

.100" (2.54 MM) PITCH ONE-PIECE INTERFACES
Rugged one-piece interfaces for superior power or signal performance and reliability.

Features:
- Power or signal applications
- Large contact deflection
- Vertical and right-angle designs
- Elevated profile

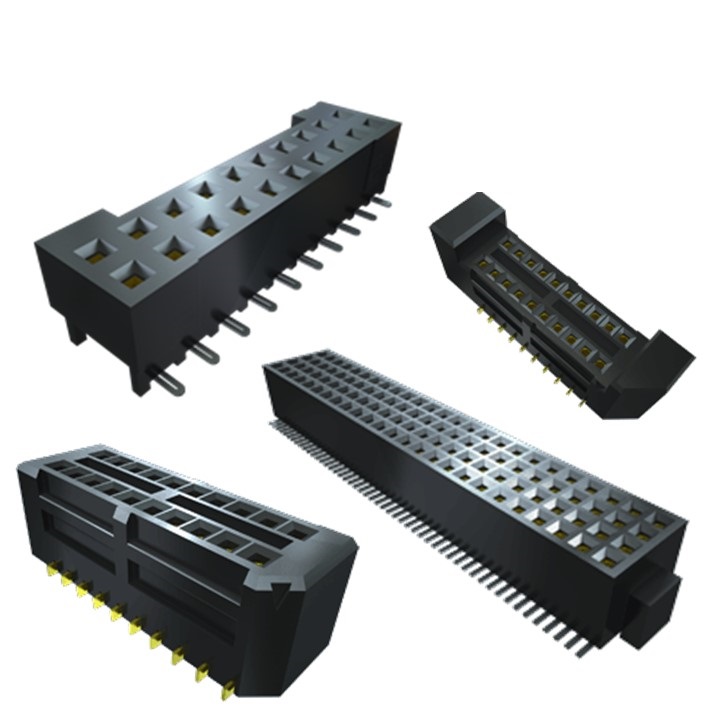

MICRO PITCH ONE-PIECE
1.00 mm and .050" pitch one-piece interfaces for rugged and power applications.

Features:
- For high-shock, vibration, rugged applications
- Elevated and low profiles from 3 mm to 10 mm
- Optional screw mounts and alignment pins
- Single and double row designs

POWER/SIGNAL SYSTEMS


Simplicity and reliability make the multimec 3C an excellent switch for build-in and over-mould solutions. In addition the switch is great for foil overlay as it can still function even if the overlay breaks and an upgrade can be done by changing the foil and not the PCB, which is very cost-effective.

3CSH9 is a high temperature surface mount switch
3CTH9 is a high temperature through-hole switch

Specifications:

  • surface mount / through-hole
  • 50mA/24VDC
  • single pole
  • momentary
  • 10.000.000 operations lifetime
  • sealed to IP67
  • 3.5N actuation force
  • temperature range: -40/+160oC

Multimec 3C series has the actuator extended out of the switch body

POWER SYSTEMS


Multimec 3A is for caps with hinges in order to imitate rocker-function switches. Because of this type of caps the travel of the 3A switch is 2 mm. 3

3ASH9 is a high temperature surface mount switch
3ATH9 is a high temperature through-hole switch

Specifications:

  • surface mount
  • 50mA/24VDC
  • single pole
  • momentary
  • 10.000.000 operations lifetime
  • sealed to IP67
  • 3.5N actuation force
  • temperature range: -40/+160oC

Multimec 3A series has an actuator levelled with the switch body.
Possible caps: 1A/1M/1ZA; 1B+2C/2D; 1ZB

MICRO RUGGED BOARD-TO-BOARD


Illumec 4F series is a special illuminated switch with the same slide-on cap retention system as Multimec 3F series.

4FSH9 is a surface-mount illumination switch
4FTH9 is a through-hole a high temperature switch designed to provide excellent illumination

Specifications:

  • through-hole / surface mount
  • 50mA/24VDC
  • single pole
  • momentary
  • 10.000.000 operations lifetime
  • switch sealed to IP 67
  • 3.5N actuation force
  • switch temperature range: -40/+160⁰C

4F series is a special illuminated switch switch with the same slide-on cap retention system as Multimec 3F series.
Possible caps: 1X, 1W, 1T/1U/1V, 1S, 1P/1Q, 1N, 1K, 1D/1E/1F
