Edge Card Connector Systems

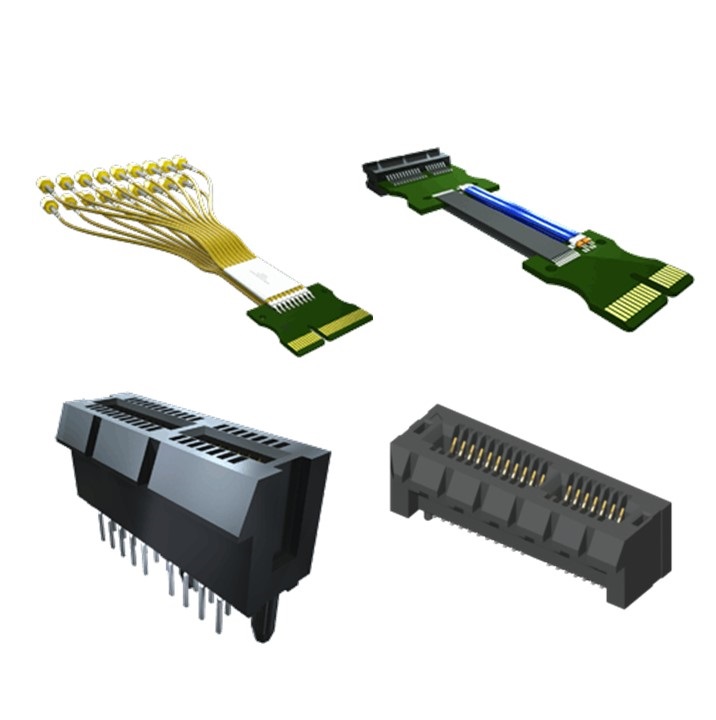

PCI EXPRESS®


PCI EXPRESS®
High-speed edge card sockets support one, four, eight and sixteen PCI Express® links and mate with PCI Express® cable assemblies.

__________________________________________________________________________________________________

PCI EXPRESS®
High-speed edge card sockets designed for mating with PCI Express® jumpers and extenders.

Features:
- PCI Express® compatible system
- Supports 1, 4, 8 and 16 PCI Express® links
- Vertical or right-angle PCB mount and card edge mount
- 1.00 mm (.0394") pitch
- Alignment pins
- 7 GHz / pin (14 Gbps / pin)
- Accepts 1.60 mm (.062") card
- Polarized

MSA TRANSCEIVERS


MSA TRANSCEIVERS
Edge card socket and cage interface in 2x10, 2x15 or 2x35 positions for mating with SFP, SFP+, XFP and XENPAK transceivers.

__________________________________________________________________________________________________

SFP, SFP+ SYSTEMS
Transceiver interface sockets and cages, single or ganged.

Features:
- Mates with SFP, SFP+, XFP, or ZENPAK transceivers
- Connectors and cage available
- 20, 30, or 70 I/Os
- 2x10 position for SFP, SFP+ transceivers
- 2X10, 2X15, 2X35 for XENPAK and XFP transceivers
- Press-fit or through-hole solder leads on cages
- Available individually or as a kit (SFPK Series)

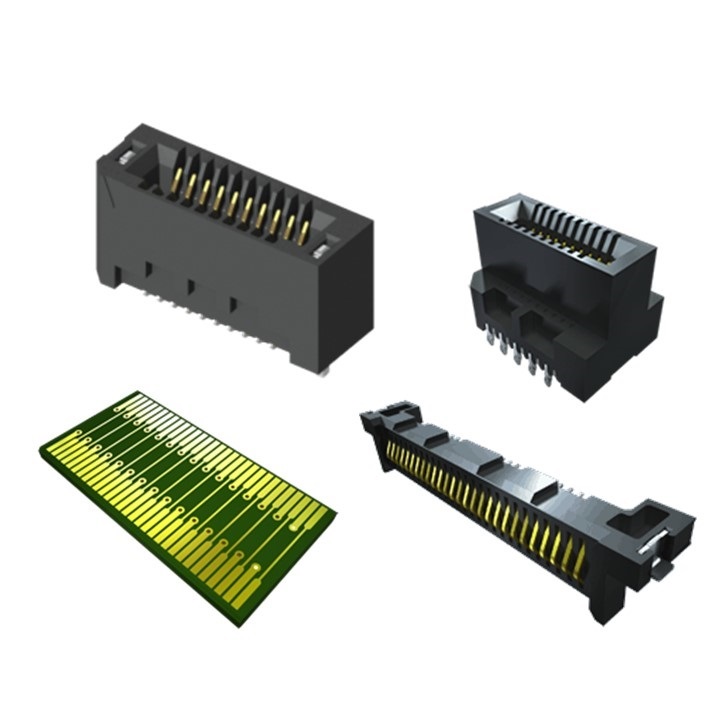

HIGH-SPEED CARD SYSTEMS


HIGH-SPEED CARD SYSTEMS
High-speed edge card sockets in vertical, right-angle, and edge mount designs with choice of 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm and 2.00 mm pitch.

__________________________________________________________________________________________________

HIGH-SPEED (0.80 MM) PITCH EDGE CARD
High-speed edge card sockets with rugged Edge Rate® contacts.

Features:
- Performance: Up to 18.5 GHz / 37 Gbps
- Rugged Edge Rate® contacts
- Card slot: 1.60 mm (.062")
- Single-ended and differential pairs
- Vertical, right-angle, edge mount
- Optional board locks and cable latching features
- Optional weld tab for mechanical strength
- RU8 system for elevated board stacking

__________________________________________________________________________________________________

1.00 MM PITCH HIGH-SPEED EDGE CARD
1.00 mm pitch high-speed edge card sockets with rugged Edge Rate® contacts and misalignment mitigation.

Features:
- Performance up to 14 GHz / 28 Gbps
- Rugged Edge Rate® contacts decrease crosstalk and increase cycle life
- 20 – 140 total pins
- Accepts .062" (1.60 mm) thick cards
- Optional weld tab and alignment pin

__________________________________________________________________________________________________

MICRO EDGE CARD SYSTEMS
Micro pitch edge card sockets in a variety of centerlines and orientations.

Features:
- Performance: Up to 14.5 GHz / 29 Gbps
- Solutions for .062" (1.60 mm), and .093" (2.36 mm) thick cards
- Choice of pitch: 0.50 mm, 0.635 mm, 0.80 mm, 1.00 mm, 1.27 mm, 2.00 mm
- Vertical, right-angle, edge mount
- Available in surface mount and through-hole

__________________________________________________________________________________________________

PCI EXPRESS® EDGE CARD
High-speed edge card sockets designed for mating with PCI Express® jumpers and extenders.

Features:
- PCI Express® compatible system
- Supports 1, 4, 8 and 16 PCI Express® links
- Vertical or right-angle PCB mount and card edge mount
- 1.00 mm (.0394") pitch
- Alignment pins
- 7 GHz / pin (14 Gbps / pin)
- Accepts 1.60 mm (.062") card
- Polarized

__________________________________________________________________________________________________

MICRO TCA CONNECTORS
Micro TCA edge card connector supports hot plugging and high-speed serial connections.

Features:
- Performance: Up to 12.0 GHz/24 Gbps
- Compliant to µTCA™ standard architecture
- Form/fit/function compatibility with Molex
- Press-fit tails
- Supports hot plugging and high-speed serial connections
- Contacts: Up to 170 I/Os
- Card slot: 1.60 mm (.063”)

__________________________________________________________________________________________________

MINI EDGE CARD SYSTEM
Mini edge card sockets with optional card guides.

Features:
- Available with or without card guides
- Various plating options
- Contacts: Up to 50 I/Os
- Card slot: .8mm (.0315”), 1.60 mm (.062”)

__________________________________________________________________________________________________

SERIAL ATA LINK CARD SOCKET
High-speed micro plane socket accommodates variable mating card thickness.

Features:
- Tremendous board stacking, routing flexibility
- Mount in pairs onsame side or opposite side for easy routing
- SATALink™ compatible
- Variable mating card thickness
- Low profile
- Large deflection BeCu contact

__________________________________________________________________________________________________

SFP, SFP+ SYSTEMS
Transceiver interface sockets and cages, single or ganged.

Features:
- Mates with SFP, SFP+, XFP, or ZENPAK transceivers
- Connectors and cage available
- 20, 30, or 70 I/Os
- 2x10 position for SFP, SFP+ transceivers
- 2X10, 2X15, 2X35 for XENPAK and XFP transceivers
- Press-fit or through-hole solder leads on cages
- Available individually or as a kit (SFPK Series)
