2G/3G/LTE

TG.22

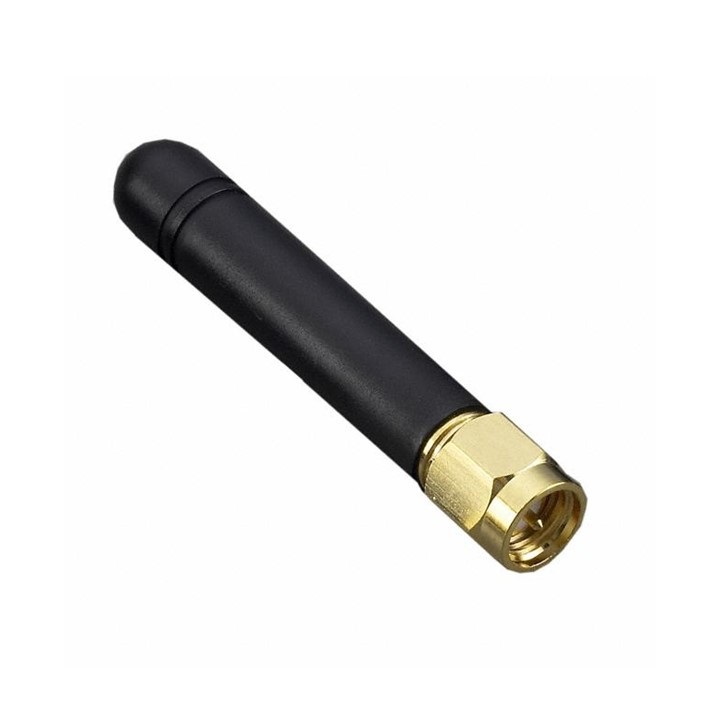

The TG.22.0152
Penta-band GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA 800MHz to 2200MHz monopole helical antenna is a quality robust antenna with high gain in small form factor. Connection is made via fixed right angle RP-SMA(M) connector with a hardened waterproof PU casing, this antenna is the ideal GSM antenna for telematics devices.

Electrical Specifications:
Frequency Range:  800MHz to 2200MHz
Bands: GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA
VSWR: ≤ 2.3
Power Handling: 20W
Polarization: Linear
Impedance: 50 Ohms
Connector: RP-SMA(M)RA

Environmental & Mechanical Characteristics:
Temperature: -40°C to +85°C
Radome Color: Black
Radome Material: Pu
Weight: 6g

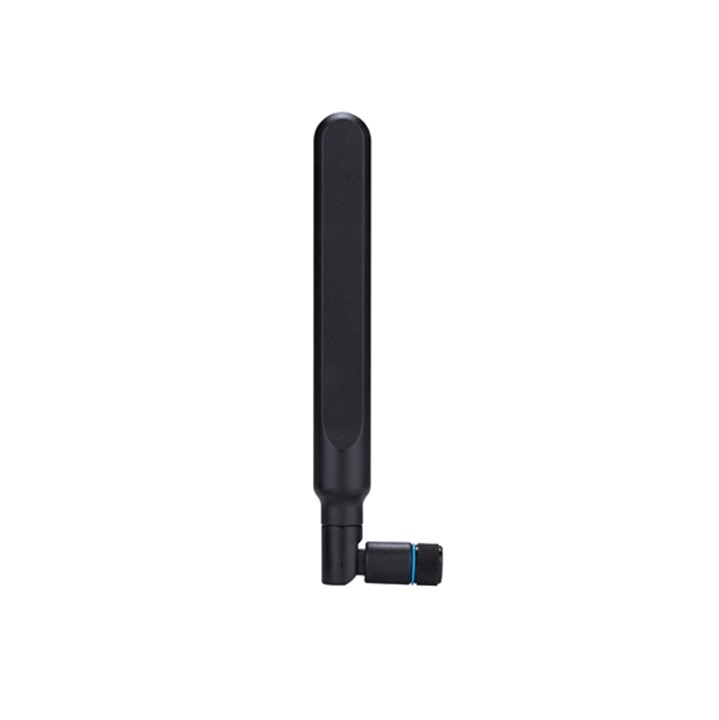

TRITON TG.10R


The TG.10R
Triton dipole Antenna with AntD© Resistor – is primarily designed for use with CDMA modules with ssisted GPS. It does not require a ground-plane to connect to. It has a quality robust PUS housing for use with wireless terminals. The antenna has a SMA(M) connector. It can be used straight or hinged 90 degrees. The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI. AntD© allows connected radio products using the latest cellular modules and recommended circuits from Telit and uBlox to perform diagnostics on the antenna. This includes detection that the proper antenna is connected and that the connection isn’t shorted or broken.

Electrical Specifications:
Integrated Resistor: Shunt 10K Ohm (+/- 5%) to Ground
Polarization Linear
Radio Pattern Omni
Input Power 50 W

Mechanical and environmental Specifications:
Dimensions Length: 168mm,Φ13mm
Connector: Hinged SMA Male
Casing: PU
Temperature Range: -40°C ~ +85°C
Humidity: Non-condensing 65°C 95% RH

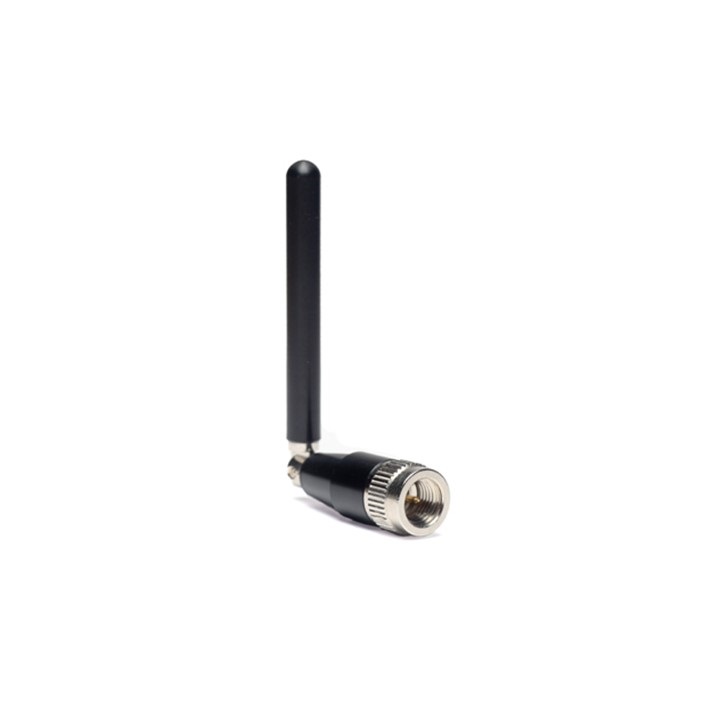

TG.09


The TG.09 Penta-band Cellular Hinged Rotatable SMA antenna is a high efficiency monopole antenna. Compared to other much larger antennas on the market, it has superior wide-band high efficiency characteristics. This antenna is used by many of the leading wireless device providers in the world marketplace.
The unique rotatable hinge design enables the user to rotate the antenna to the best angle for an optimal cellular signal reception. As the upper antenna element can move in any direction, it also reduces damage from impact force from any angle to the antenna, compared to traditional hinged right angle or fixed fight angle designs or straight antennas.
The tiny dimensions of this antenna coupled with excellent RF performance and an aesthetic high end design feel make it the ideal cellular antenna for routers, vehicle tracking devices, telematics devices, remote monitoring systems, POS devices.
The TG.09 as all monopole antennas works best connected directly to the ground-plane of the device main-board. Taoglas offers support services to characterize antenna efficiency on your individual device ground-plane.
The TG.09 antenna also supports LTE 700MHz band applications when it is directly connected to ground-planes with lengths above 60mm.

Features:
- 700MHz to 3800MHz
- GSM/CDMA/HSPA/UMTS
- 700*/850/900/1700/1800/1900/2100/2300/3500/3700
- Rotatable hinge design for optimal reception
- Top quality housing with brass hinge and connector
- Extended operation temperature range
- RoHS Compliant

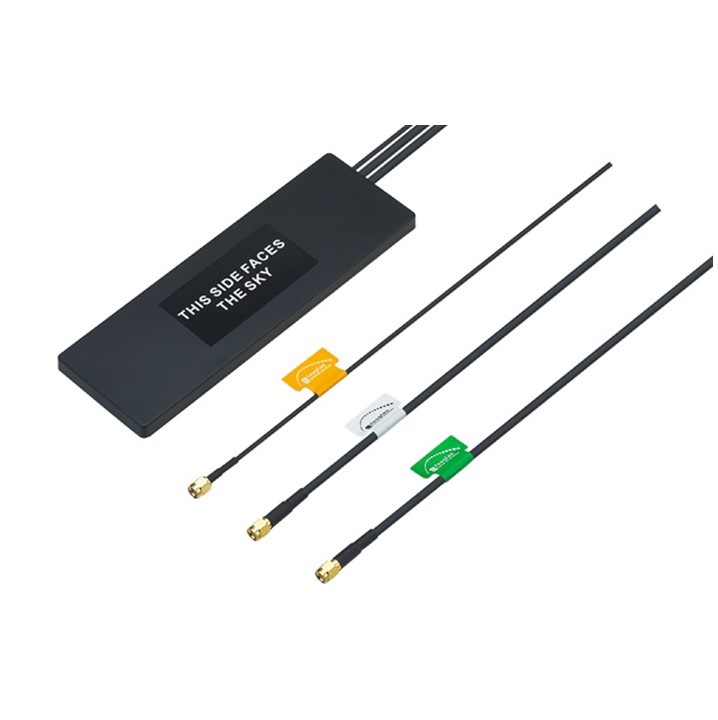

STREAM MA230


The Stream 3in1 MA230 GPS/Glonass, LTE Cellular 2G/3G/4G and Wi-Fi 2.4/5GHz antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in telematics, transportation and remote monitoring applications. The Stream 3in1 is unique in the market as it combines the highest possible efficiency and peak gain for GPS/Glonass, Wi-Fi dual-band 2.4/5GHz and all cellular bands in 2G/3G/4G in a low profile compact format for mounting via high quality first tier automotive approved 3M adhesive foam.
Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.
Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module.
For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits.

GPS/Glonass
The patent pending design incorporates internally a custom Taoglas 35mm patch antenna on an extended integral ground-plane to deliver more than 3.5dBiC gain. A front-end SAW filter dramatically reduces radiated spurious emissions.

Cellular 2G/3G/4G
The extended ground-plane used with an innovative internal cellular PIFA also enables the unique wide-band 2G/3G/4G response to deliver the highest performance possible, at 3 metres cable length. Nothing else out there comes close in terms of consistency of efficiency and peak gain at all cellular bands, with 70%+ at the LTE 700MHz band, again including 3 metres of cable loss. High antenna efficiencies are absolutely critical in today’s 3G and 4G systems to achieving targeted data-speeds and coverage.

Wi-Fi dual-band 2.4/5GHz
A powerful antenna gives maximum gain and coverage for common applications. 3dBi+ stable gain on both bands including cable loss means the antenna is ideal for high bandwidth applications.
All this is done while still maintaining 20dB isolation between antennas. The Stream uses shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, and high noise rejection, with an average loss of only 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Stream maximizes chances of passing PTCRB and network approvals first time. The Stream works best when attached to plastic or glass, but can also be used on metal if a minimum of 40mm foam spacing is added.

Features:
- High Performance
- Adhesive Mount Combination Antenna
- GNSS - GPS/Glonass
- Cellular - LTE/HSPA/GSM/CDMA/UMTS
- Wi-Fi - 2.4/5 GHz
- Description IP67 Antenna
- GPS/ Glonass: 3M RG-174 SMA(M)
- 1.8~5.5V/30dB
- Cellular 2G/3G/4G: 3M Low Loss CFD-200 SMA(M)
- Wi-Fi: 3M Low Loss CFD-200 RP- SMA(M)
- Dimensions: 200.5*66.5*9mm

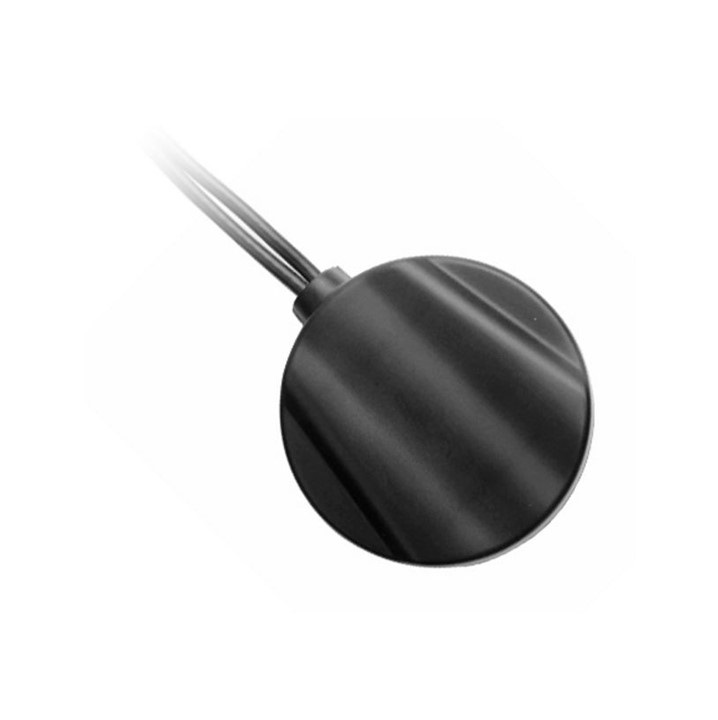

STINGRAY MA204


STINGRAY MA204
This is a 2in1 combination high performance GPS/GLONASS and Penta-band Cellular (GSM / CDMA/PCS/DCS/ / UMTS / GPRS / EDGE / HSPA) antenna to simplify AVL or Fleet management antenna systems worldwide. Its high quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. This combination of a high gain GPS/GLONASS antenna and a leading edge pentaband cellular antenna is ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks. The standard version has 3 metres RG174 cable and SMA(M) connector on both GPS/GLONASS and cellular. The cables and connectors are completely customizable according to customer request.

Features:
GPS/GLONASS
High LNA Gain up to 28 dB
Antenna Gain 28 ± 2 dB
Miniaturized to 55*11.8mm
Low Noise 2.2 dB max

Cellular:
Advanced penta-band cellular antenna
(GSM/CDMA/PCS/DCS/UMTS/GPRS/EDGE/HSPA)

Other:
Water Resistant IP 65 (IP 67 “W” version also available on request)
Quality textured covert design. Low profile
UV resistant ABS housing
Comes with high grade 3M double sided tape for quick and easy mounting
Customizable cables and connectors

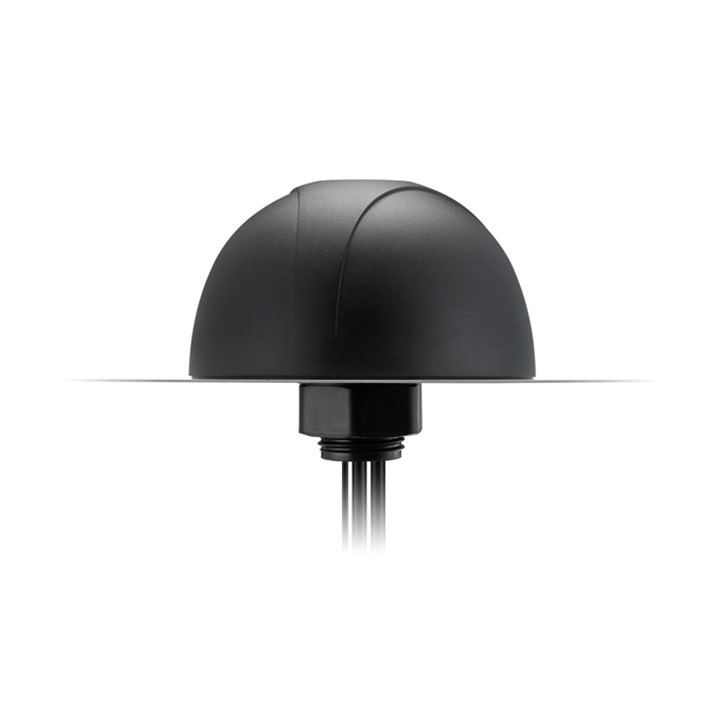

PANTHEON MA705


The Pantheon MA705 antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. The Pantheon series is designed for RF professionals who accept no performance compromises whatsoever. The MA705 combines a 3in1 GPS/GLONASS, Cellular 700MHz to 2200MHz (2G/3G/4G) and 2.4GHz/5GHz antenna with the highest efficiency and peak gain possible. Unlike our competitors who don’t measure cable loss the specification is measured at 3 meters (10ft) to show real performance in the field. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted.
Antenna includes a high isolation gasket to reduce risk of high voltage current on the mounting area, which prevents metal area short circuiting through the cable.
All while still maintaining 20dB isolation between antennas. It uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, and high noise rejection, with an average loss of only 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Pantheon maximizes chances of passing PTCRB and network approvals first time. The Pantheon also has excellent performance without need to attach to an external ground-plane due to its internal antennas coupling to its unique super strong integrated metal base. The antenna comes with a 3M adhesive waterproof layer to prevent water leaking under the antenna into the mounting hole. The Pantheon can also be supplied in single GPS/GLONASS, Cellular, Wi-Fi only versions, or at other frequencies.

Features:
- Pantheon Antenna 3in1 MA.705
- Screw-Mount (Permanent Mount)
- GPS/GLONASS/ LTE Cellular/ 2.4GHz/5GHz Combination antenna
- Cellular
* 700/850/900/1700/1800/2100MHz
* LTE/GSM/CDMA/UMTS/HSPA
- GPS/GLONASS 1575~1602MHz – 4 dBiC
- 2.4GHz/5GHz 4dBi (incl. 3m cable)
- I-P67 Waterproof
- High Efficiency / Peak Gain Outdoor Antenna
- Advanced RF Design and Materials
- Heavy Duty – Integrated Metal Base/ Ground-plane
- ABS High Isolation Gasket
- Custom cables and connectors available
- RoHS Compliant

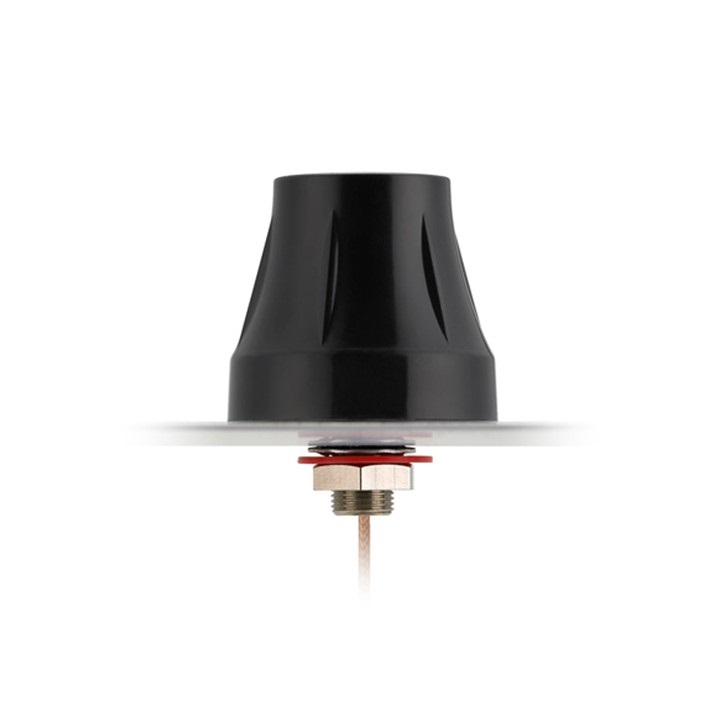

OLYMPIAN G30


This G30.wm, wall mounted G30 Olympian antenna is a high performance screw mount wide-band cellular antenna with stainless steel L-bracket to allow it to be mounted on a wall or panel. Omni-directional high gain and high efficiency across all bands ensures constant reception and transmission. This is vital for today's high data bandwidth applications in video and mobile broadband.

Durable UV resistant ABS housing is resistant to vandalism and direct attack. At only 48mm in height it is small enough to mount unobtrusively in most locations. This antenna is mounted on metal and plastic structures and is locked from the inside of the structure by a nut. Adhesive foam at the base provides a watertight seal to the mounting structure. High quality waterproof and corrosion resistant Teflon jacket RG316 is used for the cable.

Two of these G30 separated at distance from each other are ideal for the latest LTE MIMO spatial diversity applications.

Customized cable length and connectors are available. Taoglas recommend a minimum cable length of 70mm when used on a ground plane to achieve an efficiency of greater than 40% in the 900MHz band and greater than 60% in the 1800MHz band. For longer cable lengths and if 700MHz band is required, it is necessary to use the MA740 Pantheon for 2G/3G/4G or the MA741 2g/3G/4G MIMO Pantheon.

Features:
- Olympian Direct Mount Ultra Wide-Band
- LTE/Cellular/CDMA Antenna For
- 2G/3G/4G Applications
- LTE/GSM/CDMA/DCS/PCS/WCDMA/UMTS /HSDPA/GPRS/EDGE/IMT
- 698 to 960MHz and 1710 to 2700MHz
- Heavy duty screw mount
- UV and vandal resistant ABS housing and thread.
- L- shaped bracket
- IP67 compliant
- Standard is 1M RG-316 SMA(M)
- Cables and Connectors Customizable

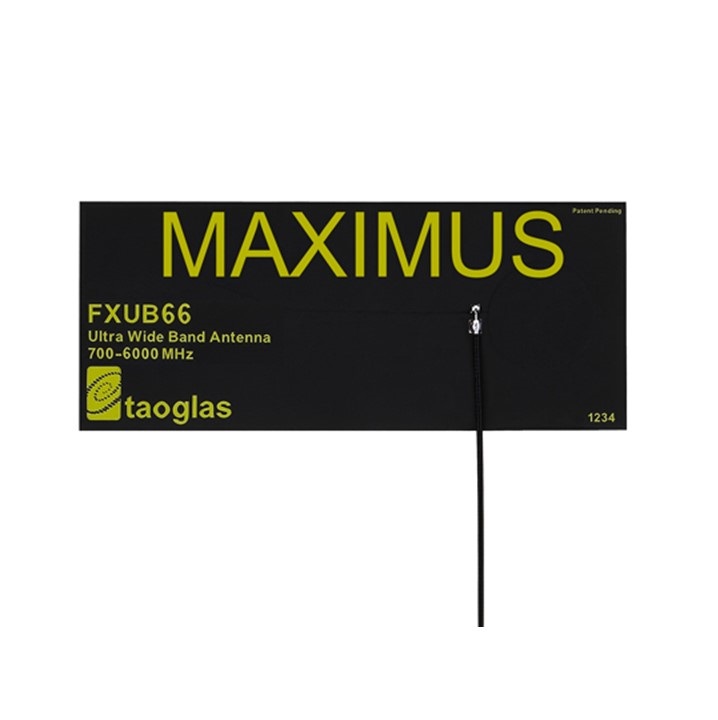

MAXIMUS FXUB66


The patent granted Maximus FXUB66 flexible ultra wideband antenna has been designed to cover all working frequencies
in the 700-6000 MHz spectrum, including all Cellular, Wi-Fi, ISM and GNSS bands. Its use in a device improves substantially the radiated power and sensitivity, and enables the highest throughput rates of today’s broadband devices.

The antenna is delivered with a flexible body with ground breaking high efficiencies on all bands, ground-plane independent, with a cable and connector for easy installation. It is made of durable flexible polymer, with a peak gain of 5dBi, an efficiency of more than 60% across all cellular bands and is designed to be mounted directly onto a plastic or glass enclosure / cover.

At 120.4x50.4x.2mm, the antenna is ultra thin. It is assembled by a simple “peel and stick” process, attaching securely to non-metal surfaces via 3M adhesive. It enables designers to use only one antenna that covers all frequencies and future proofs device design for LTE and 4G globally.

It is also the ideal antenna to fit in devices that are being retrofitted with wireless functionality, as it will cover non cellular
applications such as 868, 915MHz or Zigbee applications. It’s inherently wide bandwidth is more resistant to detuning
than traditional small but narrow-band legacy antennas.

The Maximus antenna has a unique hybrid design. Within one antenna structure the electromagnetic waves travel in two
predominant propagation modes - one for lower frequencies, (e.g. LTE at 700 MHz) and the other for higher 4G and Wi-Fi frequencies up to 6GHz.

It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product, as the same antenna can be used if the radio module is upgraded to work on a different frequency band. Cables and connectors are customizable.

Features:
- Patent Granted
- Ground Plane Independent
- 700-6000MHz
- 5 dBi Peak Gain
- Efficiencies above 60% on all cellular 2G/3G/4G bands
- 120.4x50.4x0.2 mm size
- U.FL Compatible

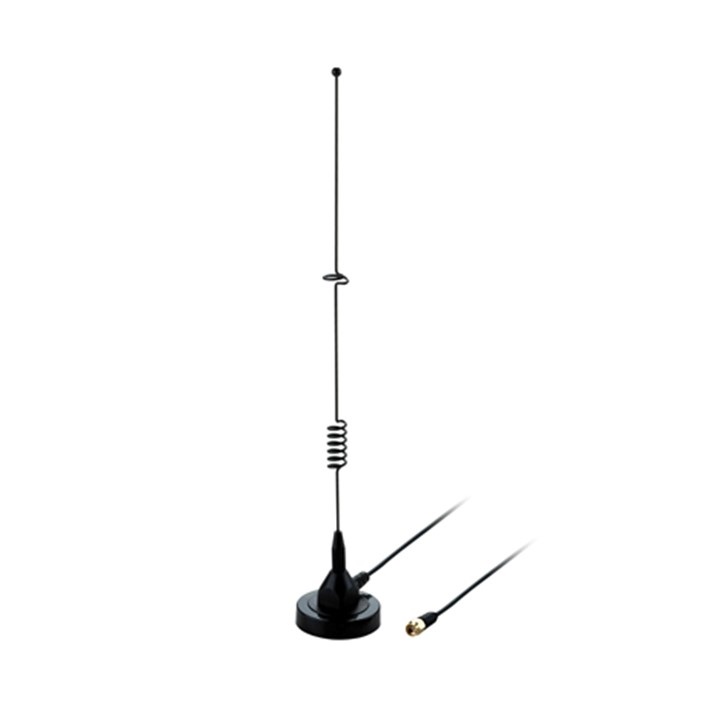

GA.110


The GA.110 magnetic ultra-wideband cellular antenna delivers stable high omni-directional gain and efficiencies across all common 2G, 3G and 4G global cellular bands from 700 MHz to 3.5 GHz.

This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 3G to 4G. Being magnetic mount it is designed to be mounted on a ground plane for optimal performance.

A reliable return loss of <10dB when mounted on a metal plate ensures it complies with the industry standards set by
module makers and networks worldwide. Taoglas recommends using the antenna with 1m cable length or less and
can provide customized connectors and cable lengths upon customer requirements.

The strong magnet base is extremely stable and robust, using only high quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage.s

Features:
- LTE / GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE / GPS / Wi-Fi
- 698MHz to 960MHz, 1575.42MHz,
- 1710MHz to 2700MHz, 3500MHz
- 1M RG174 Cable, SMA(M) Connector
- Typical 40% Efficiency and 3dBi Peak Gain
- Robust High Strength Super Magnet Mount
- Custom cables and connectors available

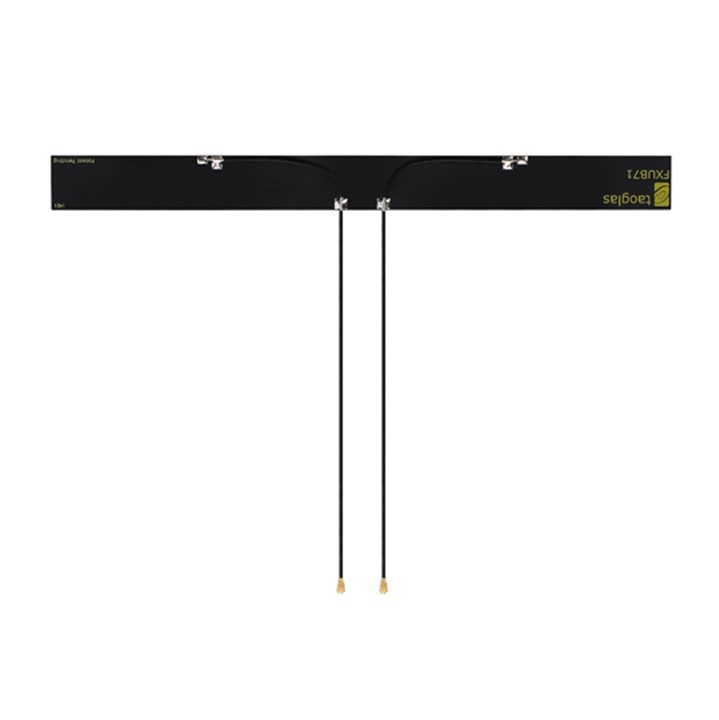

FXUB71 WIDE BAND FLE


The patent pending FXUB71 antenna is an industry leading embedded LTE 2*2 MIMO flexible polymer monopole type antenna for worldwide LTE applications, which also works equally well on 2G and 3G applications. The antenna comes with a micro coax cable and connector, and has good efficiency and isolation between ports, critical for optimal LTE wireless performance.

Typical applications
- LTE Gateways and Routers
- High speed HD streaming
- LTE Access Points
- High capacity MIMO networks for Public Transportation

With over 40% efficiency on all bands, isolation performance between the two ports is under -10dB in all bands. The antenna has been designed in a slim rectangular form-factor, with its own automotive quality 3M 467 adhesive backing tape, to ensure good isolation and convenient installation into typical M2M/IOT devices. Simply peel and stick onto your plastic housing.

The antenna is tuned to work on a reference ABS plastic of 2mm of thickness which is a common standard for most device plastics. Cable routing has been carefully planned to ensure no cross-over of cable, and a logical and hassle free installation. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency.

Features:
- Embedded Flexible 4G LTE MIMO 2*2 Antenna with 150mm 1.37 IPEX MHFI (U.FL) 698 MHz to 3GHz
- Worldwide LTE Functionality with 3G and 2G
- (HSPA / GSM / CDMA /DCS /PCS / WCDMA / UMTS / GPRS / EDGE / GPS / 2.4GHz Wi-Fi)
- 240mm*21mm*0.15mm
- 150mm Φ1.37 Coaxial cable
- I-PEX MHFI HT (U.FL compatible) Connector
- 3M Adhesive Tape for Peel and Stick Mounting
- Cable and connector are customizable

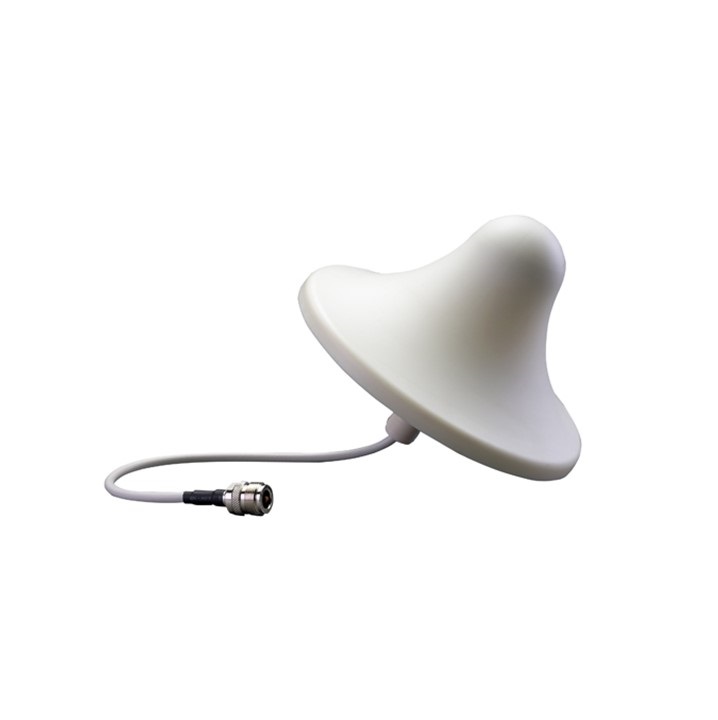

CRUSADER CM.02


Taoglas Ceiling Mount Antenna CM.02 is a wideband antenna solution, 700 MHz to 6GHz, covering all cellular, LTE, Wi-Fi and WiMAX applications in one antenna. The antenna has high peak gain and efficiency across all bands enabling very wide coverage areas and high speed data rates. The radiation pattern has excellent Omni-directional properties at all frequencies, a unique feature of this wide-band antenna compared to other designs in the market which tend to have nulls at certain bands. This antenna would provide all CPE and Hotspot needs literally “under one roof”.

Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module.

For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits.

The attractive, extremely light, and covert design allows the antenna to be easily mounted on a ceiling, and would be suited to any indoor area that would require a wireless network - hotels, conference centre’s, exhibition halls, offices, retail outlets etc. The design is not obtrusive, only 97.5mm in height, and would blend into any environment.

Features:
- Ceiling-mounted 3dBi Wide-band Antenna
- 700MHz to 6GHz
- Boosts coverage and data-rate performance of following communication systems
- LTE/GSM/CDMA/HSPA/UMTS/WCDMA / WIFI/ WIMAX/ ISM
- High peak gain, high efficiency ceiling antenna
- Custom cables and connectors available

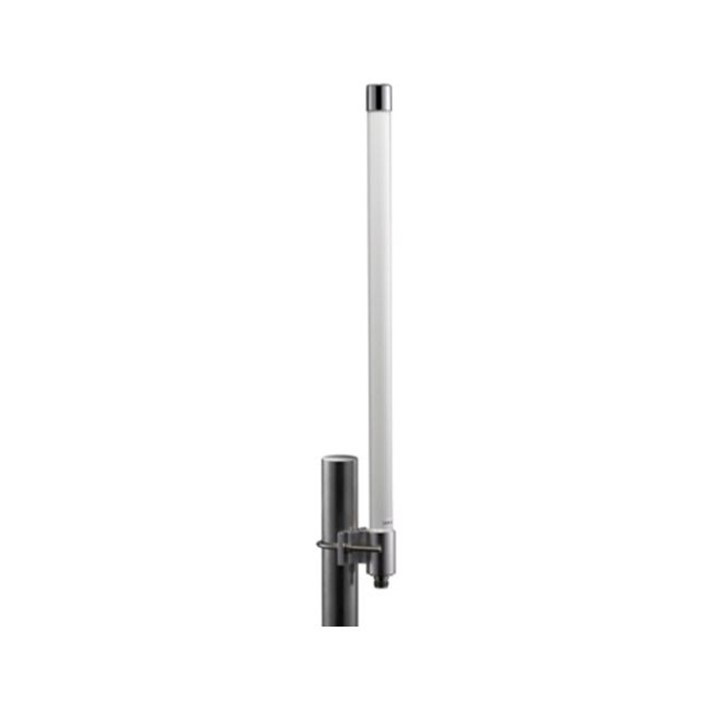

BARRACUDA OMB.8912.05F21


The Penta-band cellular Barracuda Outdoor antenna is designed to a have long distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in robust outdoor environment, pole-mounting and wall-mounting bracket is included.
The antenna finds its usage in boosting cellular coverage in remote areas or difficult environments indoors and outdoors.

Features:
- 5 dBi Penta-band Cellular Indoor/Outdoor
- Omni-Directional Antenna
- GSM850/ GSM900/ DCS/ PCS/ WCDMA I850/ 900/ 1800/ 1900/ 2100 MHz
- Suitable to use in robust outdoor environment

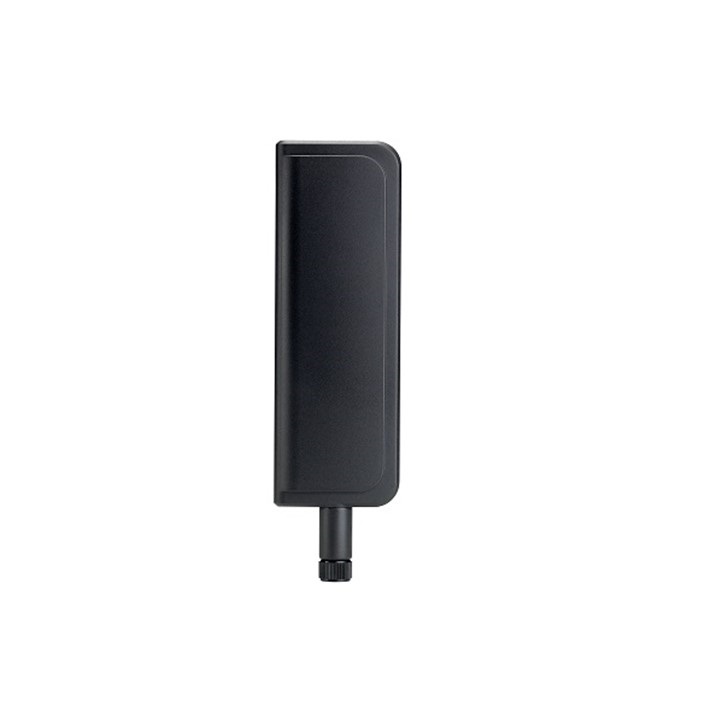

APEX MAGFORCE MB.TG30


The Apex Magforce MB.TG30.A.305111 Magnetic Mounted LTE Antenna with cable and connector is primarily designed for use with 4G LTE modules that require highest possible efficiency and peak gain to deliver best in class throughput on all major LTE bands worldwide for terminal applications. The antenna can be easily mounted on any metal plate.

This Magnetic Mount LTE antenna utilizes the highly successful TG.30 antenna as its main element, providing an ultra wide-band response so it can also be used for other cellular and wireless applications such as fallback to 3G, WI-FI, and assisted GPS. With its unique ultra-wideband dipole design, best in industry performance characteristics is provided, with up to 90% efficiency. It is the recommended solution for products that require highest standard network certifications. The radiation patterns are Omni-directional and stable across all bands.

It has a quality robust IP67 housing (connector and magnetic base is IP65) for use with wireless devices. The antenna comes as standard with 3 meters CFD-200 low loss coaxial cable and a SMA male connector. A super magnet in the base provides a strong magnetic bond (max magnetic Pull Force 2.92kgf) to the metal surface it is mounted on.

Features:
- High Efficiency and Peak Gain Worldwide
- 2G/3G/4G  LTE / GSM / CDMA /DCS /PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE /GPS /Wi-Fi
- 698MHz to 960MHz, 1575.42MHz
- 1710MHz to 2700Mhz
- Straight Fixed Dipole Terminal Antenna
- Strong Magnetic Bond to Metal Surfaces
- 3 Meters CFD-200 Low Loss Coaxial Cable
- SMA(M) Connector
- Cable length and connector customizable

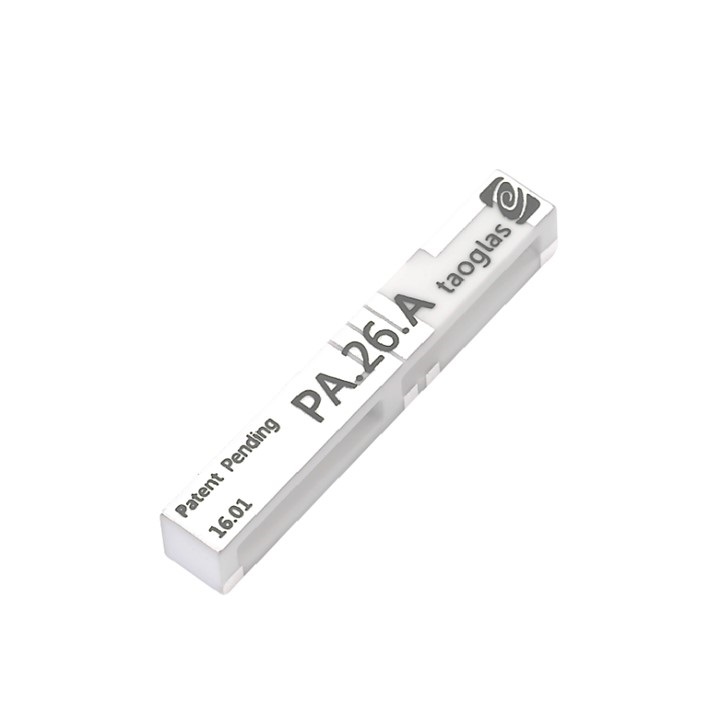

ANAM PA.26A


The PA.26A is an SMT LTE 4G antenna designed for direct SMT mount on the device PCB. It provides highest efficiency in the smallest form SMT form factor, 35*5*6mm. Due to its rectangular shape and compact size the PA.26A is very easy to integrate and can be mounted directly on the edge of the PCB. Matching is accomplished using a pi network. Using SMT (On-Board) antennas saves on labor, cable, and connector costs. SMT antennas also lead to higher integration yield rates, higher transmit power and higher sensitivity.

The PA.26A operates at all common 4G/3G/2G LTE bands; 698MHz to 960MHz, 1710MHz to 2700MHz.

Typical applications:
- Telematics Control Unit (TCU)
- HD Video over LTE
- First Responder and Emergency Services
- Intelligent Transport Systems
- Internet of Things (IoT)
- High Definition Video Broadcast Systems
- Wireless LTE M2M Devices
- Medical Devices

The antenna dimensions and footprint are exactly the same as the PA.25A, providing customers with a drop-in conversion from 2G/3G to 4G systems. Care should be taken to follow layout instructions and place antenna on the edge of board with adequate clearance to metal. Also minimum ground-plane requirements must be met to achieve targeted efficiencies.

Features:
- Anam LTE Ceramic SMT Antenna
- For 4G/3G/2G Applications
- 698MHz to 960MHz, 1710MHz to 2690MHz
- LTE / GSM / CDMA /DCS /PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE /IMT,
- Compact High Efficiency Antenna
- Patent Pending
- Surface Mount Device
- Dims: 35*5*6mm

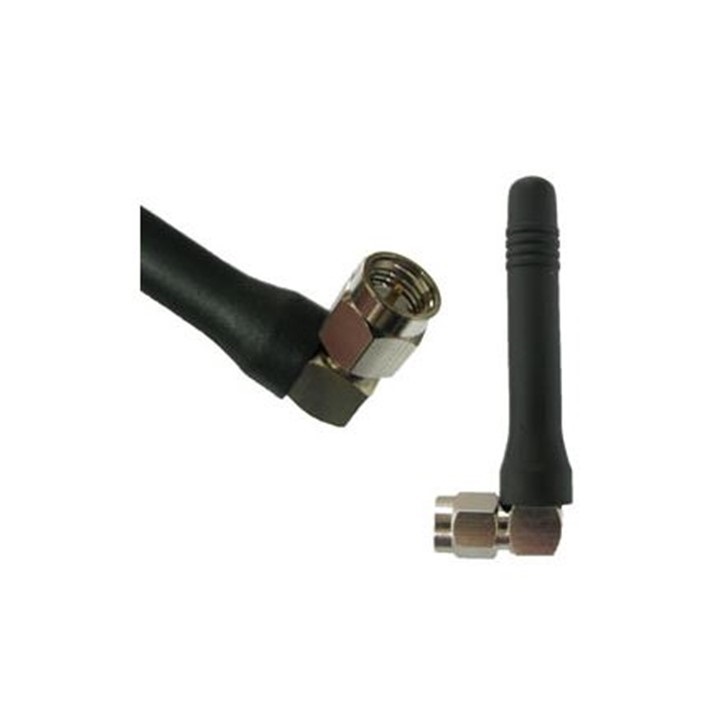

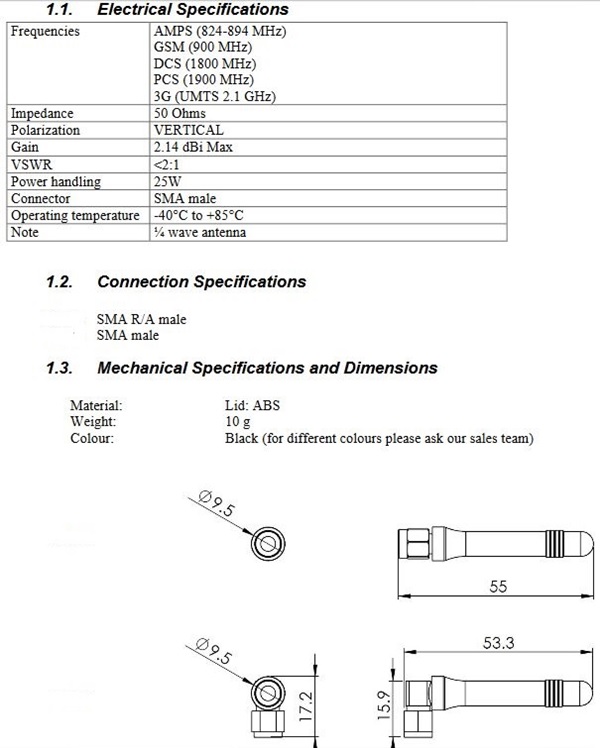

TERMINAL ANTENA 2G/3G

Connection (Mobile)

Frequencies
AMPS (850 MHz)
GSM (900 MHz)
DCS (1800 MHz)
PCS (1900 MHz)
3G (UMTS 2.1 GHz)

Specification:
Impedance: 50 Ohms
Polarization: Vertical
Gain: 2.14 dBi Max
VSWR: <2:1
Power handling: 25W

Default Connections
Cable type: none
Cable length: upon request
Connector type: SMA R/A MALE NICKEL

General specification:
Operating temperature: -40°C to +85°C

Dimensions
Max height: 52mm
Max length: 18.2mm
Max diameter: 9.7mm

Mounting
Connector Mount

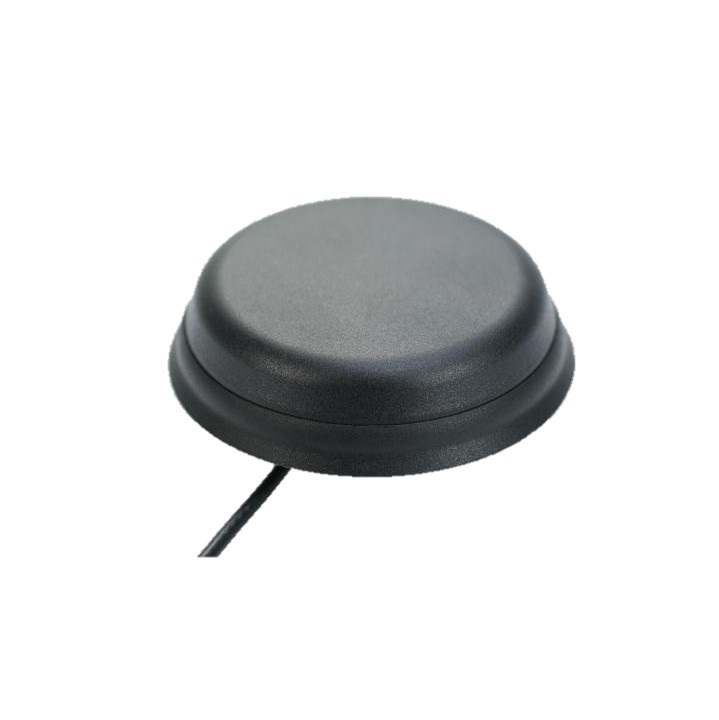

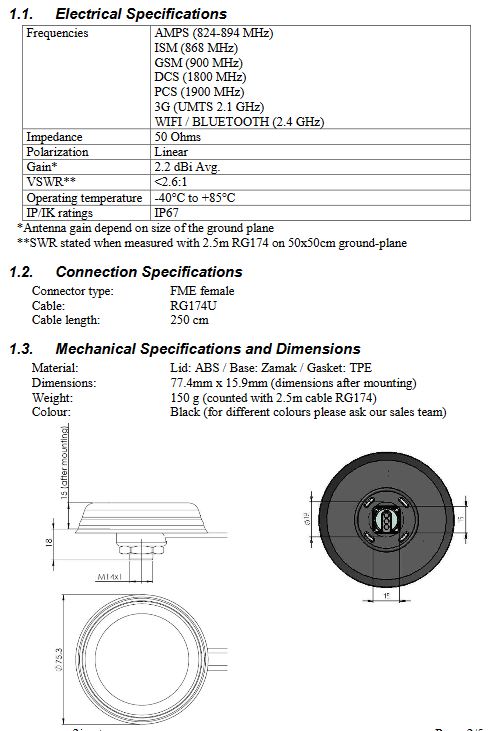

GSM BODY MOUNT

Frequencies:
AMPS (850 MHz)
GSM (900 MHz)
DCS (1800 MHz)
PCS (1900 MHz)
3G (UMTS 2.1 GHz)
WIFI / BLUETOOTH (2.4 GHz)

Specification:
Impedance: 50 Ohms
Polarization: Linear
Gain: 2.2 dBi
VSWR: <2:1
Certificates: IP67, IP69K
Operating temperature: -40°C to +85°C
Dimensions
Max height: 15,9mm
Screw diameter: M14
Nut size: M14
Screw length: 16mm
Max diameter: 77,4mm
Mounting
Body Mount
