ANTI-VANDAL SWITCHES

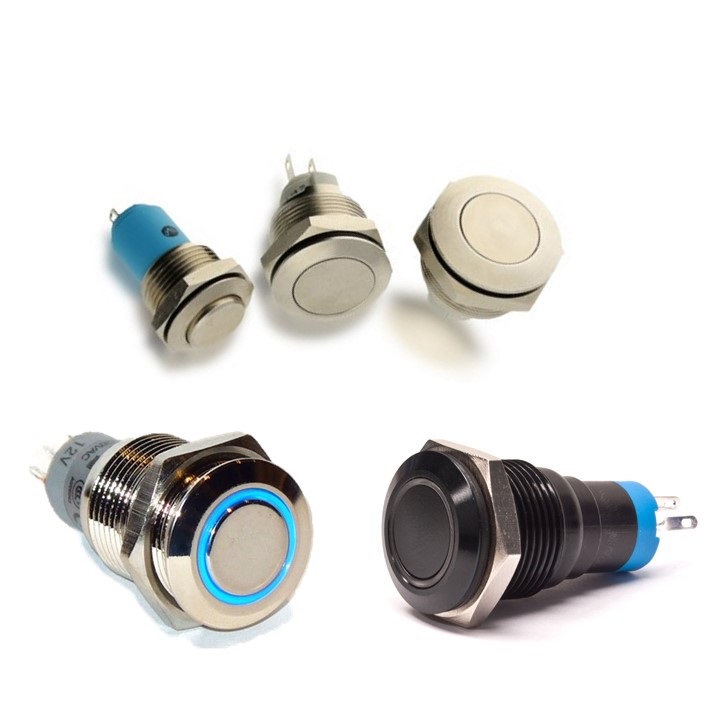

MECHANICAL


16 mm , 19 mm and 22 mm antivandal and security pushbutton switches
These pushbutton switches are part of the AV range of attractive, robust and durable, available with different bushing diameters, actuator shapes, bushing and actuator materials. Anti-vandal or security models. Sealing up to IP67.


Anti-vandal pushbutton switches

• Bushing diameter 19 mm, 22 mm
• Great robustness: impact resistance IK08
• Stainless steel actuator and bushing
• Momentary
• UL approval available
• Optionally sealed to IP65

Security pushbutton switches
• Bushing diameter 16mm, 19 mm , 22mm, 24 mm
• Momentary or latching
• Actuator and bushing : nickel plated, chrome plated, varnished polished or stainless steel
• Flat thermoplastic actuator available in different colours
• Marking and illumination options
• Optionally sealed to IP65 or IP67

PIEZO SWITCHES


Available with diameter 16, 19 or 22mm bushing, CP series sensory switches are extremely easy to use and ideal for repetitive applications (no operating force).

16 mm piezo switches
These switches are part of the PBA series including models with dia. 16, 19 or 22 mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations.

19 mm piezo switches
These switches are part of the PBA series including models with dia. 16, 19 or 22 mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations.

22 mm piezo switches
These switches are part of the PBA series including models with dia. 16, 19 or 22 mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations.

Specification:

- 50 million cycles
- Auto-calibration function
- Easy installation, immediate use
- Under-panel mounting : easily cleaned, robust, sealed
- No panel cut-out needed
- Long life adhesive, resistant to vibrations
- Customisable colours and markings
- Dot illumination option

Piezo switches are based on a solid-state output allowing for a very long life expectancy, ideal for demanding applications where reliability is most important.
The flat actuation surface is completely closed, preventing the intrusion of liquids or other
contaminants, perfect for surface cleaning required in the medical and food-processing industries.
High performance sealing (IP68 and IP69K) is achieved due to the one-piece construction of the switch.
No external power supply is required.
The screw-machined metal housing construction and APEM’s vertical integration allow for the manufacture of a variety of shapes.

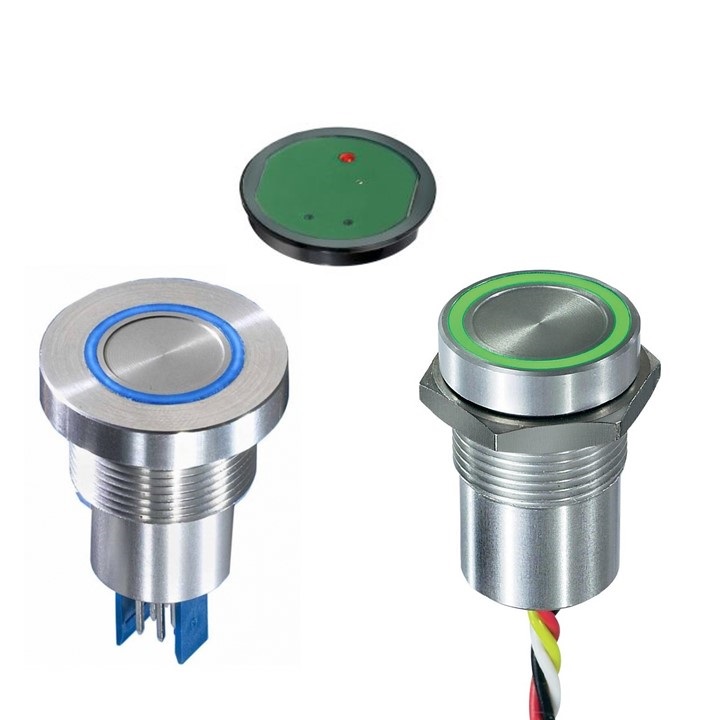

CAPACITIVE SWITCHES


Activated by the touch of a finger, are designed for mounting under a non-conductive front face (glass or polycarbonate) and are activated though the front face, transforming the inert facial into an active interface. Available in momentary or latching, they are perfectly adapted for interactive applications.

Specification:

- 50 million cycles
- Auto-calibration function
- Easy installation, immediate use
- Under-panel mounting : easily cleaned, robust, sealed
- No panel cut-out needed
- Long life adhesive, resistant to vibrations
- Customisable colours and markings
- Dot illumination option
