Electrical monitoring and control

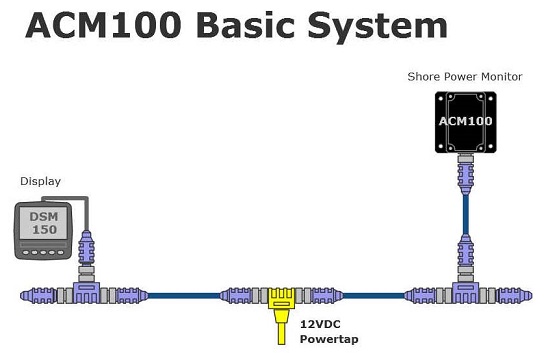

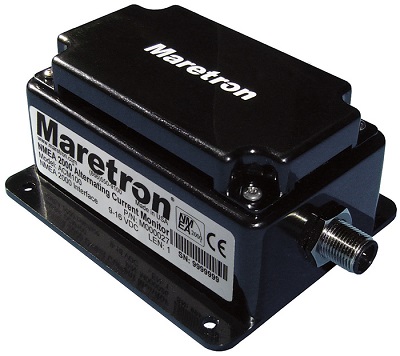

ACM100

Maretron's ACM100 is a device which monitors AC power sources and outputs information about these sources onto the industry standard NMEA 2000® marine data network. The ACM100 can monitor power busses, generators, or utility power. ACM100 output information is then displayed with networked NMEA 2000® equipment such as the Maretron DSM250 or DSM410 dedicated display or with NMEA 2000® compatible software such as Maretron's N2KView®. Best of all, the ACM100 is NMEA 2000® certified so you can view any and all AC information anywhere on the vessel using a compatible NMEA 2000® display.

The ACM100 is a key component of Maretron's N2KView® vessel monitoring and control system.

Features: Voltage, Current, Frequency, Real power, Reactive power, Apparent power, Power factor, Total energy imported, Total energy exported

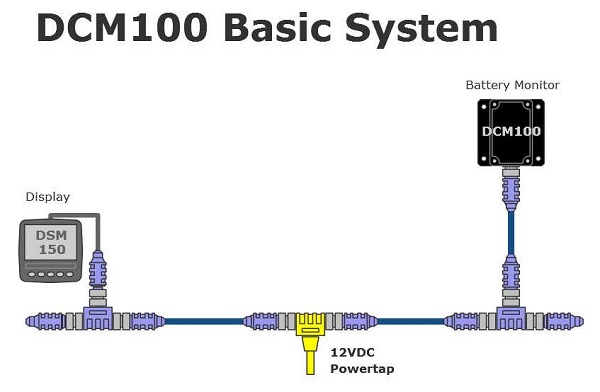

DCM100

Maretron's DCM100 DC Monitor is an advanced electronic monitoring device used to measure the voltage and current of any direct current (DC) power source or load. Examples of DC power sources that can be monitored with the DCM100 include batteries, alternators, solar panels, and wind generators. The DCM100 can also be used to monitor DC loads like inverters, windlasses, DC refrigerators, or any DC branch circuit. When the DCM100 is used to monitor batteries, sophisticated circuitry and software algorithms monitor battery temperature, load current, charging current and terminal voltage to precisely compute battery state of charge, and time remaining. To measure current, the DCM100 uses an included state-of-the-art Hall effect current sensor which simply slips over the wire - you don't have to break connections or install connectors as you do with inline shunts used by other solutions. Best of all, the DCM100 is NMEA 2000® certified so you can view any and all DC information anywhere on the vessel using a compatible NMEA 2000® display.

The DCM100 is a key component of Maretron's N2KView® vessel monitoring and control system.

Features: Battery voltage, Battery current, Ripple voltage, Battery case temperature, State of charge, Time remaining, Charge efficiency factor

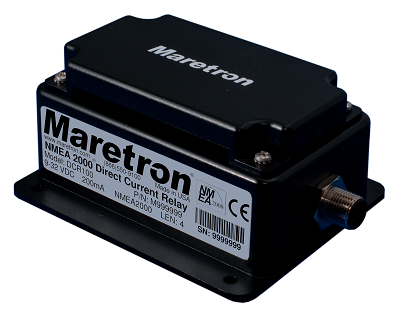

DCR100


Maretron's DCR100 contains 6 Direct Current (DC) relays, each capable of switching up to 10 amps. The DCR100 connects directly to an NMEA 2000® network and the associated loads can be switched while onboard using Maretron’s dedicated NMEA 2000® displays (DSM250 or DSM410) or Maretron’s N2KView® or N2KView Mobile software.

Loads can also be switched remotely using Maretron’s Real Time Cloud Service.

The DCR100 easily handles resistive DC loads like lights, or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays.

An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs, or if the loads are starting to draw too much electrical current.

Features:

  • Six relays for on / off control over NMEA 2000® network
  • Each relay capable of carrying up to 10 amps
  • Individual relay electrical current monitoring
  • Automatic relay over-current shutdown (shuts down at appoximately 12 amps)
  • Automatic relay thermal shutdown (over temperature protection)
  • Channels can be assigned as annunciators for using external lights, horns etc. when an alert is triggered.

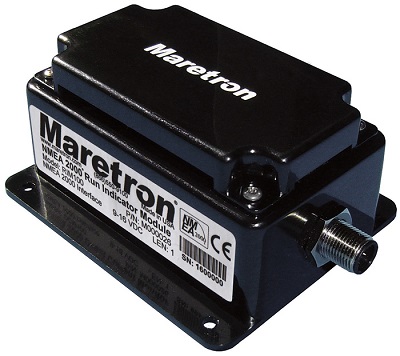

RIM100


Maretron's Run Indicator Module monitors both AC and DC electrical circuits and reports, over an NMEA 2000® network, whether or not the electrical circuit is energized and running. The RIM100 works equally as well for monitoring manually switched loads (e.g., running lights, anchor lights, or deck lights) as it does for automatically switched loads.

Monitoring automatically switched loads (e.g. bilge pumps, engine exhaust/intake fans, and transfer pumps) via the RIM100 is especially useful because you know exactly when equipment is, or isn't running. Best of all, the RIM100 is NMEA 2000® certified so you can view any and all run indicator status anywhere on the vessel using a compatible NMEA 2000® display. The RIM100 is a key component of Maretron's N2KView® vessel monitoring and control system.

Features:

  • Monitors and reports the running status of connected devices
  • Works with both AC and DC loads
  • Works with both automatically and manually switched loads
  • Can indicate the status of a wide variety of loads
    • Bilge Pumps
    • Winches
    • Running Lights
    • Transfer Pumps
    • Exhaust/Intake Fans
  • Monitors fuel and detects presence of water in fuel
