Toggle Switches

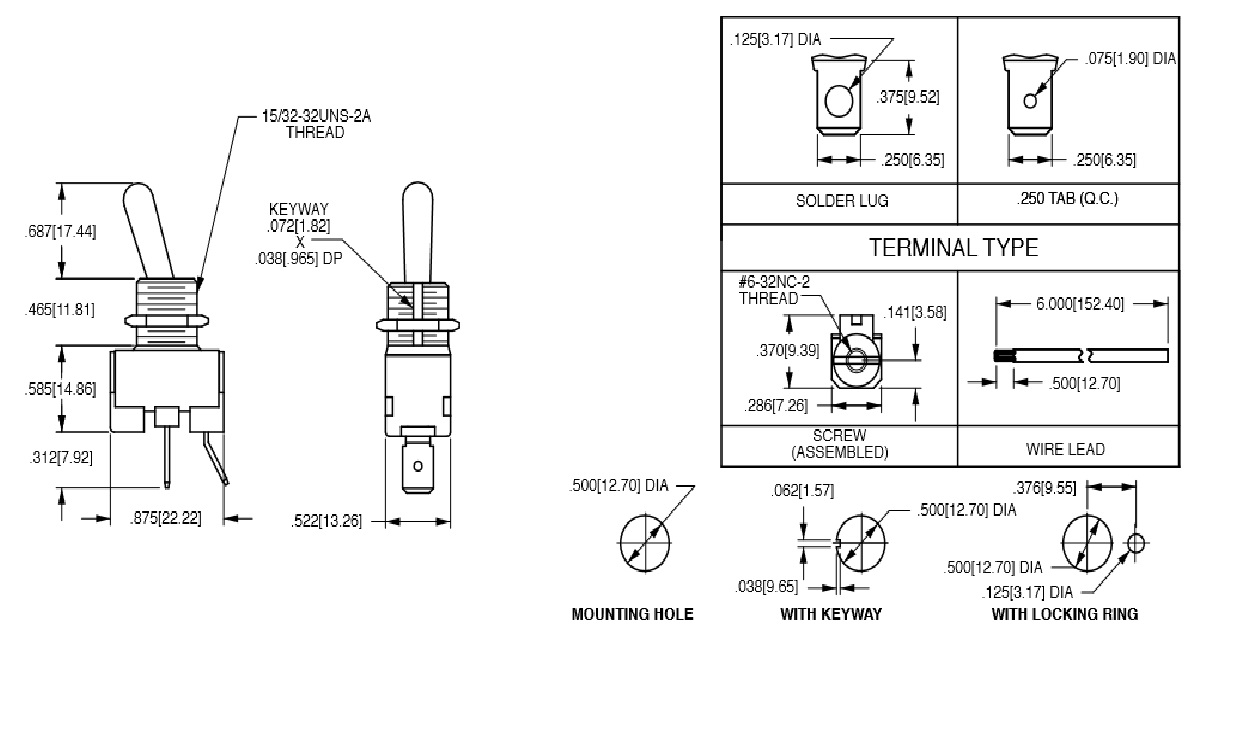

C-SERIES

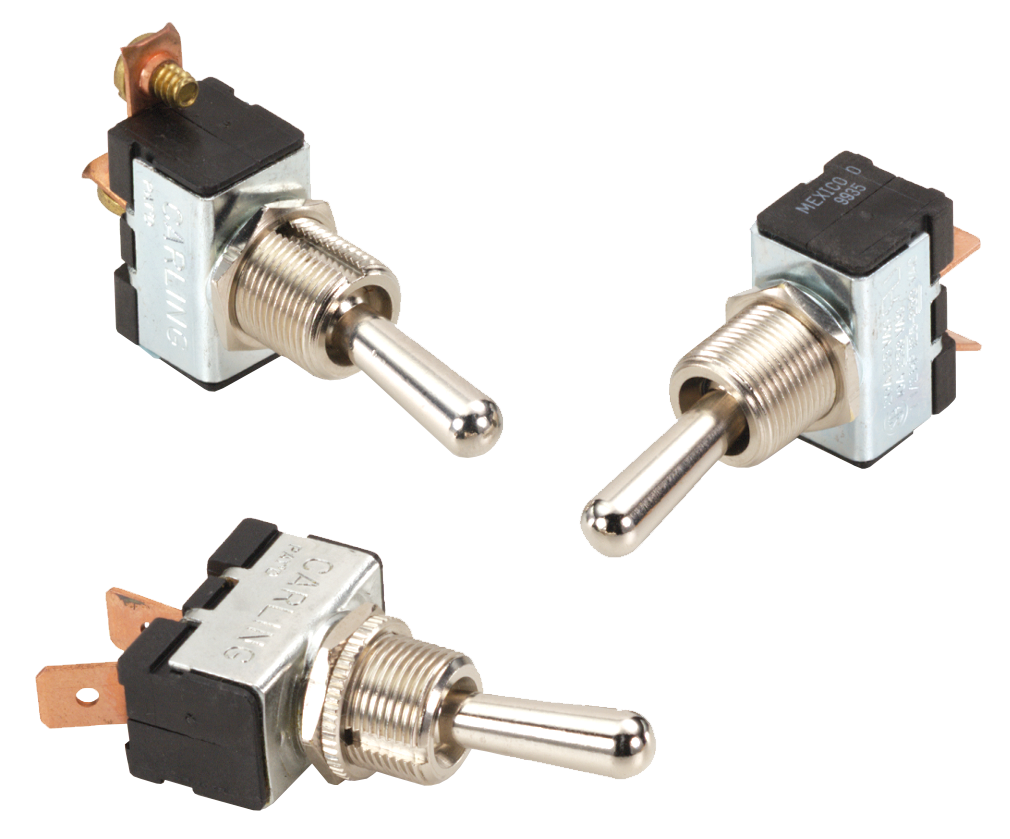

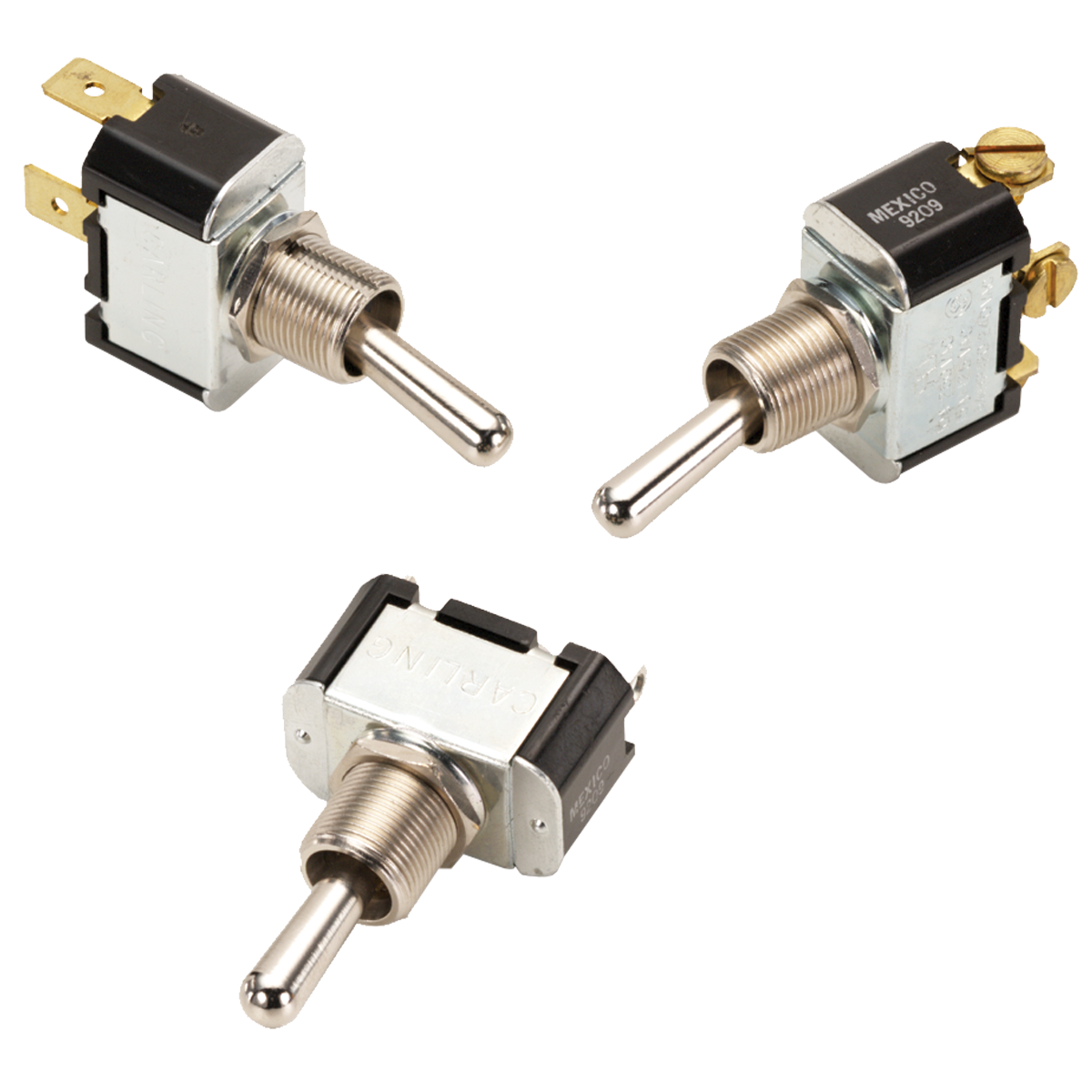

The C-Series single pole toggle switches are AC rated general purpose toggle switches which fit the industry standard .500 diameter mounting hole. These switches are offered in single or double throw maintained. Their rugged metal construction, figure prominently in markets with stringent current carrying requirements.



CIRCUITS RATINGS ACTUATOR STYLES
On-Off 5A 250VAC Bat Toggles (variety of lengths)
On-On 10A 125VAC
  1/2HP 125-250VAC
  10A 250VAC
  20A 125VAC
  1 1/2HP 125-250VAC

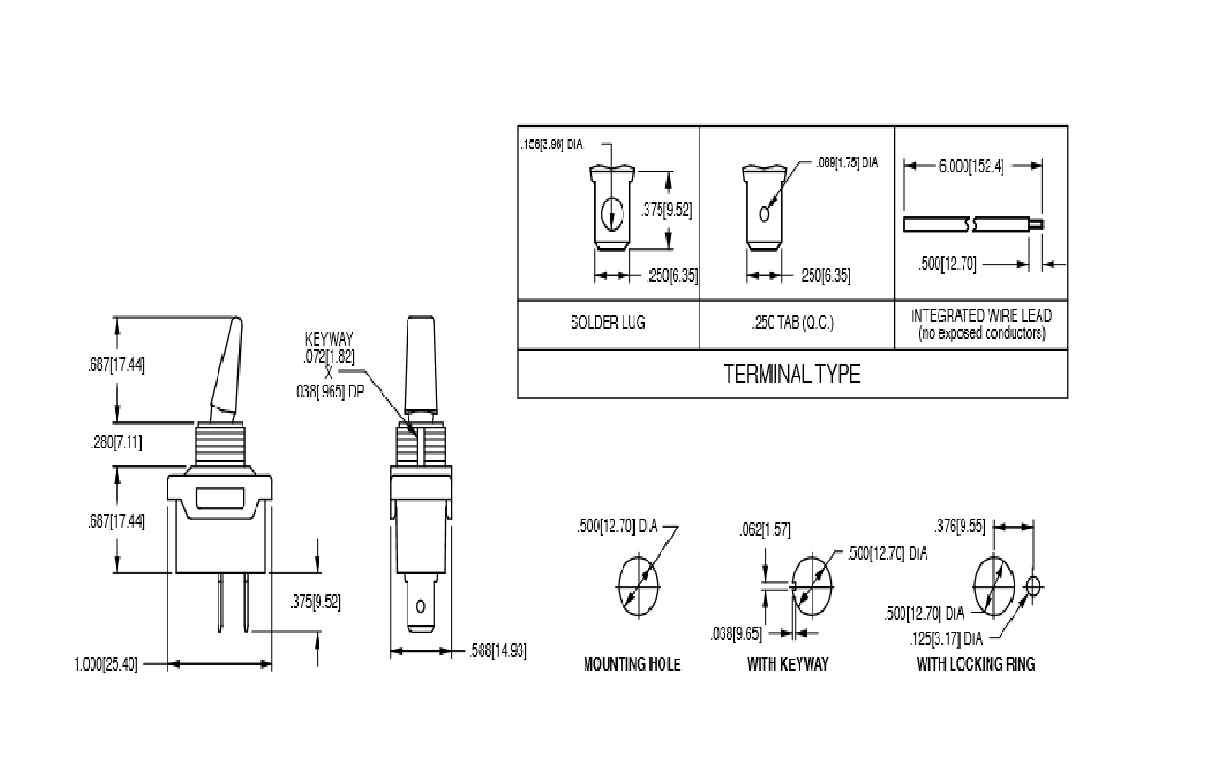

D-SERIES

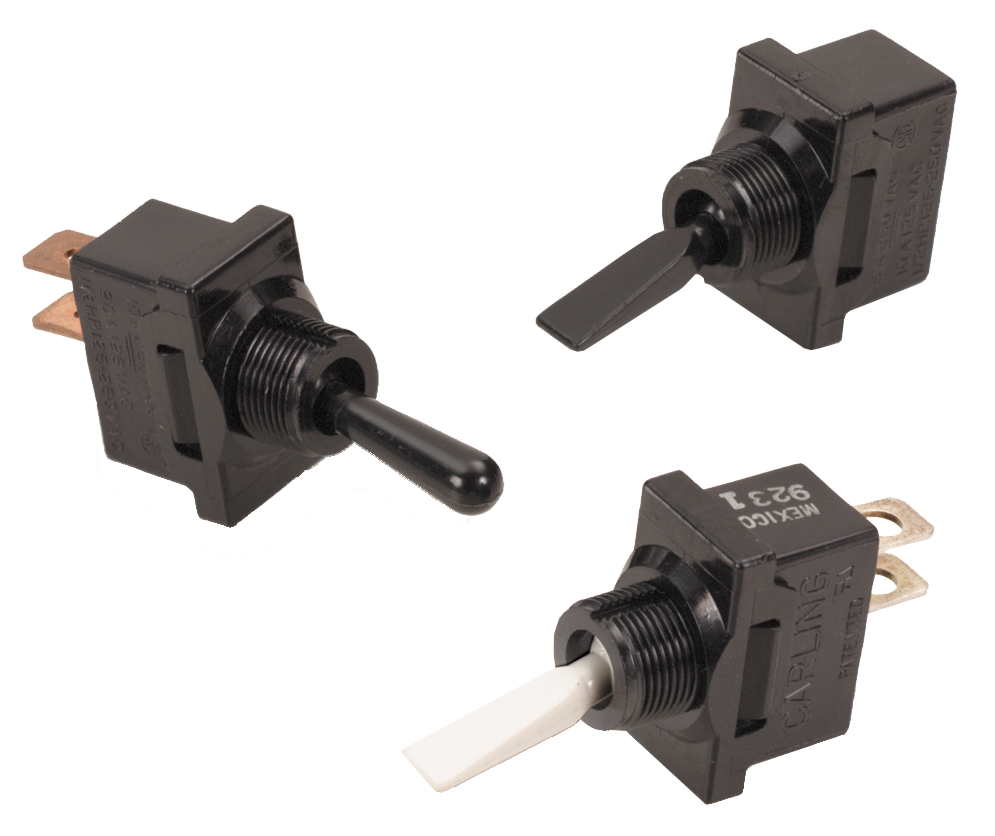

The D-Series toggle switches are AC rated single pole nylon double insulated switches which have self-cleaning wiping contacts. They fit the industry standard .500 diameter mounting hole. These switches with or without a center OFF position are offered in single or double throw maintained circuits. Ideal for applications with stringent current carrying requirements.

CIRCUITS RATINGS ACTUATOR STYLES
On-Off 5A 250VAC Paddle
On-On 1/2HP 125-250VAC  Bat Toggles
 On-Off-On 10A 250VAC
  20A 125VAC
  1 1/2HP 125-250VAC
  3A 250VAC
  6A 125VAC
  1/4HP 125-250VAC

F-SERIES

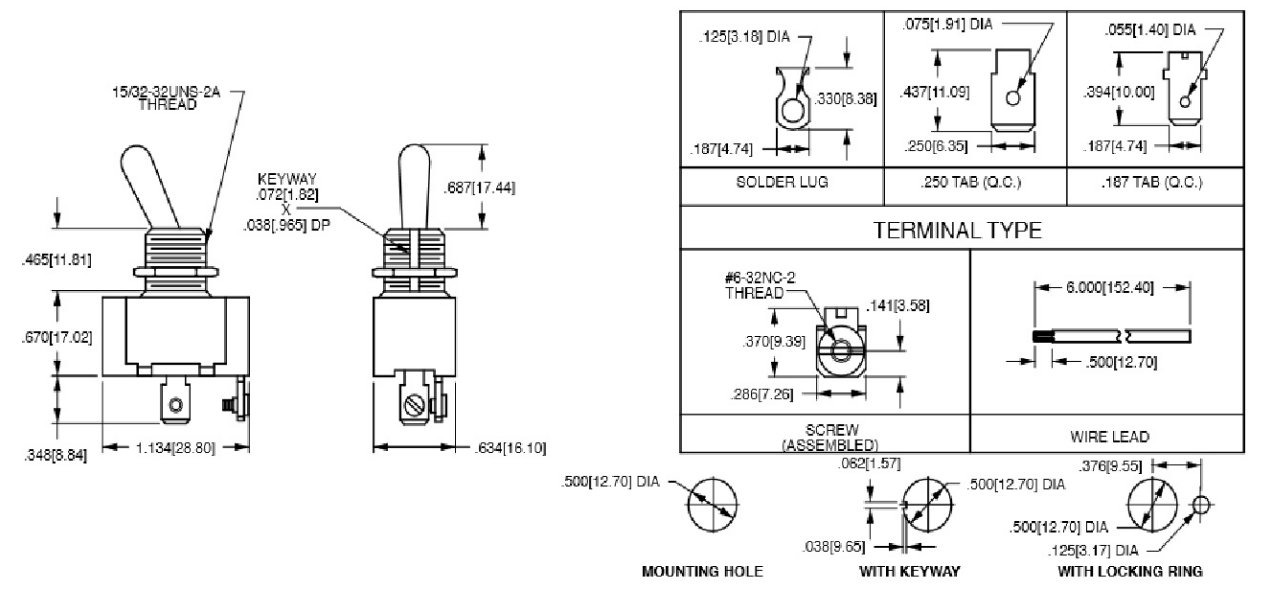

The F-Series single toggle switches feature a slow-make, slow-break contact mechanism. They are AC rated and are also suitable for low voltage DC rated applications. They fit the industry standard .500 diameter mounting hole. These switches are available in a wide range of momentary and maintained single or double throw circuits, terminations, and bushing/toggle configurations.

CIRCUITS RATINGS ACTUATOR STYLES
On-Off 10A 250VAC Bat Toggles (variety of lengths)
(On)-Off 15A 125VAC  Ball Toggle
 On-(Off) 3/4HP
120-240VAC

On-On  3A 250VAC
 On-(On) 6A 125VAC
 On-Off-On 1/4HP
120-240VAC

On-Off-(On)
(On)-Off-(On)

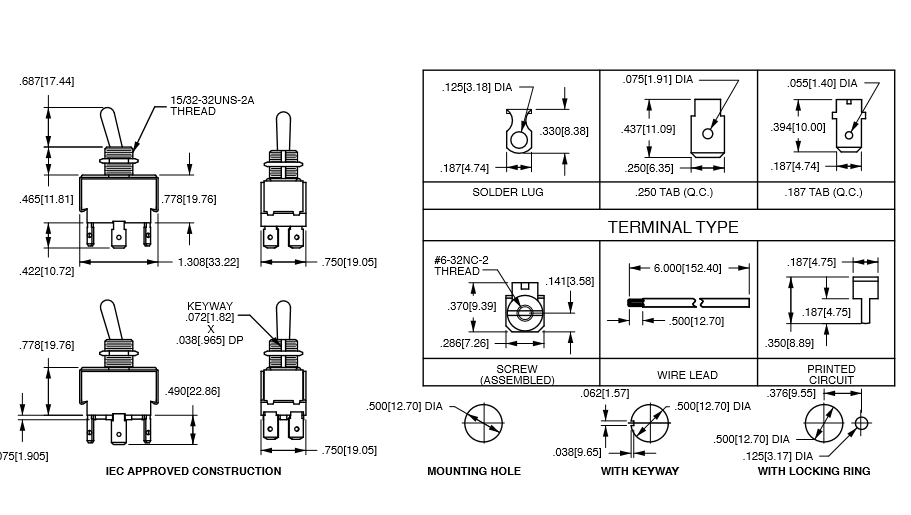

G-SERIES

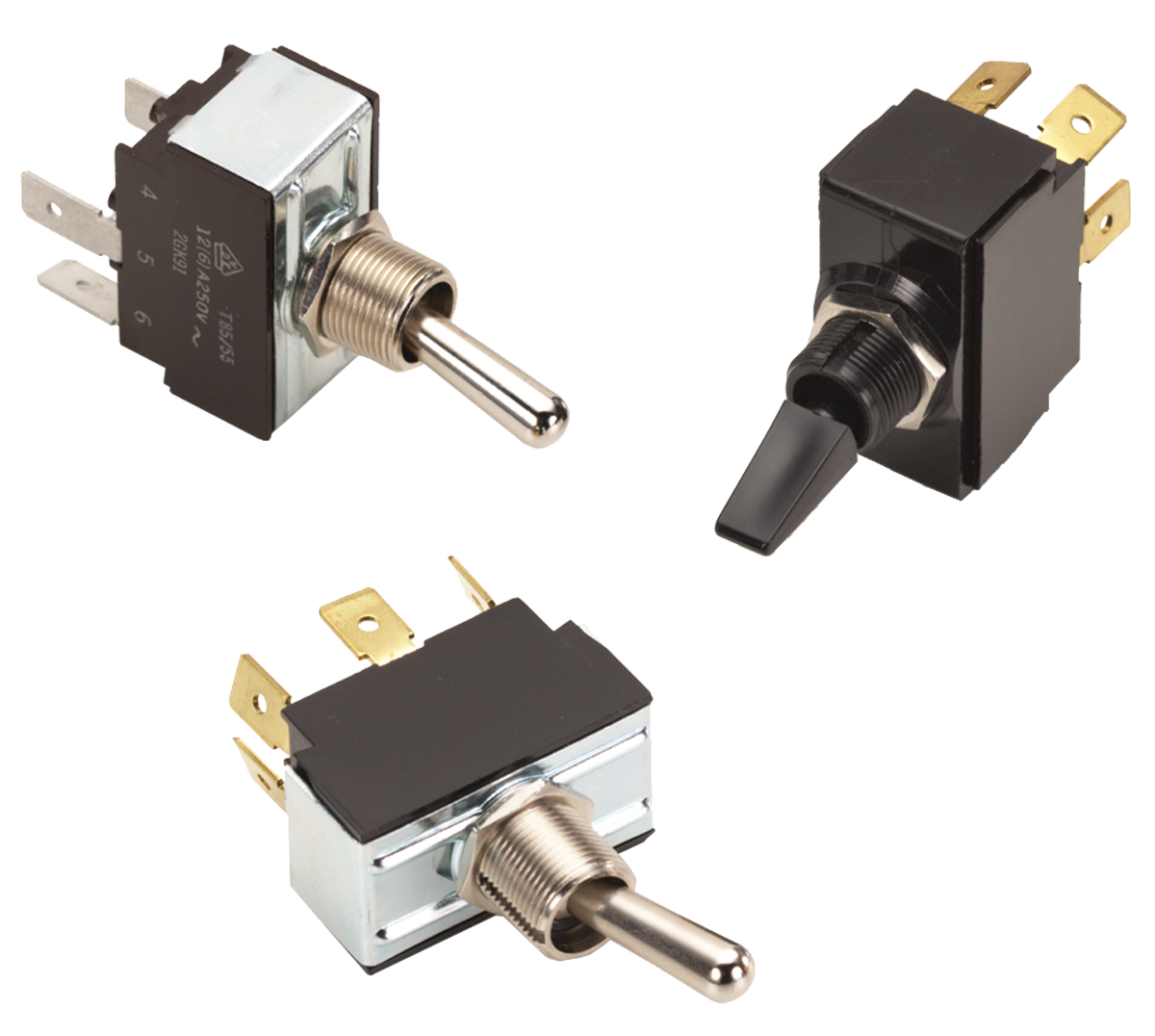

1HP 250VACThe G-Series toggle switches feature a slow-make, slow-break contact mechanism. They are AC rated and are also suitable for low voltage DC rated applications. They fit the industry standard .500 diameter mounting hole. These switches are available in a wide range of momentary and maintained single throw or double throw circuits, terminations, and bushing/toggle configurations.

CIRCUITS RATINGS ACTUATOR STYLES
ON-OFF 10A 250VAC Metal Bat Toggles (variety of lengths)
ON-(OFF) 15A 125VAC  Plastic Chisel Toggles (variety of styles)
 (ON)-OFF 3/4HP 125-250VAC
 ON-ON 3A 250VAC
 ON-(ON) 6A 125VAC
ON-OFF-ON  1/4HP 125-250VAC
ON-OF-(ON) 12A 250VAC
(ON)-OFF-(ON) 17A 125VAC
  1HP 250VAC
  20A 250VAC
  20A 125-277VAC
  10A 250VAC
  15A 125VAC

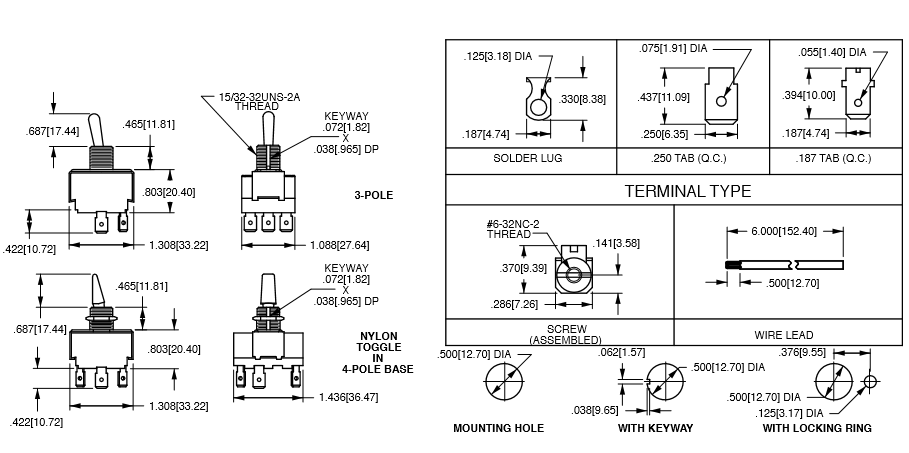

H-I-SERIES

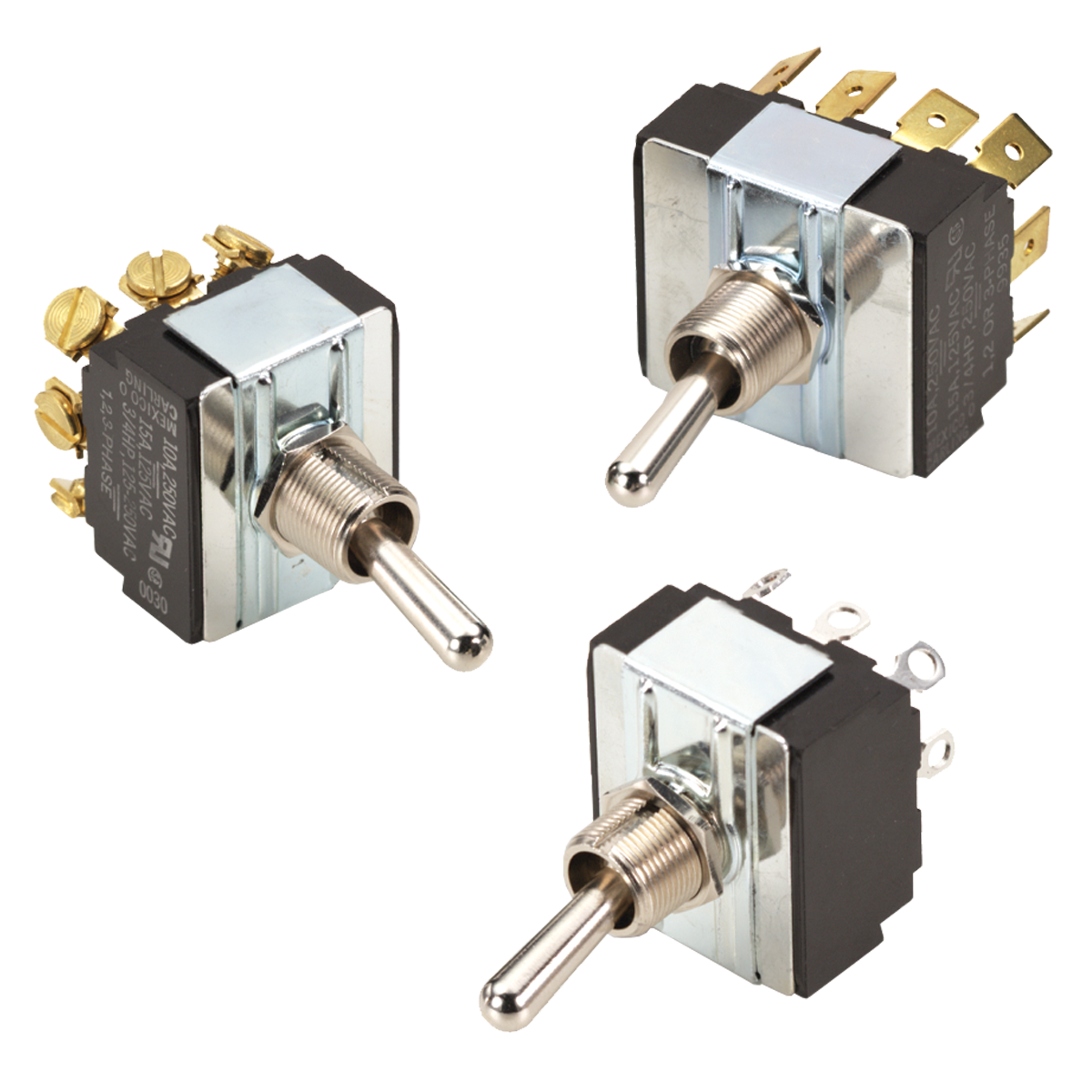

The H-Series & I-Series three pole toggle switches are heavy duty, high voltage AC rated switches. They feature a slow-make, slow-break contact mechanism, and fit the industry standard .500 diameter mounting hole. These switches are available in a wide range of momentary and maintained single throw or double throw circuits, terminations, and bushing/toggle configurations.

CIRCUITS RATINGS ACTUATOR STYLES
ON-OFF 10A 250VAC Metal Bat Toggles (variety of lengths)
ON-(OFF) 15A 125VAC  Plastic Paddle Toggle
 (ON)-OFF 3/4HP 125-250VAC
 ON-ON 3A 250VAC *
 ON-(ON) 6A 125VAC *
ON-OFF-ON  1/4HP 125-250VAC *
ON-OF-(ON) 12A 250VAC *
(ON)-OFF-(ON) 17A 125VAC *
  1HP 250VAC *
  5A 250VAC *
  8A 125VAC *
  1/2HP 125-250VAC *
  6A 600VAC *

* only for H- SERIES

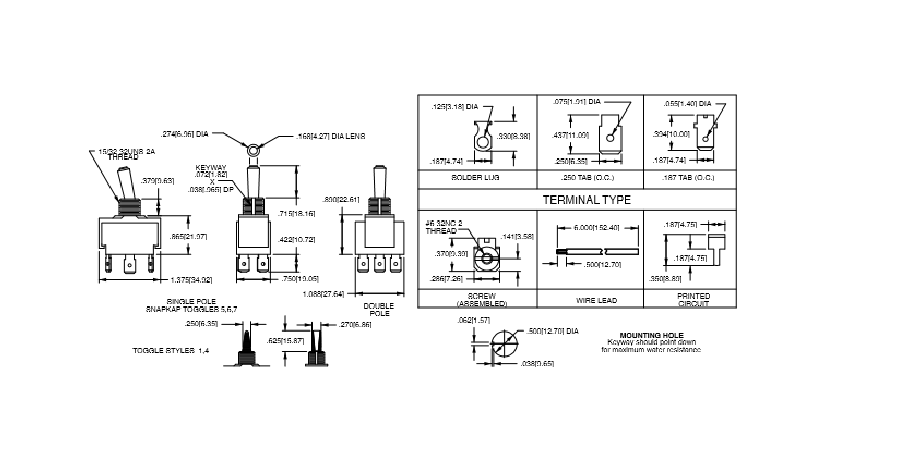

LT-SERIES

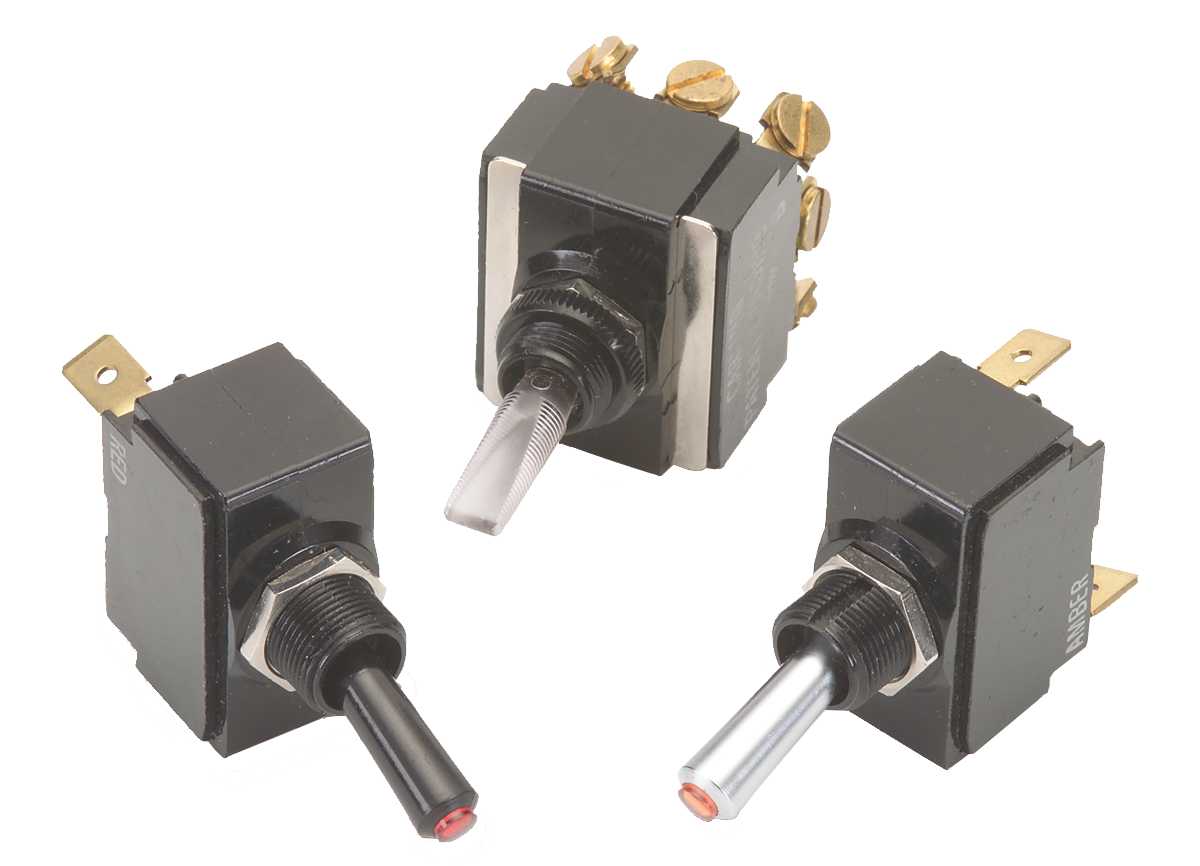

The LT-Series toggle switches are AC rated illuminated toggle switches featuring a three-color lighting sequence from a single lamp. These lighted toggle switches contain neoprene bushing seals for dust and moisture protection. A variety of maintained and momentary single or double throw circuits, terminations, lamp voltages, and color sequences are available. LT-Series switches fit the industry standard .500 diameter mounting hole.



CIRCUITS RATINGS ACTUATOR STYLES
ON-OFF 10A 250VAC Bat Toggle
ON-(OFF) 15A 125VAC Translucent Paddle
 (ON)-OFF 3/4HP 125-250VAC  Clear Paddle
 ON-ON
 ON-(ON)
ON-OFF-ON
ON-OF-(ON)
(ON)-OFF-(ON)

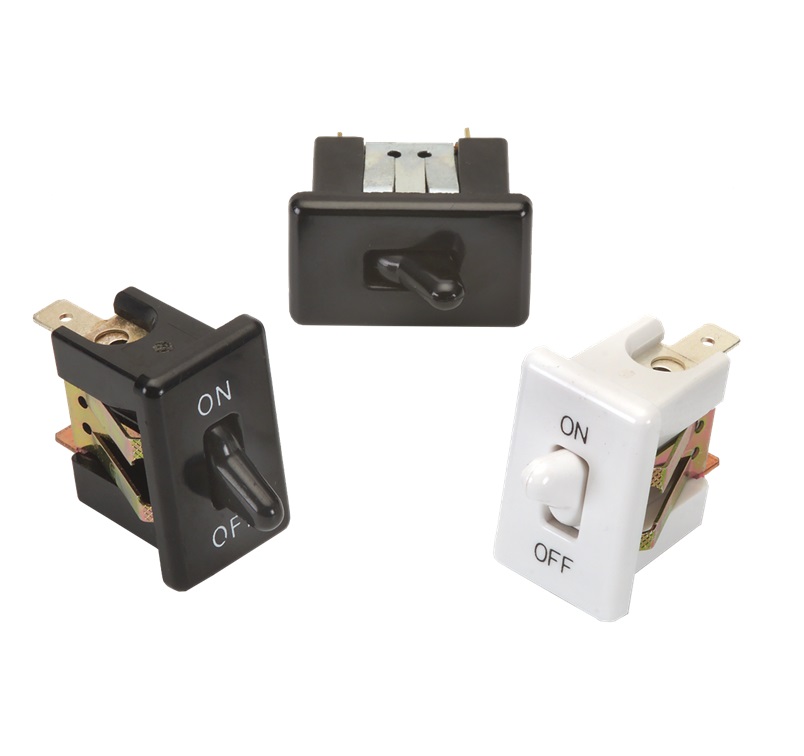

MAAOA 215-SERIES

The MAAOA/215-Series single pole toggle switches are AC rated snap-in switches suitable for high ambient temperature applications. They are offered in single throw maintained or momentary circuits, and come in brown, black, or white.

CIRCUITS RATINGS ACTUATOR STYLES
1 pole 10A 250VAC Toggle
  20A 125VAC
  1 1/2HP 125-250VAC

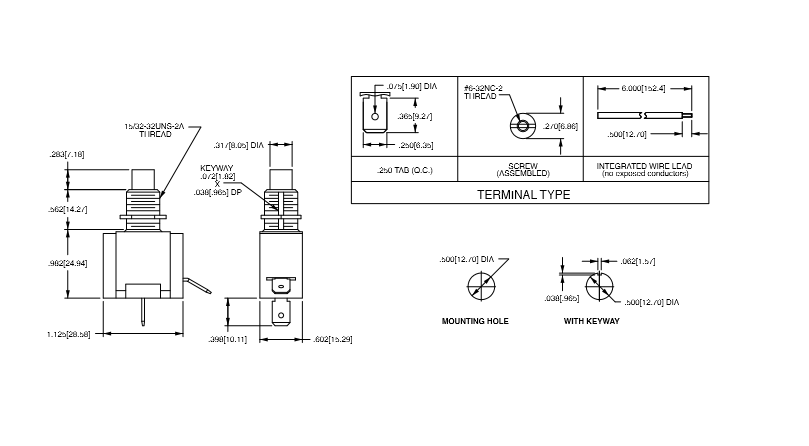

P-SERIES

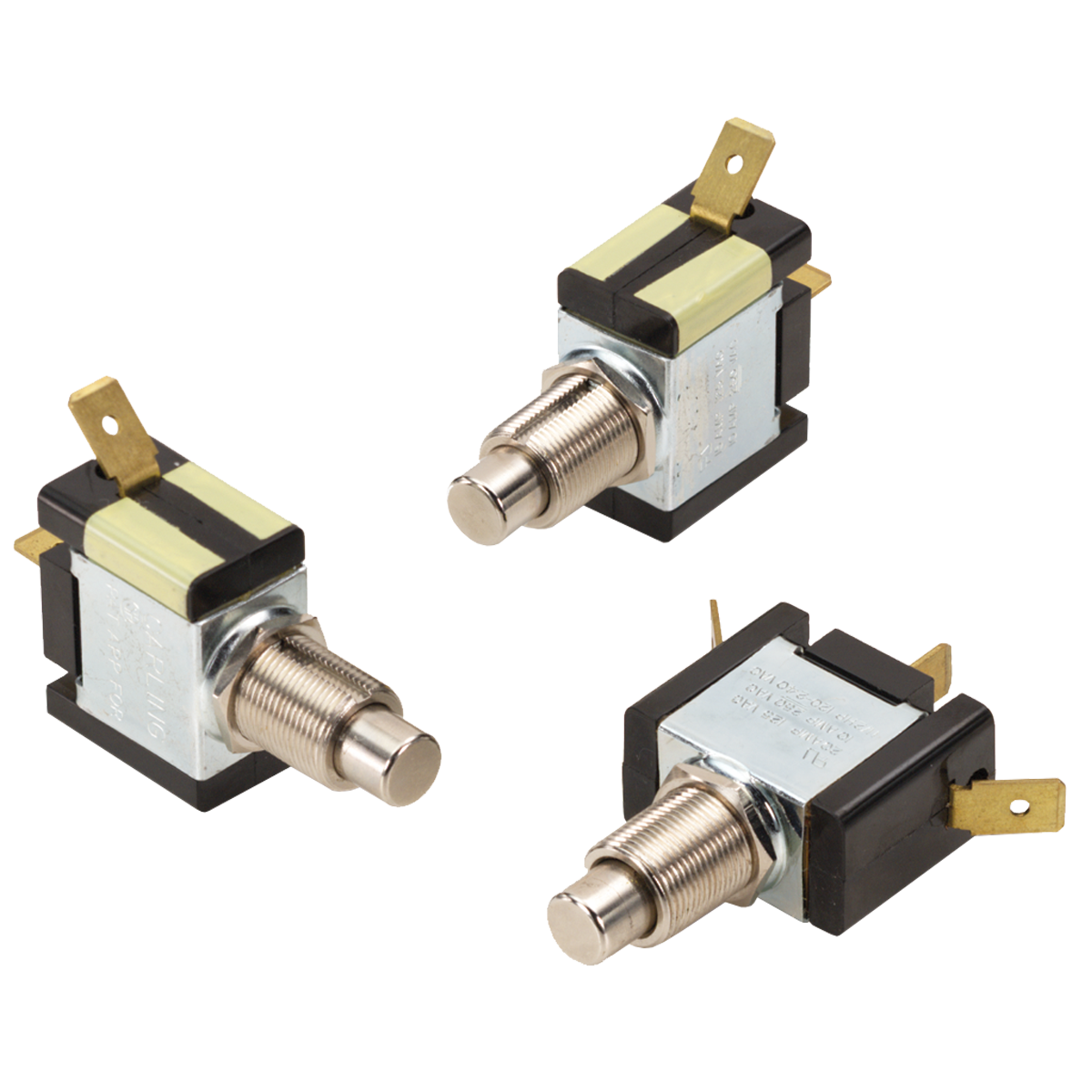

These rugged P-SERIES pushbutton-type switches feature international approvals, single and double throw construction and ratings to 20A 125VAC. It requires heavy actuation force (3-5 lbs. typical), which makes this switch ideal for use as a “foot-pedal” switch. The metal bushing and plunger construction enables this alternate action switch to withstand the rigors of most any stringent pushbutton application.

CIRCUITS RATINGS ACTUATOR STYLES
On-Off 10A 250VAC Pushbutton
On-On 20A 125VAC
  1/2HP 120-240VAC
  10A 250VAC
  15A 125VAC
  3/4HP 125-240VAC
  10A 250VAC
  15A 125VAC
  10A(6) 250Vu T85

ST-SERIES

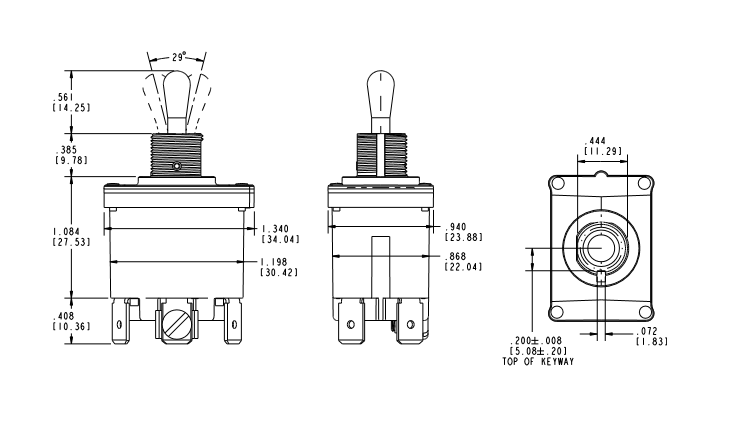

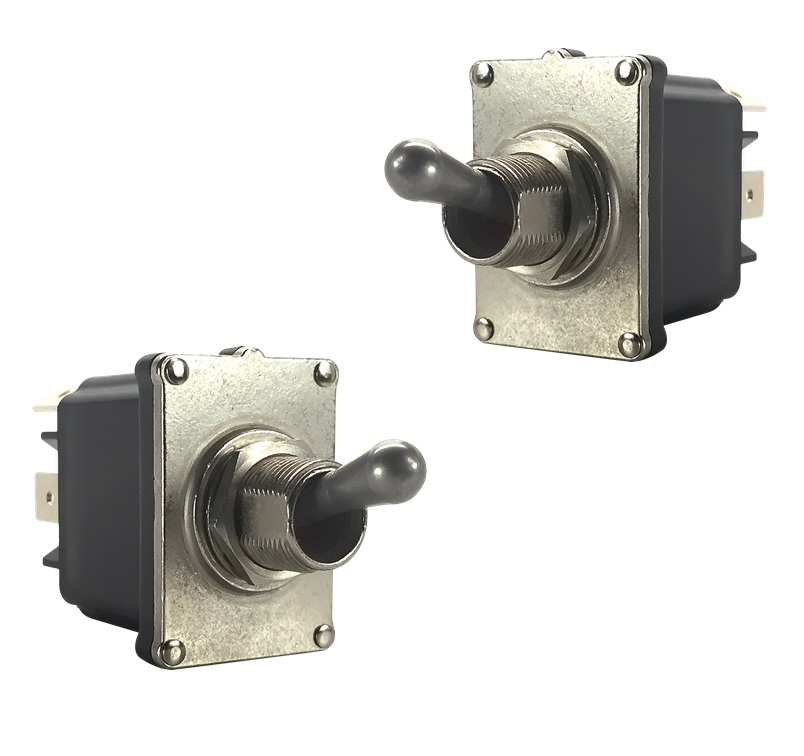

The ST-Series are one a two pole sealed toggle seal composed of dynamic silicone material that bonds to the metal toggle, pin and bushing, providing ideal sealing and protection against the environment, vibration and shock, while withstanding extreme temperature variations. It also utilizes up to three terminal seals per pole and an optional o-ring assures additional under panel sealing protection.

All silicone seals on the ST-Series comply with A-A-59588 for silicone rubber performance specifications and, together, these features meet the international IEC 60529 standard for sealing performance to an IP68 level, and comply with MIL-DTL-3950G requirements.

1- 2 pole; 16A, 12/24V; IP68 Certified

CIRCUITS RATINGS ACTUATOR STYLES
ON-OFF 16A, 12/24V Bat Toggle
ON-(OFF)
(ON)-OFF
 ON-ON
 ON-(ON)
 ON-OFF-ON
 ON-OF-(ON)
 (ON)-OFF-(ON)

110/216-SERIES

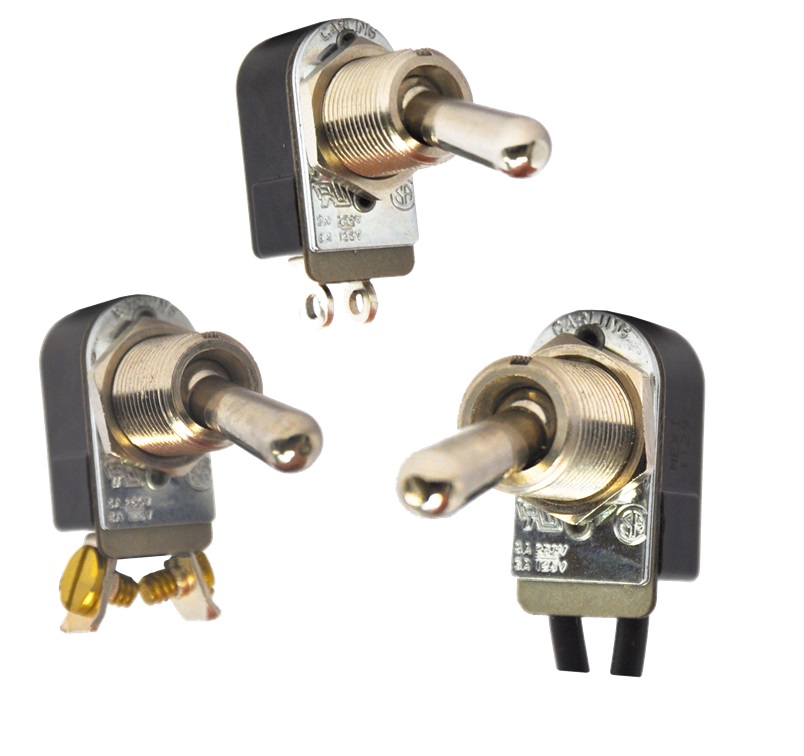

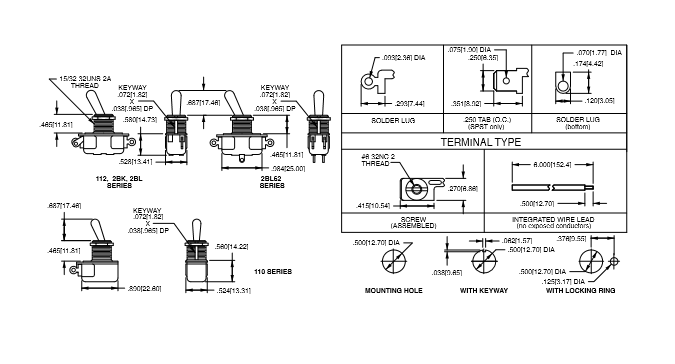

The 110/216-Series toggle switches feature a quick-make, quick-break contact mechanism. They are suitable for AC/DC shallow back panel applications, and fit the industry standard .500 diameter mounting hole.

These switches are available in a range of momentary and maintained single or double throw circuits, terminations, and bushing/toggle configurations. Side Terminals and integrated wire leads. 277VAC rating for industrial lighting circuits available.

CIRCUITS RATINGS ACTUATOR STYLES
ON-OFF 3A 250 Bat Toggles(variety of lengths)
ON-(OFF) 6A 125V Ball Toggle
(ON)-OFF 5A 250V
 ON-ON 10A 125V
 2 Circuit:
1 ON- 1 OFF
1/4HP 125V
1(ON)- 1(OFF)  1A 250V
  3A 125V
  6A 125VAC
