ROTARY SWITCHES

V-SERIES CONTURA ROTARY SWITCH

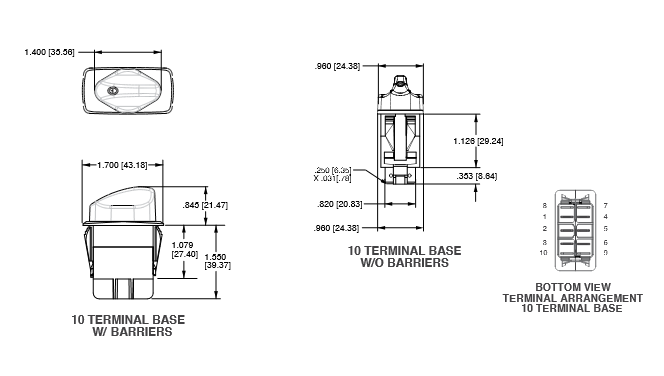

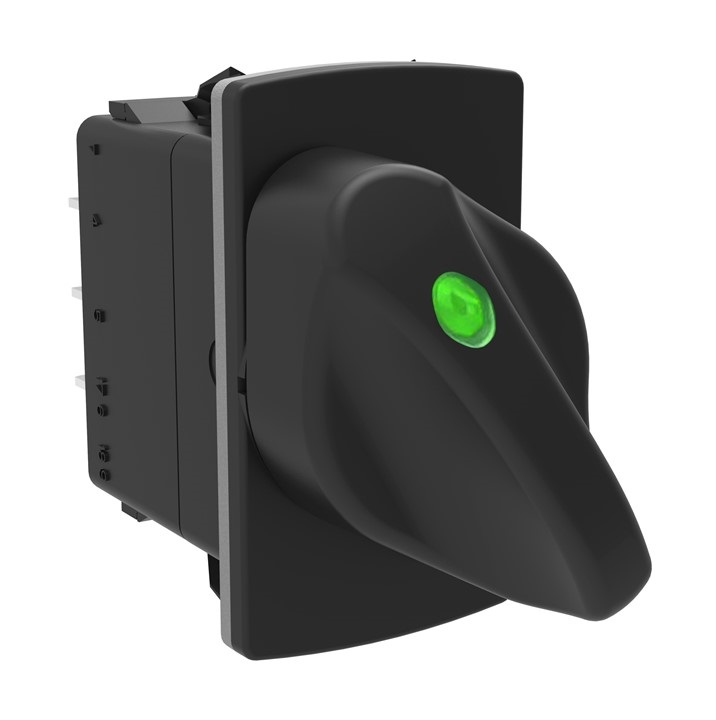

The V-Series Contura Rotary Switch was designed for maximum performance and reliability leveraging features of the widely popular V-Series Contura Rocker Switches.

Available in maintained and momentary circuit options, the V-Series Rotary features a sturdy knob construction, up the three separate LEDs, and fits in an industry standard panel opening.

Internally, the V-Series Contura Rotary Swtich uses a patented mechanism that translates rotary to linear motion. This allows for common switch functionality and terminal connections with the V-Series rocker version and requires no harness change. A secondary CAM, which helps drive the mechanism, provides definitive detent positions and prevents the switch from stopping between positions, while improving tactile feel.

The V-Series Rotary also features an innovative PC board that supports the LED and surface mount resistors, and IP67 sealing protection above panel by utilizing LED and actuator stem seals. Together, these features make the V-Series Contura Rotary switch the best choice available in the market today.

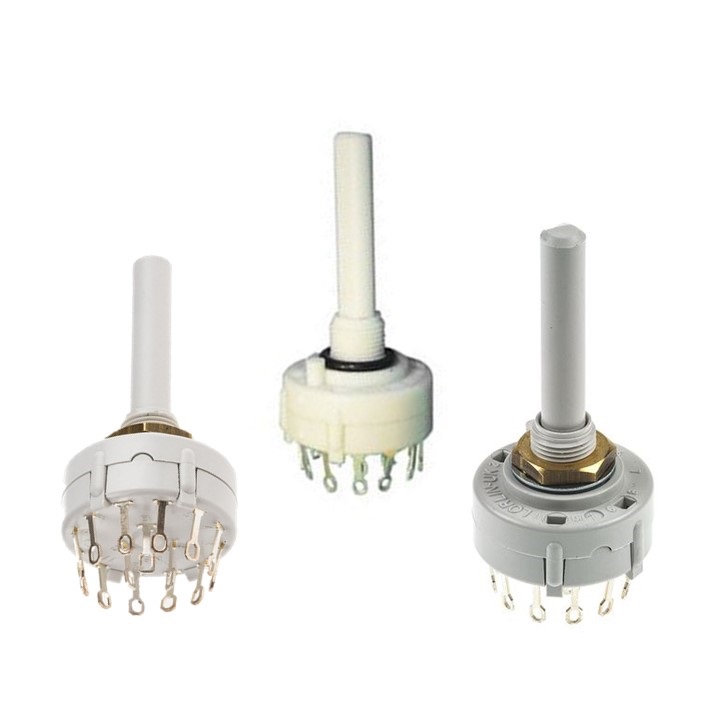

CKS/CKF ROTARY SWITCHES

This high quality single deck multi-pole switch is sealed to IP65. Made in UL-V0 material. The switch exhibits the same form, fit and electrical ratings as existing CK types.
Front panel and spindle sealed IP67, high quality single deck multi-pole switches

Specification:

  • Made in UK
  • Cost effective single wafer switch

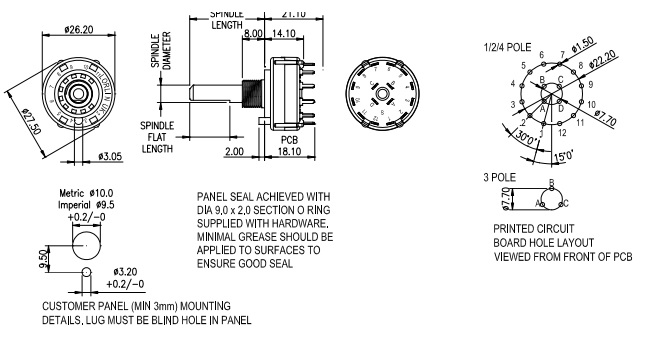

  • Moulded 27.5mm diameter
  • Standard 30º indexing
  • Solder or Printed Circuit Board Terminals
  • Up to 4 poles per switch o Maximum 12 positions
  • Moulded in UL94 V0 material.
  • Optional reinforcement ring.
  • Shorting (make before break 30º indexing only) or non shorting (break before make)    contacts.
  • Special options: 60ºor 90º indexing, continuous rotation. Fixed stop, gold flash or gold plated contacts, and spindles with special flats.
  • CKS same form, fit & function to the CK range
  • Dampened indexing & reduced shaft play gives smooth feel.
  • Front panel sealed to IP66 – protected against powerful water jets
  • Front panel sealed to IP67 – protected against the effects of temporary immersion in 1 meter of water. (ancillaries required)
Switch Rating: 150mA@250V ac/dc resistive load 1A @ 24V dc
Life: >10,000 Cycles
Operating Temperature: -30ºC to +85 ºC
Proof Voltage: 1,500Vac (Initial)
Insulation Resistance: >999 MΩ at 500Vdc (Initial)
Contact Resistance:
Operating Torque (nominal) Standard 10.5 ± 1 N cm Light Action 5.5 ± 0.5 N cm
End Stop Torque (nominal) 0.80 Nm
Moulding Material: Polyamide 6.6 G.F. V0 RATED
Contact/Terminal Material: Brass CZ108 Ag Plated



Variety of Special Circuits available
Custom colors and legends available
Special circuits

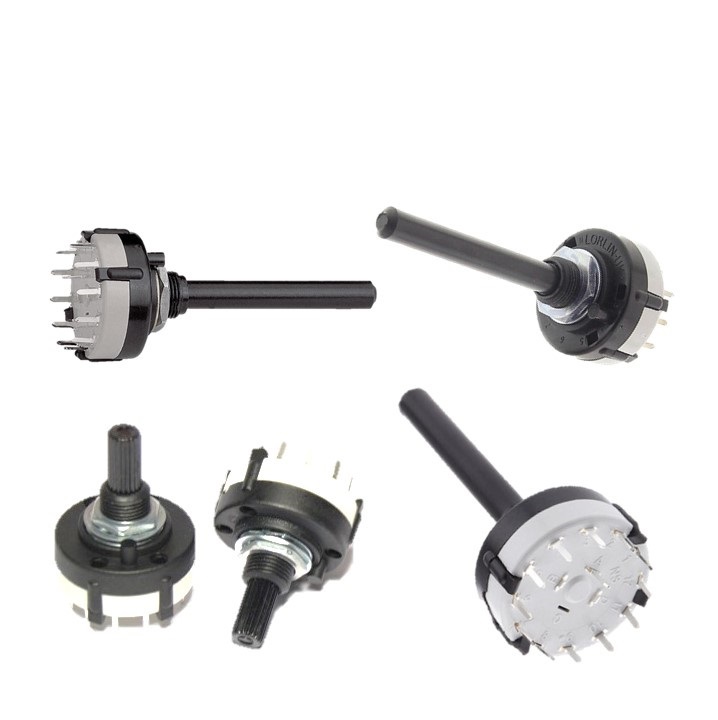

CK ROTARY SWITCHES

A high quality multi-pole switch suitable for low power applications. Although capable of handling mains voltage, the CK switch is not designed as a mains isolating switch. For signal switching below 0.4VA gold plating is recommended

Specification:

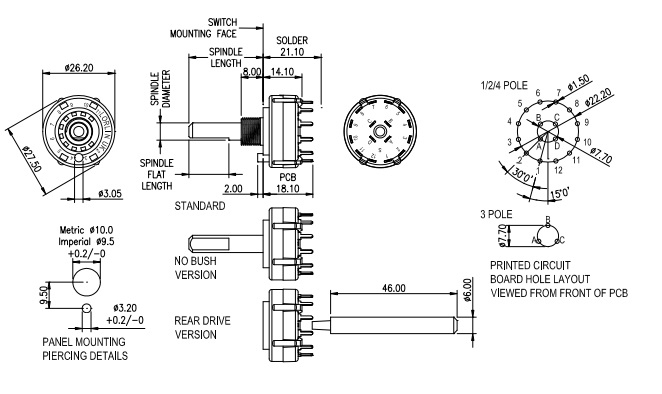

  • Made in UK
  • Cost effective single wafer switch
  • Moulded 27.5mm diameter
  • Standard 30º indexing
  • Solder or Printed Circuit Board Terminals
  • Up to 4 poles per switch o Maximum 12 positions
  • Shorting (make before break 30º indexing only) or non shorting (break before make) contacts.
  • Adjustable stop to restrict number of positions
  • Special options: 60ºor 90º indexing, continuous rotation,
  • Optional reinforcement ring.
  • Fixed stop, UL-V0 rated material, gold flashed or gold plated contacts, and spindles with special flats, slots or knurls.
  • No Bush versions available
  • Rear Drive versions available
  • Sealed PCB Termination available
Switch Rating: 150mA@250V ac/dc resistive load
Currrent Carrying Capacity: 5A non switching
Life: >10,000 Cycles
Operating Temperature: -30ºC to +85 ºC
Proof Voltage: 1,500Vac (Initial)
Insulation Resistance: >999 MΩ at 500Vdc (Initial)
Contact Resistance:
Operating Torque (nominal) Standard 8.6 ± 1 N cm Light Action 3.5 ± 0.5 N cm
End Stop Torque (nominal) 0.80 Nm
Moulding Material: Polyamide 6.6 G.F
Contact/Terminal Material: Brass CZ108 Ag Plated

KEY LOCK SWITCHES

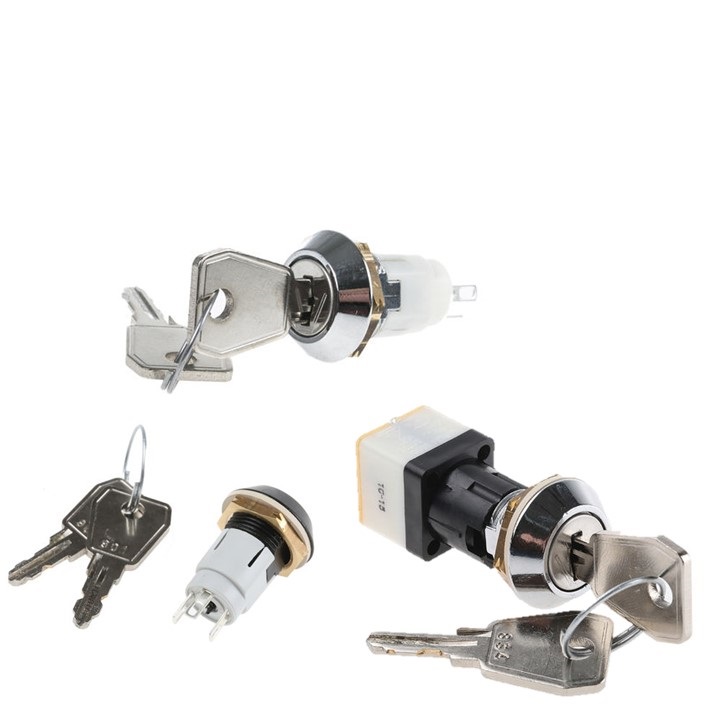

12mm Key lock Switches
Sub miniature front mount radial and standard key, single and double pole lock switches. Ideal for restricted space designs.

Series: LS, SKL
19mm Key lock Switches
Extremely versatile multi pole multi output 19mm lock switch range, includes front mount, rear mount, high security, spring return, with electrical properties suiting applications up to 4A mains voltage.

Series: CKL, MSL, DSL, RAL
16mm Key lock Switches
A complete family of panel mounted key lock switches. Same key and 200 differ key options with modules to suit the majority of electrical constraints up to 4A mains voltage. Sealed IP67 option. Spring return and static indexing

Series: SRL, SRLM, SRLCK, SRLCKB, WRL, WRLCK, WRLCKB, IRL, WIRL60 LOCK SWITCH, HRL, S16
Specification:

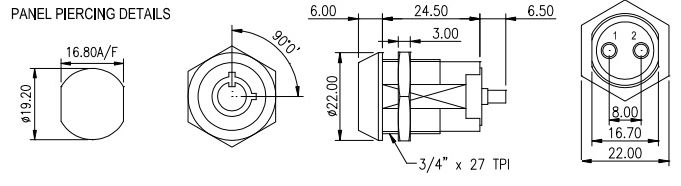

  • Tapered lock head
  • Single pole, single throw lock switch, 90º indexing.
  • Chrome plated zinc alloy die cast housing
  • Key insertion/removal in both positions o Radial cylinder with 7 pin tumblers.
  • 50,000 key differs range
Switch Rating : 2A @ 250Vac
Not mains isolating : 4A @ 125Vac
Life:  >10,000 Cycles
Proof Voltage: 1,500Vac (Initial)
Insulation Resistance: >999MΩ at 500Vdc(Initial)
Contact Resistance:
