GNSS/GPS & Timing Modules

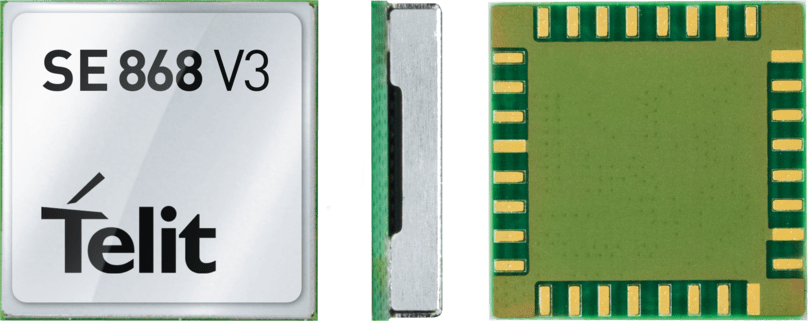

SE868-V3
The SE868 V3 multi-constellation positioning system combines GPS, GLONASS, Beidou, Galileo, and SBAS, providing a high performance position reporting and navigation solution. The module navigates to -162 dBm and tracks to -166 dBm, providing improved performance in harsh environments.
Designed to simplify integration, the module is pin-to-pin compatible with the legacy SE868 V2 and JF2 models. For mission critical applications that demand reliable performance from, multi-constellation navigation, the SE868V3 delivers GPS and GLONASS or Beidou constellations simultaneously and it is Galileo ready.
Market segments
Consumer
General Purpose
Metering, Timing & Utility
Key Features: GNSS - SE868-V3
- Pin to pin compatible with models JF2 and SE868 V2
- Full GNSS compliance: GPS, Glonass, Galileo and Beidou
- Low power processing core delivers current optimized multi-constellation tracking
- Ultra-sensitive -166 dBm (tracking) RF front-end
- LNA allows use of passive antennas
- Supports ephemeris file injection (A-GPS)
- Satellite Based Augmentation System (SBAS) compliant
- CSR SiRFstarV™ based
Download documents: SE868-V3_Datasheet.pdf

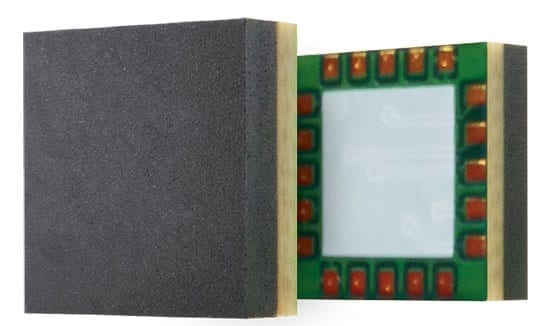

SE873Q5
A tiny 7 x 7 mm form factor, the SE873 family is the ultimate balance of footprint and power consumption with full GNSS support and ease of integration. Outfitted with a MEMS port, the SE873 modules allow developers to easily enhance tracking or battery boosts with additions such as an accelerometer.
Market segments
Wearables
Key Features: SE873 Family
- Small size: 7 x 7 x 1.85 mm
- Flash based for upgrades and customization
- Autonomous and server based A-GNSS
- Advanced power modes: smartGNSS, duty cycle, push-to-fix
- Two variants: Linear power and Low power switching
Download documents: SE873Q5_Datasheet.pdf

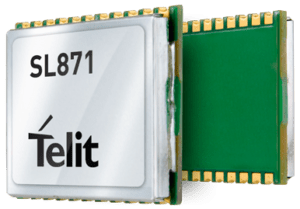

SL871 & SL871L
The SL871 family delivers low power consumption and excellent navigation in the industry standard 10.1 x 9.7mm footprint. An ideal solution for a variety of applications, from weather balloons to dense urban environments, the SL871 family includes AGPS which allows faster time to first fix (TTFF) and longer battery life.
The family concept ensures scalable applications through the GNSS and the GPS variant (SL871-S).
Market segment:
General purpose, Weather balloons
Key Features: SL871 Family
- Industry standard 10.1 x 9.7mm footprint
- AGPS for faster TTFF
- Ultra low-power
- GPS, GLONASS and Beidou; Galileo-ready
- Additional LNA for top level RF sensitivity
- DC Block for direct RF input from active antennas
Download documents: SL871L_Datasheet.pdf

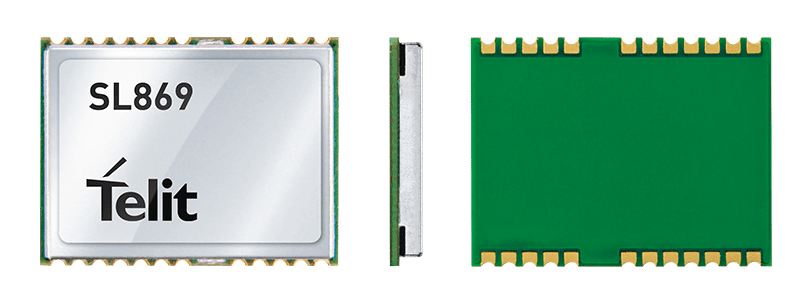

SL869
Leading telematics solutions providers choose Telit SL869 GNSS modules for integration into telematics devices and automotive applications. This turn-key solution includes a powerful SDK for customization and is pin-to-pin compatible with SL869-DR and SL869-3DR for scalable applications.
Experience pure GNSS accuracy in urban canyons and multipath scenarios. Our exceptional field test procedures ensure a design that is optimized to provide exceptional quality of navigation, accuracy, and multipath mitigation.
Market segments
Telematics, Automotive
Key Features: SL869
- 16 x 12.2mm footprint
- Good position accuracy without additional aids
- Highly reliable
- GNSS accuracy
Download documents: SL869_Series_Datasheet.pdf

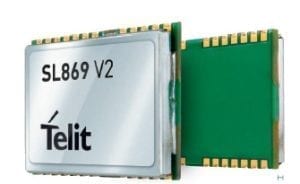

SL869-V2
SL869-V2 delivers industry leading multi-constellation navigation performance combined with low power features best suited for battery powered devices. Available in the industry standard 12.2 x 16 mm footprint, it is pin-to-pin compatible with other models in the xL869 form factor.
The resilient design offers a mix of features which simplify the design process and deliver exceptional, reliable performance. This family is also is also available in GPS-only.
Market segments
General purpose
Weather balloons
Key Features: SL869L-V2 Family
- Accurate navigation in obscure environments, such as urban canyons
- GNSS: GPS, QZSS, Glonass, Galileo, Beidou
- Antenna sense feature for short/open circuit detection
- AGPS for faster Time To First Fix (TTFF)
- Optimized low power consumption
- Switching power supply
- UART
Download documents: SL869_V2_Datasheet.pdf

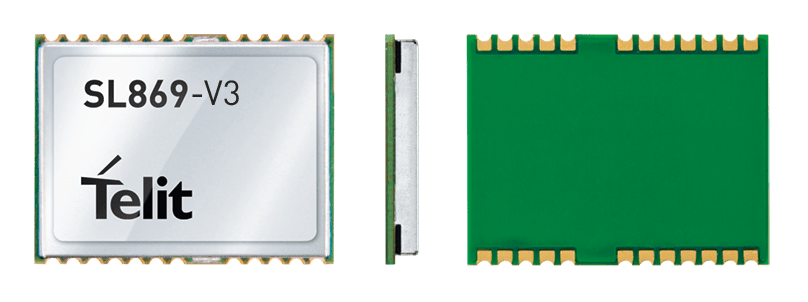

SL869-V3
The SL869-V3 is designed to deliver the best pure GNSS tracking performance, equipped with the ST Microelectronic Teseo III core for exceptional tracking of GPS, Glonass, Beidou and Galileo constellations. Advanced features include external MEMs support, A-GNSS onboard generation, and A-GNSS server-generated file injection.
Developed for ease of integration and development, the SL869-V3 includes a number of communication ports such as UART, I2C and embedded flash memory for firmware upgrades and customization. The SL869-V3 is also pin-to-pin compatible with the SL869 and SL869-V2.
Keep costs down with this solution. The SL869-V3 is equipped with a pure GNSS navigation engine without embedded MEMS enabling customers to scale down the application while keeping the same command interface as the SL869-ADR (automotive dead reckoning).
Market segments
Automotive, Telematics, Metering
Key Features: SL869-V3
- Multi-path GNSS navigation receiver: GPS, Glonass, Galileo and Beidou compatible
- 16 x 12.2 x 2.4 mm LLC package
- Embedded TCXO ensures stable top tier performance over the entire temperature range.
- Assisted GPS
- 10Hz Navigation, SBAS, 1PPS
Download documents: SL869-V3_Datasheet.pdf
SC872-A
Enable GNSS easily with the SC872-A smart module. Equipped with an embedded 20 x 20 mm antenna, the SC872-A is packaged in a 21 x 22 mm double-sided PCB package. This turn-key solution is a fully integrated, top performing plug-and-play system featuring embedded flash memory, integrated LNA, battery backup and a connector.
With this combination of features, the SC872-A ensures 24/7 availability of a reliable time base and top level TTFF performance even if the device has been disconnected from the power supply for a period of time. The embedded connector further simplifies implementation, enabling a quick and easy option for mounting or replacements.
Market segments
General purpose, Telematics
Key Features: SC872-A
- 20x20 mm antenna
- Battery backup for faster TTFF
- Low power processing core delivers current optimized multi-constellation tracking
- Easy setup, install and replace
Download documents: SC872-A_Datasheet.pdf

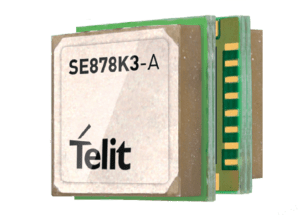

SE878K3-A
The Jupiter SE878K3-A is a plug-and-play multi-constellation receiver with integrated high sensitivity 17 x 17 mm patch antenna, SAW filter, additional LNA, flash memory, GNSS core, RTC and TCXO. It uses Telit’s “cavity like” PCB package with an optimized RF path for standard SMT mounting that does not constrain the host PCB, minimizing the antenna detuning. It supports GPS, QZSS and GLONASS, Beidou and it is Galileo ready.
Market segments
Small tracking devices
Personal trackers and monitors
Telematics
Toll roads
Cellular base stations
Key Features: SE878K3-A
- Standard variant with integrated 17 x 17 x 4mm SMT antenna
- Additional LNA and SAW filter
- SMT mounting not requiring holes on host PCB
- Supports ephemeris file injection (A-GPS)
- Satellite Based Augmentation System (SBAS) compliant
- Embedded RF switch to support external antennas as well
Download documents: SE878K3-A_Datasheet.pdf

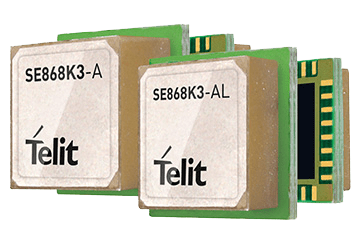

SE868K3-A/AL
The tiny and mighty SE868K3-A/AL is the industry’s smallest multi-constellation GNSS patch antenna module. Designed with an additional Low Noise Amplifier (LNA) and Surface Acoustic Wave (SAW) Filter, these modules deliver best-in-class performance. The combination of advanced features and a low-profile design significantly simplifies integration for space constrained applications by eliminating the need for external components.
Market segments
Wearables
Tracking
Telematics
Security
SE868K3-A and SE868K3-AL
Key Features: SE868K3 Family
- Multi-constellation GNSS core
- Flash memory
- Ultra-compact 11x11 mm "cavity" PCB package
- Standard variant with integrated 9x9x4mm SMT antenna
- Low profile variant with 9x9x2mm antenna
- Additional LNA and SAW filter
- Real Time Clock (RTC) and Temperature Compensated Crystal Oscillator (TCXO)
- Jamming rejection
- Pin-to-pin compatibility with other modules in the series
Download documents: SE868K3-A_AL_Datasheet.pdf

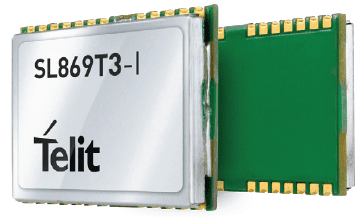

SL869T3-I
The Telit SL869T3-I is the new multi-constellation member of SL869 family of modules.
It is designed to support the Indian NavIC (formerly IRNSS) constellation L5 signal simultaneously with GPS L1 and SBAS.
The SL869T3-I is equipped with special HW and SW to sup-port navigation on L1 and L5 bands. The SL869T3-I can navigate using GPS L1, IRNSS/NavIC L5 and the GAGAN L1 SBAS systems concurrently.
SL869T3-I is provided with single RF input for L1 and L5 bands and multiple communication ports using UART and I2C interface. The embedded flash memory allows onboard AGPS storage, FW upgrades and customization.
Market segments
AIS-140 Tracking applications
Key Features: SL869T3-I
- Concurrent GPS L1 + NAVIC L5 + GAGAN navigation
- SBAS support
- Assisted GPS support (local and server-based)
- 1PPS output
- UART& I2C interfaces
- 16 x 12.2 x 2.4 mm LLC package
- Supply voltage range: 3.0 to 3.6 VDC
Download documents: SL869T3-I_Datasheet.pdf
JF2
The JF2 offers developers and integrators the smallest, completely integrated GPS solution for positioning applications based on a 1.8V supply which is optimized to maintain hot-start conditions with minimal energy. It is fully interoperable with Telit cellular modules for a ready-to-use solution bundle with no additional integration effort or cost. The JF2 can be managed by an external microcontroller or by any of the Telit cellular modules.
Market segments
General purpose, Weather balloons
Key Features: JF2
- 11 x 11 2.6 mm, QFN
- Supports AGPS using Extended Ephemeris injection as well as Extended Ephemeris on-board generation for fastest TTFF
- Easy integration in cellular/GNSS bundle solutions with Telit cellular modules
- GPS solution with embedded Flash: high performance, always up-to-date and lowest BOM cost and footprint
Download documents: JF2_Datasheet.pdf

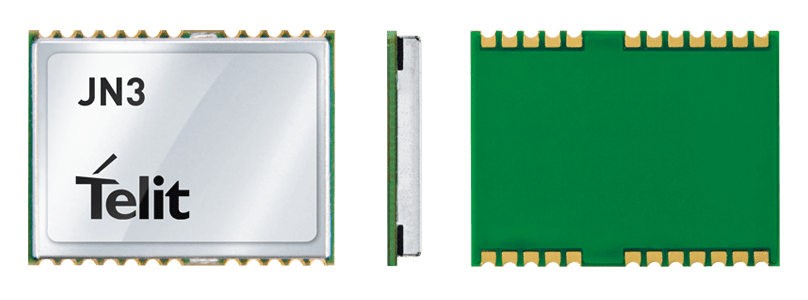

JN3
The JN3 is the companion module to the JF2 with based on a 3V power supply which is optimized to maintain hot-start conditions with minimal energy. Best suited for projects that demand quick and easy development, the JN3 is interoperable with Telit’s cellular modules, such as the sub-compact GL865 cellular family, providing ready-to-use solution bundles at no additional integration effort or cost.
For cost-sensitive designs with varying requirements, the JN3 is pin-to-pin compatible with the GNSS SL869 allowing customers to dial in their desired GNSS capabilities with low-end (GPS only) and high-end (GPS+Glonass+Galileo +QZSS) variants using the same Motherboard.
Market segments
General purpose, Weather balloons
Key Features: JN3
- 16 x 12.2 x 2.4 mm, LCC
- LCC package for manual soldering/rework
- Supports AGPS using Extended Ephemeris injection as well as Extended Ephemeris on-board generation for fastest TTFF
- Easy integration in cellular/GNSS bundle solutions combined with Telit cellular modules
Download documents: JN3_Datasheet.pdf
SL871-S
The compact SL871-S supports both GPS and QZSS constellations and is pin-to-pin compatible with its GNSS companion, the SL871. Developers can take advantage of features such as an ARM7 baseband processor, embedded ROM and integrated LNA. It delivers positioning data via standard UART and an ultra-sensitive RF front-end which enables superior navigation performance in challenging environments with poor sky visibility.
Market segments
General purpose
Metering
Weather balloons
SL871-S
-165 dBm (tracking) RF front end
Key Features: SL871-S & SL871L-S
- Industry standard 10.1 x 9.7mm footprint
- Compliant with GPS and QZSS standards
- A-GPS ephemeris file injection
- Ultra low-power
Download documents: SL871-S.pdf
SL869-V2S
The SL869-V2S family is the GPS variant in the SL869 family. It is best suited for cost constrained applications that demand low power. Navigation supporting GPS and QZSS constellations combined with features that ease the development process offer developers a simpler approach to the integration of positioning technology. With the SL869-V2S, geo-location data is delivered using NMEA protocol through a standard UART port. It supports ephemeris file injection (A-GPS) as well as Satellite Based Augmentation System (SBAS) for increased position accuracy. A ROM-based module family, the SL869-V2S includes an onboard software engine that is able to locally predict ephemeris three days in advance starting from ephemeris data broadcast by GNSS satellites, received by the module and stored in the host flash memory.
The SL869-V2S models can easily replace the Telit GNSS modules JN3, SL869 or SL869 V2 — allowing customers to design once and interchangeably mount the appropriate solution depending on the required features. As part of Telit’s GNSS unified form-factor family, customers choose which GNSS technologies and feature sets is right for their project.
Market segments
General purpose, Metering
SL869-V2S
UART
AGPS (1-day) for faster TTFF
Key Features: SL869L-V2S Family
- 16 x 12.2 mm, 24-pad, LCC package
- GPS, QZSS compliant
- AGPS (1-day) for faster TTFF
- Very low power consumption
Download documents: SL869_V2S_Datasheet.pdf

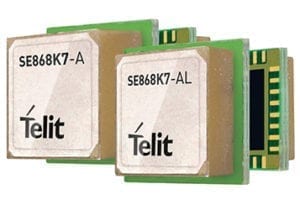

SE868K7-A/AL
The tiny and mighty SE868K7-A/AL is the industry’s smallest GPS patch antenna module. Designed with an additional Low Noise Amplifier (LNA) and Surface Acoustic Wave (SAW) Filter, these modules deliver best-in-class performance. The combination of advanced features and a low-profile design significantly simplifies integration for space constrained applications by eliminating the need for external components.
Market segments
Wearables
Tracking
Telematics
Security
Key Features: SE868K7-A/AL
- Ultra-compact 11x11 mm "cavity" PCB package
- Standard variant with integrated 9x9x4 mm SMT antenna
- Low profile variant with 9x9x2 mm antenna
- GPS core
- ROM memory
- Multiple interfaces
- Additional LNA and SAW filter
- Real Time Clock (RTC) and Temperature Compensated Crystal Oscillator (TCXO)
- Jamming rejection
Download documents: SE868K7-A_AL_Datasheet.pdf

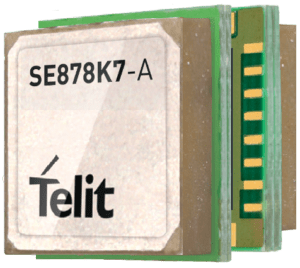

SE878K7-A
The Jupiter SE878K7-A is a plug-and-play GPS receiver with integrated high sensitivity 17 x 17 mm patch antenna, SAW filter, additional LNA, flash memory, GNSS core, RTC and TCXO. It uses Telit’s “cavity like” PCB package with an optimized RF path for standard SMT mounting that does not constrain the host PCB, minimizing the antenna detuning. It supports GPS, QZSS as well as SBAS augmentation.
The SE878K7-A series provides the positioning data though standard UART. Its onboard A-GPS software engine is able to locally predict ephemeris up to 1 day in advance and store this data in the BBRAM.
Market segments
Small tracking devices
Personal trackers and monitors
Telematics
Toll roads
Cellular base stations
Key Features: SE878K7-A
- Standard variant with integrated 17 x 17 x 4mm SMT antenna
- Additional LNA and SAW filter
- SMT mounting not requiring holes on host PCB
- Supports ephemeris file injection (A-GPS)
- Satellite Based Augmentation System (SBAS) compliant
- Embedded RF switch to support external antennas as well
Download documents: SE878K7-A_Datasheet.pdf

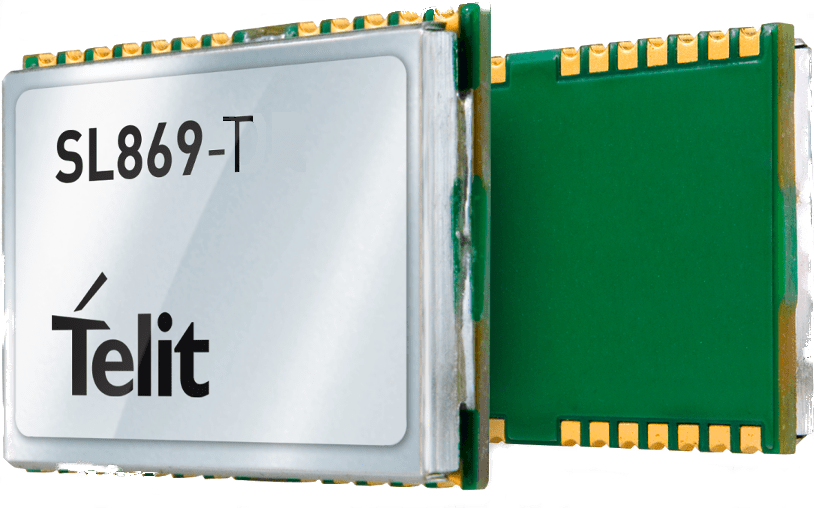

SL869-T
SL869-T provides Precise Positioning Service (PPS) accuracy up to 20ns. It has the TRAIM algorithm embedded which enables the solution to “scrap” satellites providing the wrong timing information. SL869-T efficiently starts output of a reliable PPS with only two satellites and can reliably maintain accurate PPS even when only one satellite is in view.
Market segment
Timing
Key Features: SL869-T
- 16 x 12.2 x 2.4 mm LLC package
- PPS accuracy up to 20ns
- Turn-key solution
- TRAIM algorithm embedded
- Cable delay compensation
- Multiple interfaces
Download documents: SL869-T.pdf

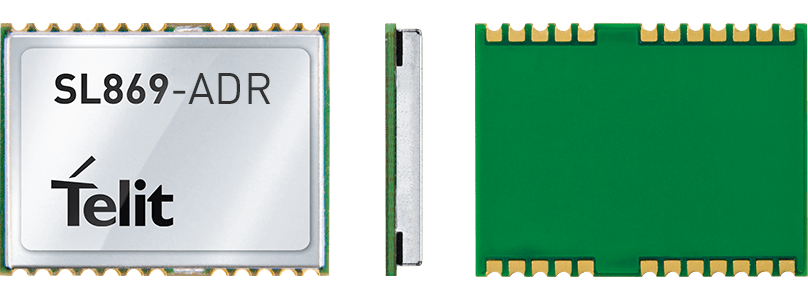

SL869-ADR
Leading telematics solutions providers choose Telit SL869 GNSS modules for integration into telematics devices and automotive applications. The SL869-ADR is a powerful, automotive grade GNSS system equipped with Automotive Dead Reckoning software, embedded 6-axis sensor MEMS and a powerful core. Whenever GNSS coverage is missing or compromised, the SL869-ADR receiver provides the host application with accurate estimates of a vehicle’s or moving device’s position and velocity by combining speed and heading data coming from internal sensors into with Odometer data coming from the car.
Dead Reckoning boosts the accuracy in areas with adverse GNSS conditions like urban canyons, tunnels, parking garages, etc. When GNSS coverage is lost, the Dead Reckoning software fills in the gaps.
With the SL869-ADR, enable gap-free navigation and multi-constellation GNSS with GPS, Glonass, Beidou and Galileo alongside A-GNSS onboard generation and server-generated file injection.
This turn-key solution includes a powerful SDK for customization and is pin-to-pin compatible with SL869-DR and SL869-3DR for scalable applications .
Market segments
Automotive
Telematics
Aftermarket
Fleet Tracking
Key Features: SL869-ADR
- 16 x 12.2 x 2.4 mm LLC package
- GPS, GLONASS, Galileo, and Beidou
- Supply voltage range: 3 - 3.6 VDC
- 6-axis embedded MEMS sensor
- Assisted GPS
- 10Hz Navigation, SBAS, 1PPS
- UART, I2C
- Wheel tick (Odo) input
- Reverse Input
Download documents: SL869-ADR_Datasheet.pdf
