Wi-Fi and Bluetooth

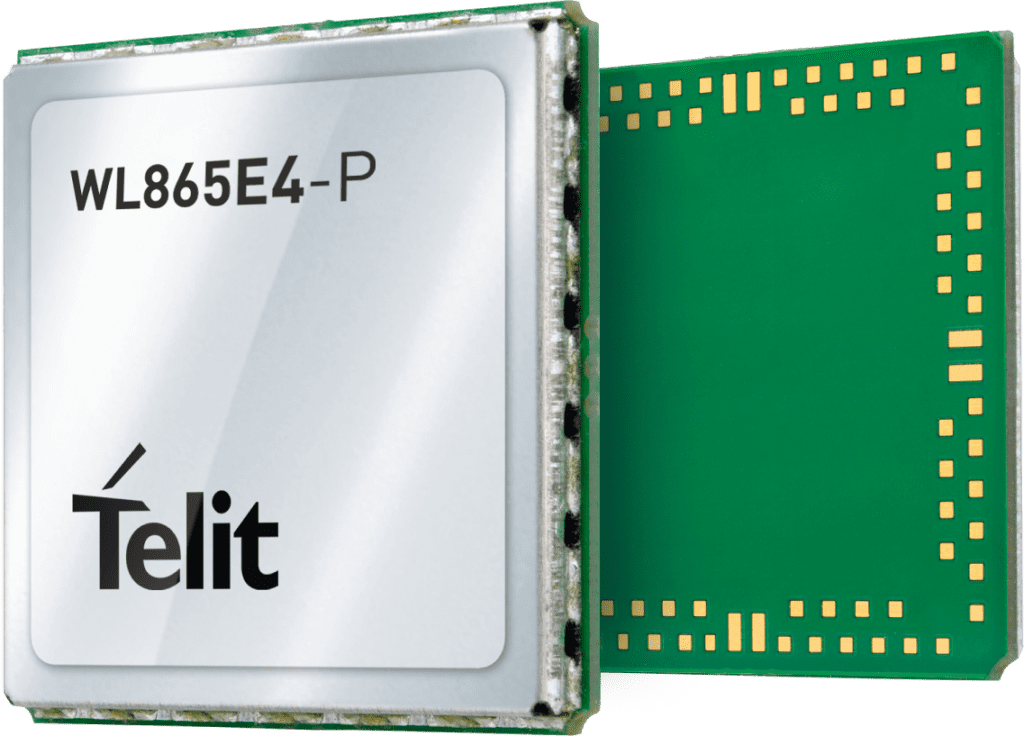

WL865E4-P

The WL865E4-P is a fully integrated dual band, dual mode, combo Wi-Fi (802.11 a/b/g/n) / Bluetooth Low Energy (BLE) 5.0 module, that provides an easy, cost-effective way for manufacturers to add wireless connectivity to their products. The module is based on an integrated tri-core system-on-chip, with dedicated CPU’s for IoT application, Wi-Fi and BLE. The IoT application processor runs on ARM Cortex-M4F @128 MHz with 300KB of dedicated SRAM. Module also integrates 4MB of internal flash with wide array of peripherals (SDIO, SPI, UART, ADC, PWM, GPIO, I2S, I2C, USB-for manufacturing only).

Key Features: WL865E4-P

  • Dual band (2.4GHz/5GHz) Wi-Fi module for high bandwidth IoT applications.
  • Bluetooth Low Energy (BLE5) qualified for easy sensor integration, configuration (provisioning), management and diagnostics.
  • Low Power consumption
  • Dedicated CPU (Cortex-M4) for IoT application.
  • Wide range of peripherals
  • Advanced security features with integrated crypto hardware
  • Ease of system integration
  • Industrial grade temperature range
  • Certified Modules reduces development time, testing and certification, accelerating time to market.

Download documents: WL865E4-P_Datasheet-1.pdf

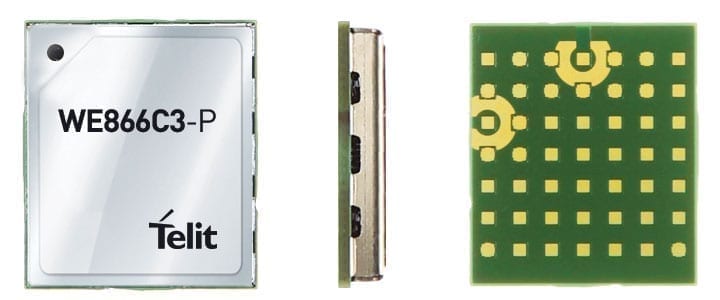

WE866C3-P

The WE866C3-P is a low power, dual-band (2.4 & 5GHz), 1-stream (1x1) 802.11ac Wi-Fi and Bluetooth (BT/BLE-4.2) module with an extremely small footprint that provides an easy & cost-effective way for manufacturers to add wireless connectivity to their products. With the integrated LTE-WiFi/BLE coexistence filter, the product offers a powerful cellular backhaul with Telit's LE910Cx 4G LTE module family.

WE866C3-P also offers a high bandwidth Wi-Fi/BLE transceiver solution for Linux & Android* powered IoT systems, using the advanced 802.11ac technology.

Key Features: WE866C3-P

  • xE866 Telit form-factor, Wi-Fi/BLE companion device for LE910Cx (4G LTE) module family
  • High Bandwidth Wi-Fi/BLE transceiver module for Linux & Android* based IoT system
  • Bluetooth 4.2 with Low energy (LE) support
  • Integrated LTE-WiFi/BLE coexistence filter
  • Pre-Certified for FCC, IC, CE, Wi-Fi, BT
  • Single antenna for Wi-Fi and BLE
  • Industrial grade temperature range

Download documents: WE866C3-P_Datasheet1.pdf

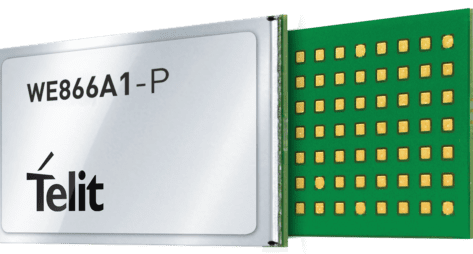

WE866A1-P

Integrating Wi-Fi™ to your IoT solution is simplified with the use of our pre-certified Wi-Fi module, WE866A1-P. The module’s small footprint and rich features make it perfect for network applications such as smart energy, sensor networks, home automation, and nearly any other application that benefits from Wi-Fi support.

This add-on WLAN (IEEE 802.11 b/g/n) module provides a secure, powerful solution for customers looking for a simple and fast way to embed local area communication to Wi-Fi standards with cellular backhaul to powered by our xE910 line of 2G, 3G, LTE modules.

Key Features: WE866A1-P

  • xE866 Telit Form Factor
  • Pre-Certified: CE/FCC/IC/Wi-Fi
  • Low Power with power management features: 3.1V - 4.5V, 3.8V nominal

Download documents: WE866A1-P_Datasheet.pdf

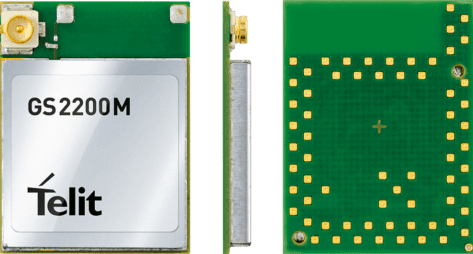

GS2200MIE & GS2200MIZ

Tiny and mighty, the GS2200M series is a fully integrated secure Wi-Fi (IEEE 802.11 b/g/n) module with an extremely small footprint and ultra-low-power consumption. Designed to simplify the integration of Wi-Fi connectivity into product designs, the series is available with multiple interfaces and an optional integrated chip antenna or U.FL connector.

Intelligent design makes the GS2200M series ideal for various applications and environments, including smart energy and measurement, smart home, healthcare and fitness, industrial controls, commercial building automation, and audio/video consumer electronics.

Key Features: GS2200

  • Host-less mode (no external MCU), running full Wi-Fi and TCP/IP networking stack, eliminates need for external components
  • Hosted mode, most comprehensive AT command library connecting to any 8/16/32-bit host microcontroller using UART, SPI or SDIO interfaces
  • Compact for size-constrained applications: 13.5 x 17.85 x 2.1 mm 66 Pins
  • Easy smartphone provisioning with Limited AP or Wi-Fi Protected Set-up (WPS) for a seamless user experience
  • Ultra-low-power through dynamic power management modes and optional off module DC to DC components

Download documents: GS2200M_Datasheet.pdf

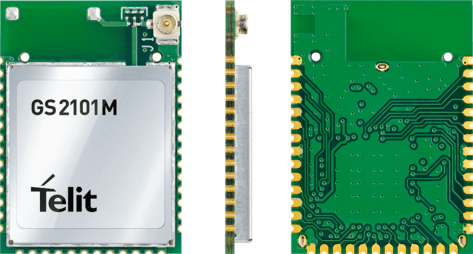

GS2101MIE & GS2101MIP

The GS2101M series is a fully certified and secure Wi-Fi (IEEE 802.11 b/g/n) module that delivers quick, cost-effective integration of Wi-Fi connectivity into product designs. The series is available with an optional onboard PCB trace antenna or U.FL connector.

Intelligent design and ultra-low-power consumption made possible with proprietary power management features make the GS2101M series ideal for various applications and environments, including smart energy, sensors, smart home, healthcare and fitness, industrial controls, commercial building automation, and consumer electronics.

Key Features: GS2101 Series

  • 3 x 16 bit sigma-delta ADCs ideal for smart energy and measurement devices
  • 18 x 25 x 2.7 mm 40 Pins
  • Single-sided castellation
  • High resolution sensing and energy measurement
  • Host-less mode (no external MCU), running full Wi-Fi and TCP/IP networking stack
  • Hosted mode, most comprehensive AT command library connecting to any 8/16/32-bit host microcontroller using UART, SPI or SDIO interfaces
  • Easy smartphone provisioning with Limited AP or Wi-Fi Protected Set-up (WPS)
  • Low Power with power management features: 2.7V - 3.6V, 3.3V nominal

Download documents: GS2101M_Datasheet.pdf
