D-Subs

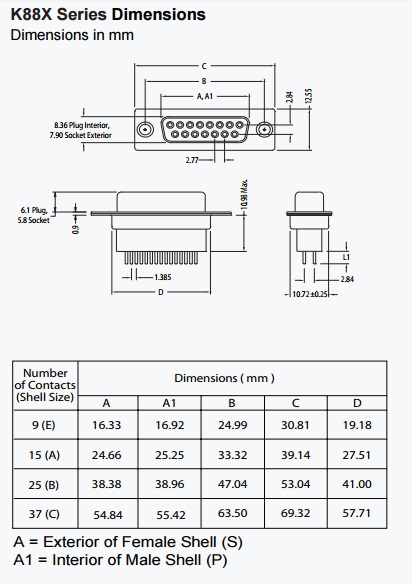

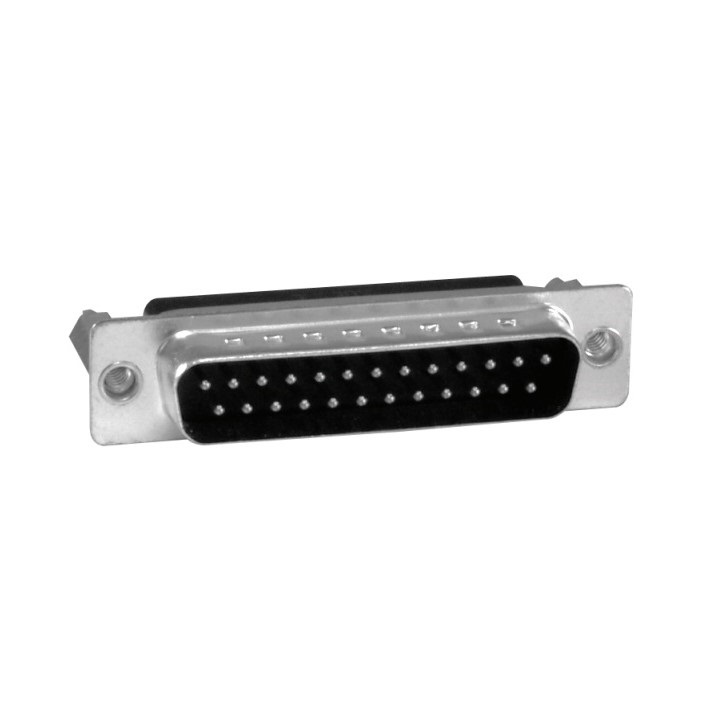

K88X

D-SUBMINIATURE CONNECTORS:
K88X Series
Vertical PCB Mount High Profile

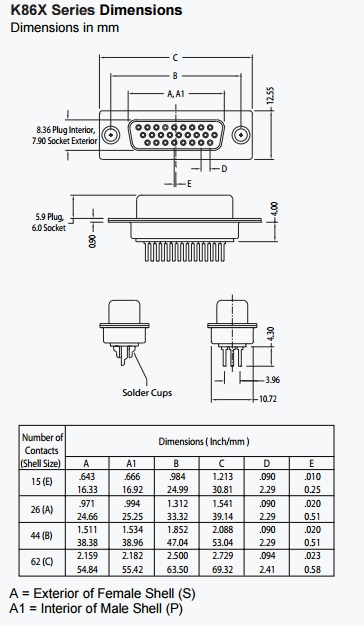

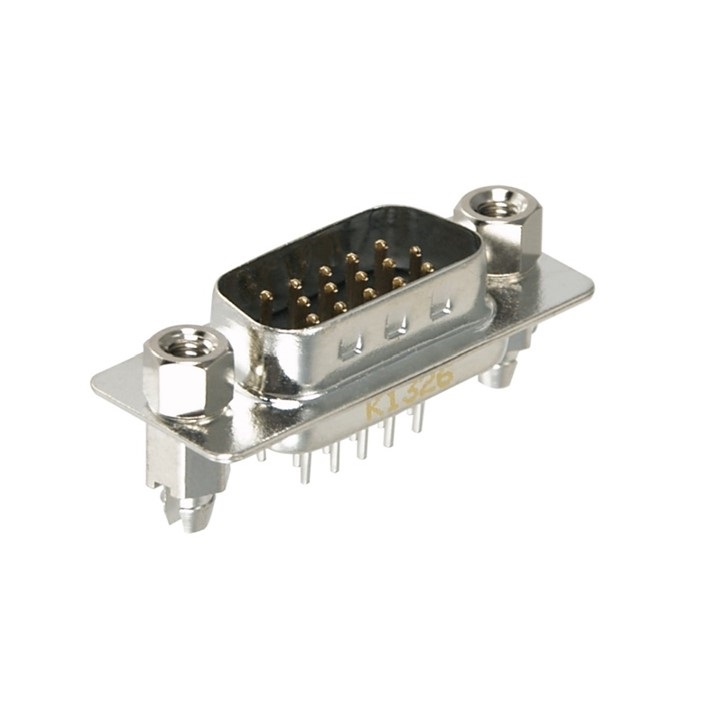

K86X

D-SUBMINIATURE CONNECTORS:
K86X Series
High Density Vertical PCB Mount and Solder Cup

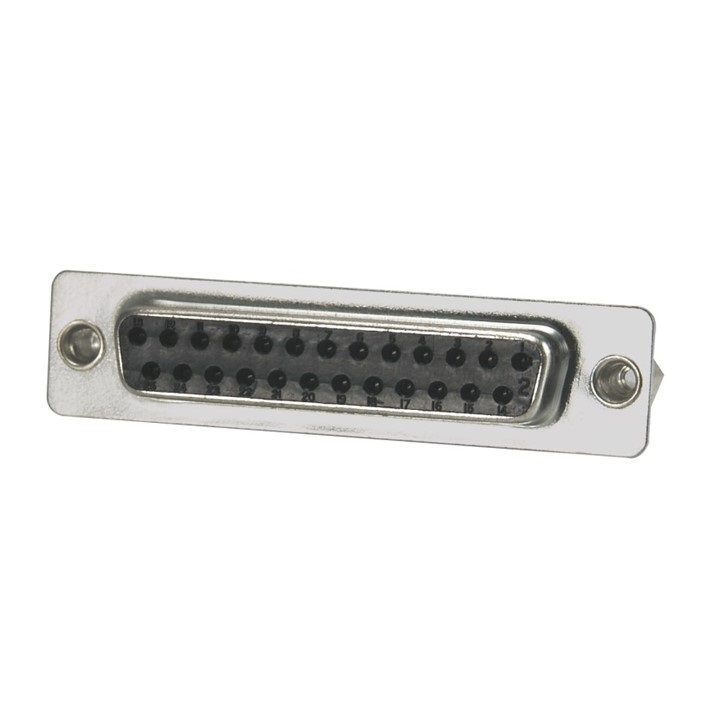

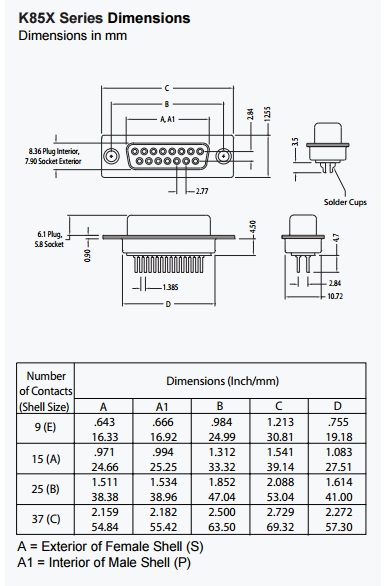

K85X

D-SUBMINIATURE CONNECTORS:
K85X Series
Vertical PCB Mount and Solder Cup

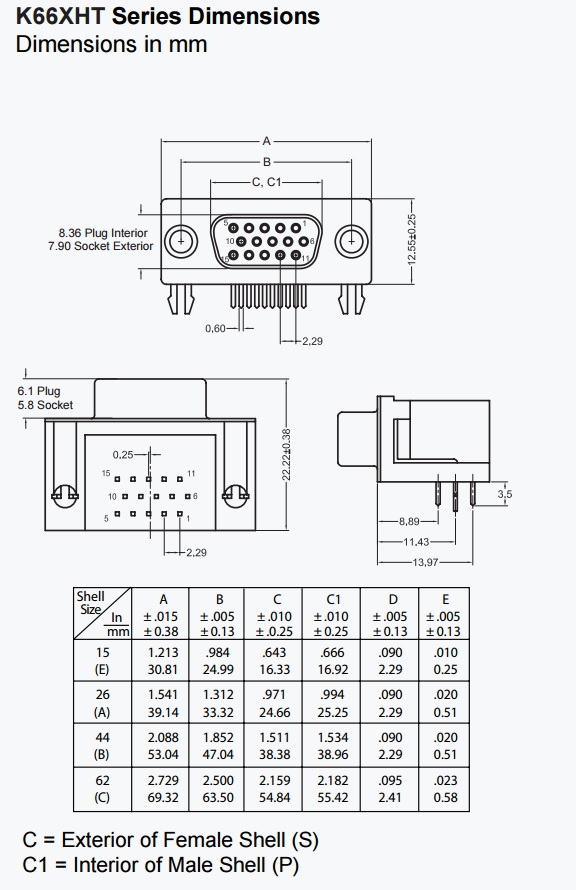

K66XHT

D-SUBMINIATURE CONNECTORS:
K66XHT Series
High Temperature Right Angle PCB Mount

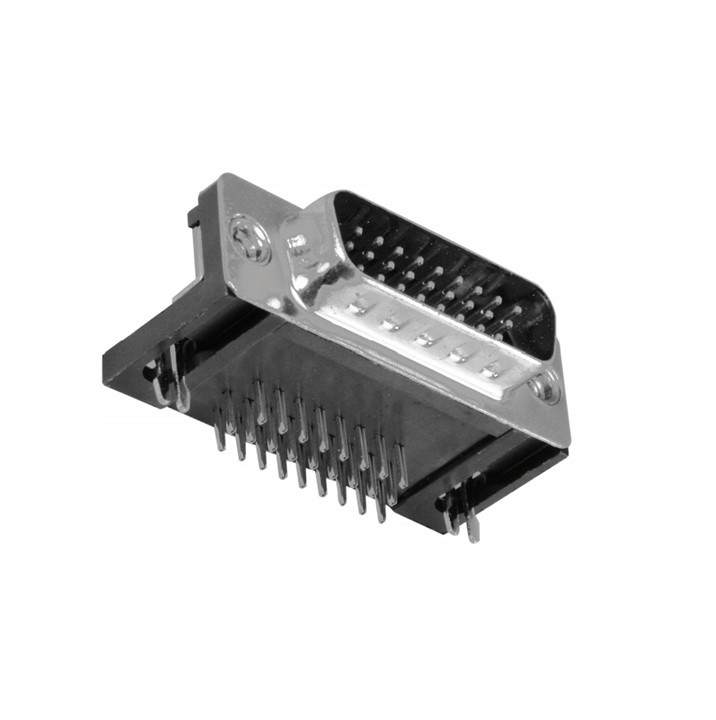

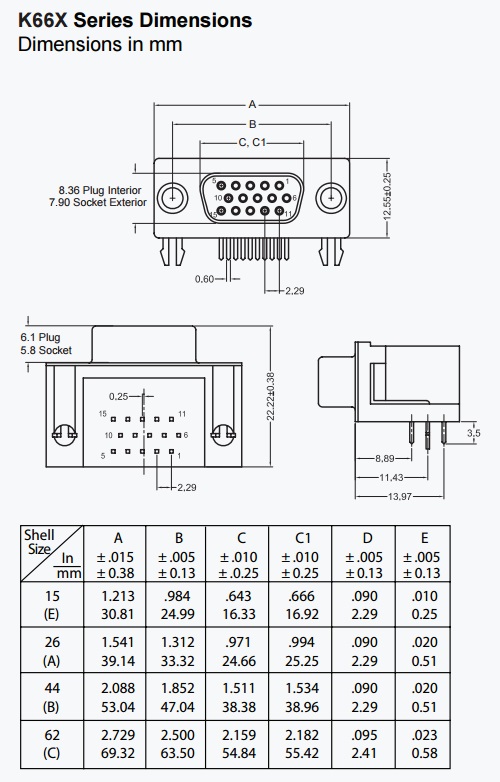

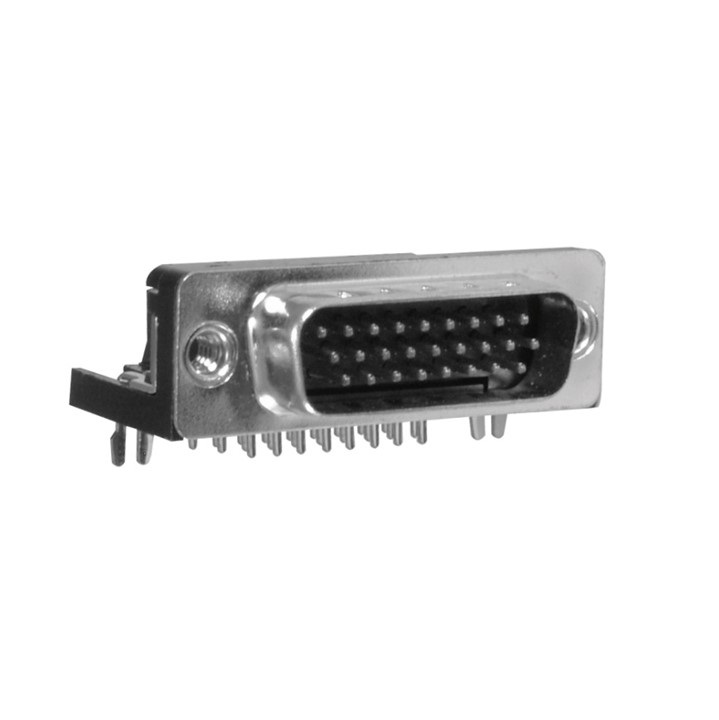

K66X

D-SUBMINIATURE CONNECTORS:
K66X Series
Right Angle PCB Mount

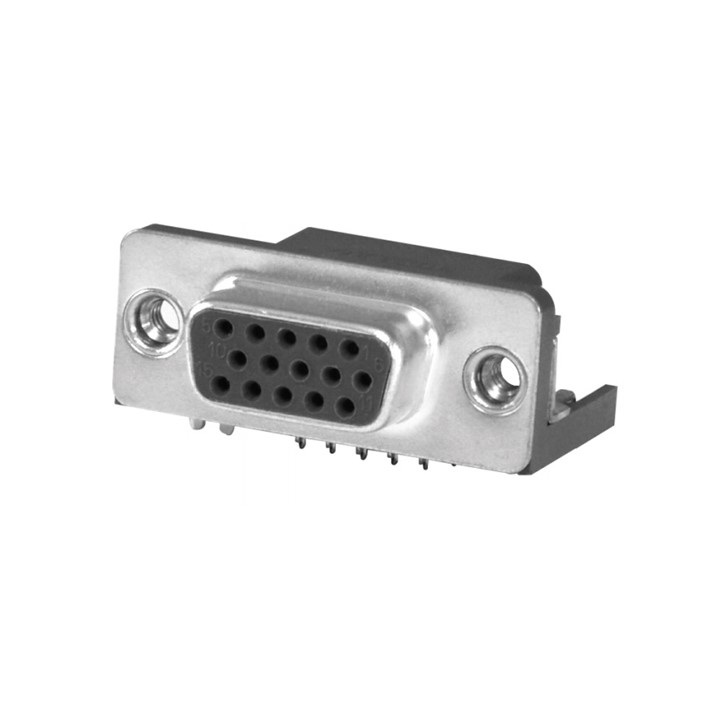

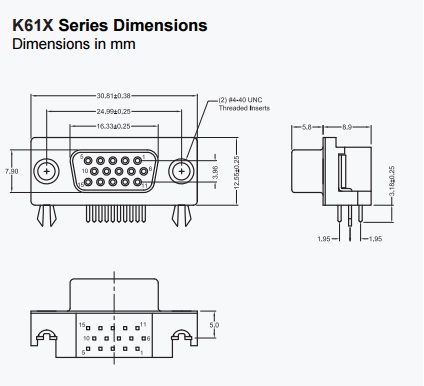

K61X

D-SUBMINIATURE CONNECTORS:
K61X Series
High Density Right Angle PCB Mount Compact Footprint



Product Features:

15 Pin High Density D-Subminiature Receptacle, Right Angle
PCB Termination, Compact Footprint
Available in Reflow Compatible, High Temperature Plastic



VESA Features:

Contact #9 Recessed 0.050" (1.27mm) to
Allow Last Mate/First Break on 5V Supply Voltage
Blue PBT Insulator Signifies 5V Capability and Full Feature
AccessBus Capability in Accordance with Video Electronics
Standard Association (VESA)
Meets Display Data Channel (DDC) Standard

K42X HD COMBO

D-SUBMINIATURE CONNECTORS:
K42X Series

High Density Dual-Port D-Sub Combo

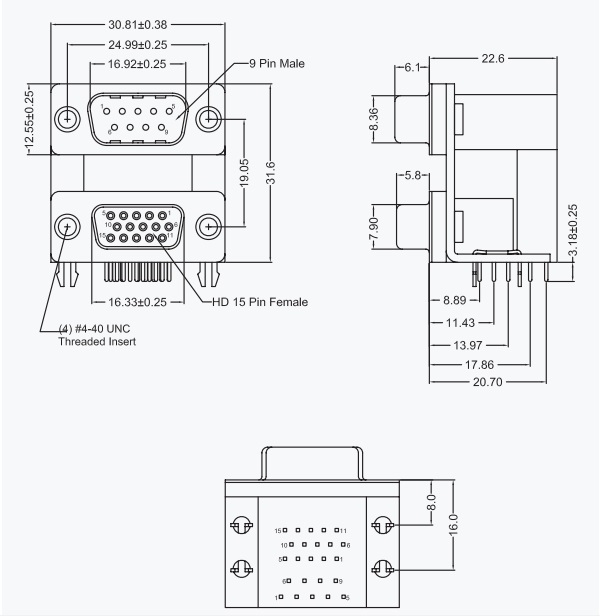

 K42X-E9P/E15S-A4N Dimensions
Dimensions in mm

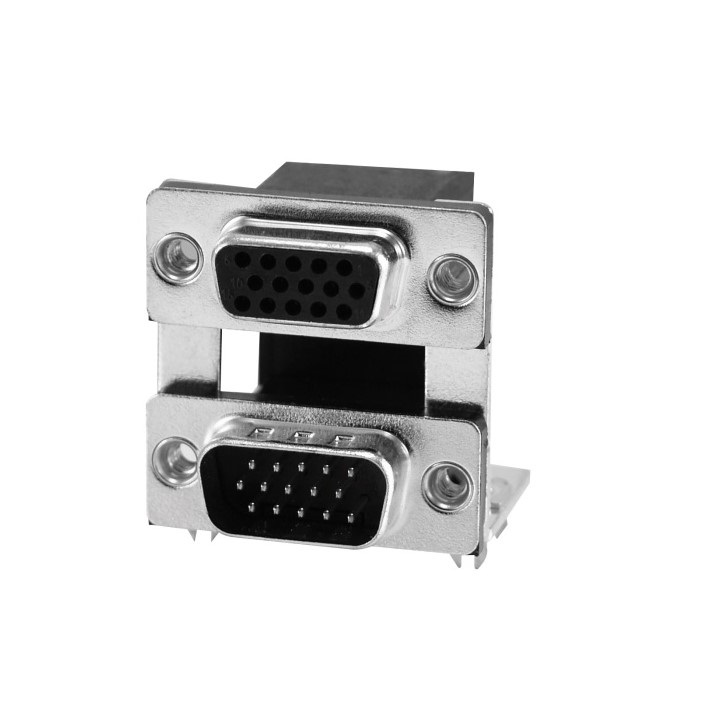

K42X HIGH DENSITY

D-SUBMINIATURE CONNECTORS:
K42X Series
High Density Dual-Port D-Sub
Dimensions in mm
K42X Series Dimen

K42X

D-SUBMINIATURE CONNECTORS:
K42X Series
Dual-Port D-Sub
Dimensions in mm

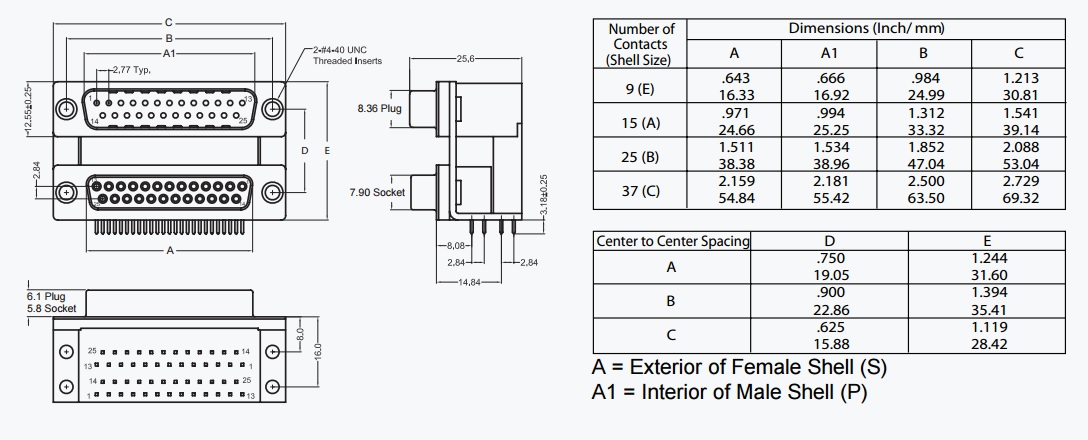

K42X Series Dimensions

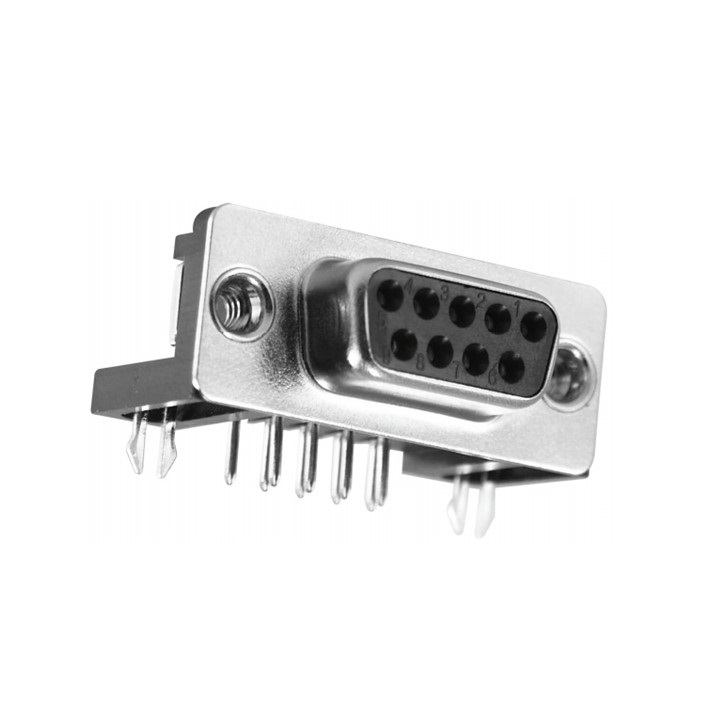

K22XHT

D-SUBMINIATURE CONNECTORS:
K22XHT Series
High Temp. Right Angle PCB Mount 0.318" Footprint

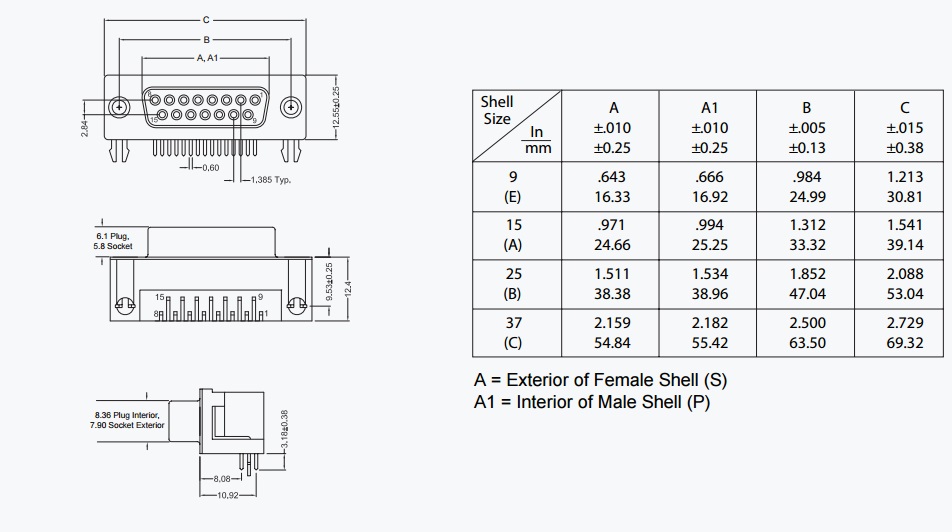

K22XHT Series Dimensions
Dimensions in mm

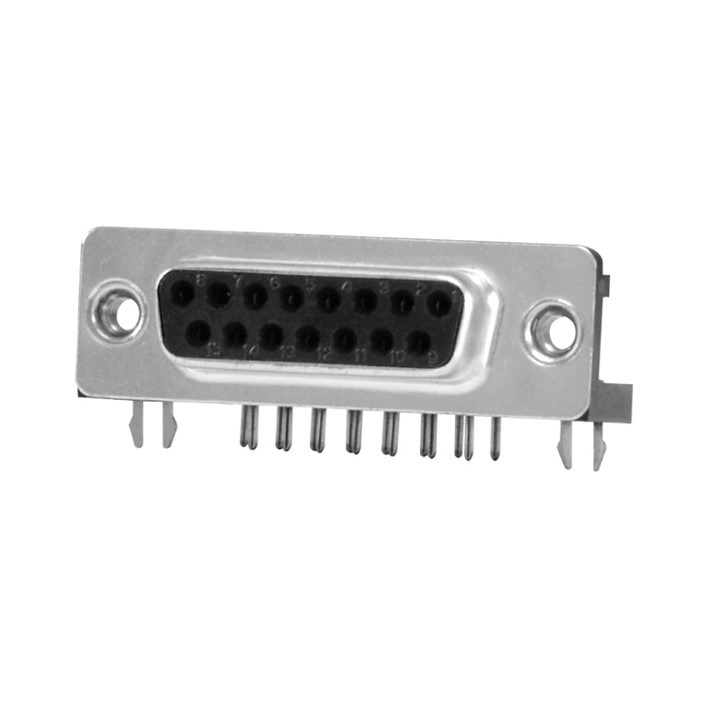

K22X

D-SUBMINIATURE CONNECTORS:
K22X Series
Right Angle PCB Mount 0.318 “ Footprint

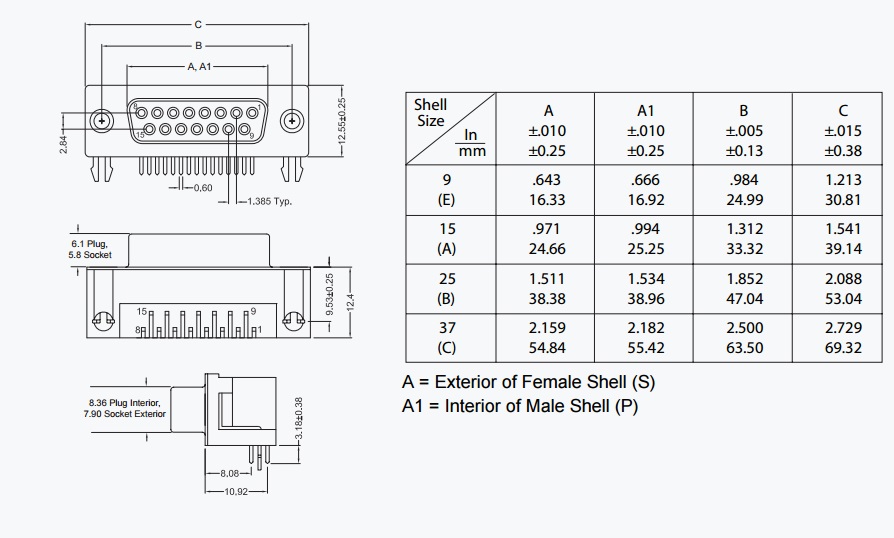

K22X Series Dimensions
Dimensions in mm

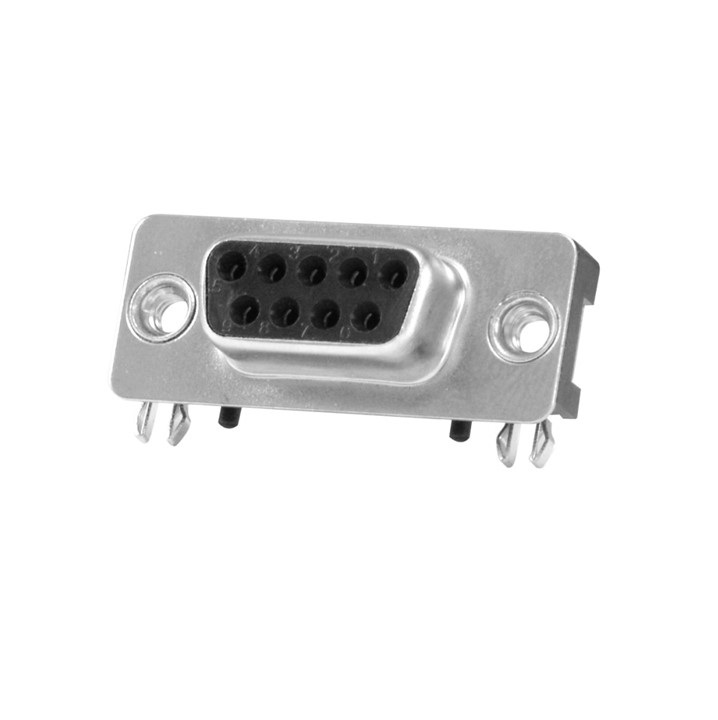

K202XHT

D-SUBMINIATURE CONNECTORS:
K202XHT Series

Right Angle Surface Mount

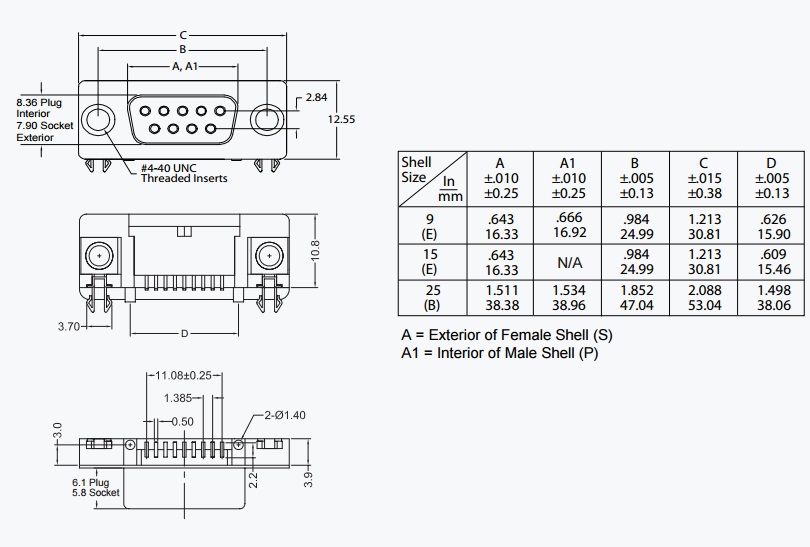

K202XHT Series Dimensions
Dimensions in mm
